MBB Series Standard Cylinder
  • MBB Series Standard Cylinder
Standard Cylinder

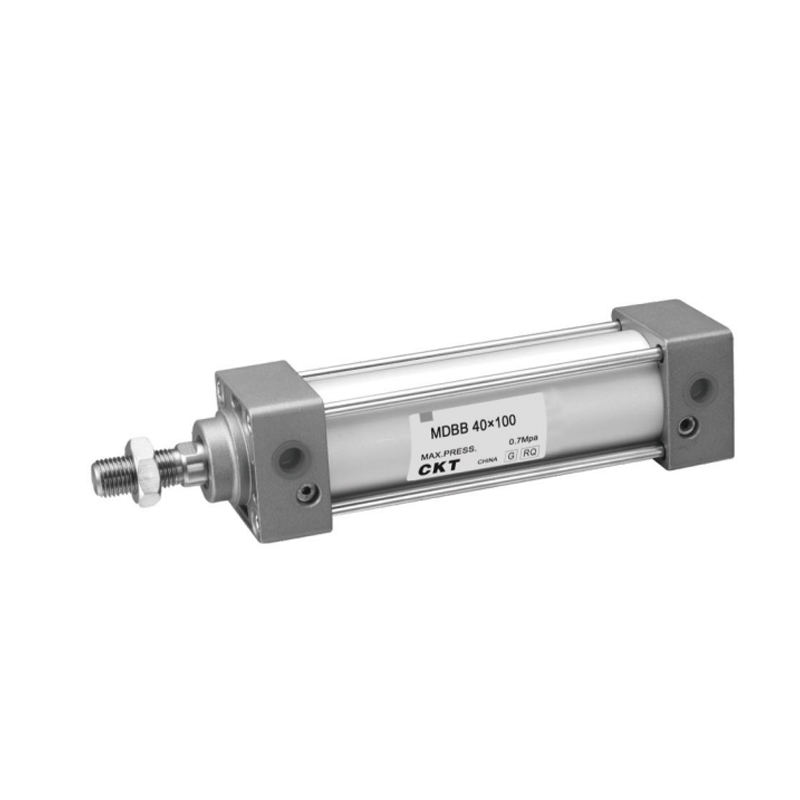

MBB Series Standard Cylinder

1. Piston sigillum peculiarem conformationem bidirectionis obsignationis induit structuram cum magnitudine et oleo repositionis functionis;
2. Est virga cylindrica ligatura, et opercula anterior et posterior connexa ad aluminium tubi cylindrici corporis cum columnis, quae fidem habet bonam;
3. Comparata cum ISO15552 cylindris vexillis, series cylindrorum MBB longitudo cum diametro cylindrico eadem minor est;
4. Cylindrus quiddam temperatio stabile est;
5. Cylindri et cylindrici accessiones institutionum variarum specificationum praesto sunt pro clientibus eligendis;
6. Electio caliditatis repugnantis materiae obsignationis in tuto ponere potest operationem normalem cylindrici sub conditionibus 150℃..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：SU Series Standard Cylindri (No Tie Rod Type)
SUCCESSIVO：SC Series (Tie Rod Type) Standard Cylinder
  • Bore Size (mm) 32 40 50 63 80 100 125
    Actio Duplex agens
    Liquor Aer (percolari per 40μm elementum colum)
    certum

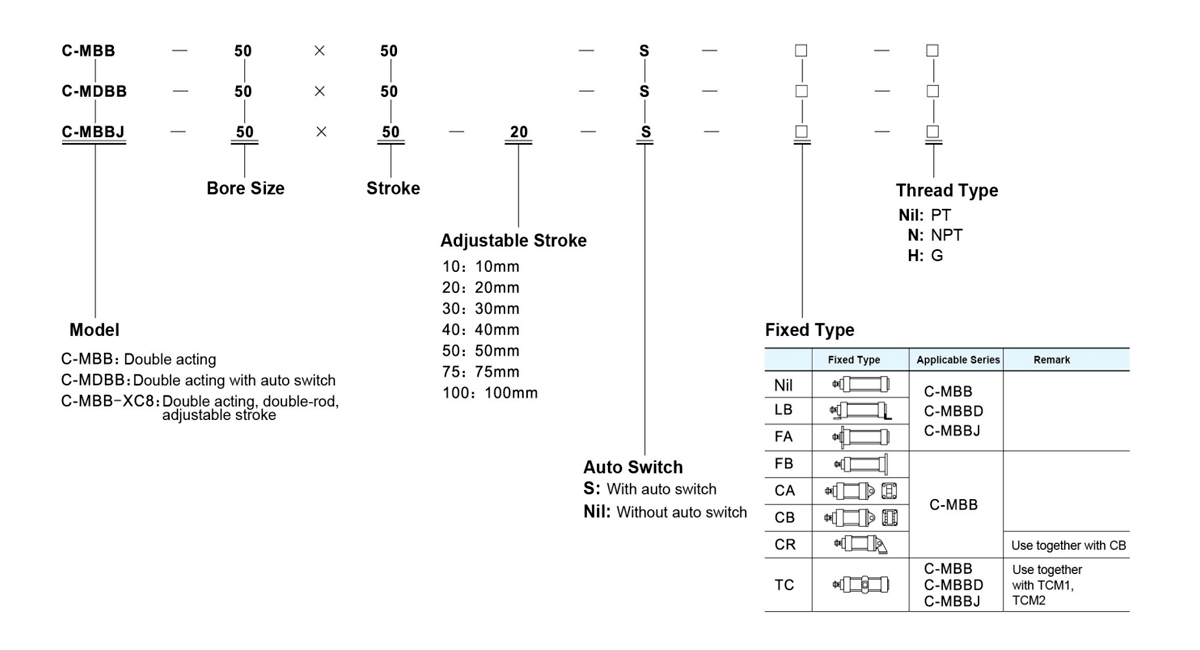

    Type     		C-MBB series Typus fundamentalis FA FB CA CB CR LB TC TCM1 TCM2
    C-MBBD, C-MBBJ series Basic type FA LB TC TCM1 TCM2
    Operans Preessure dolor 0.1~1.0MPa(14~145psi)
    Probatur Pressura 1.5MPa(215psi)
    Temperatus operating (℃) -20~80℃
    Operans Volo dolor (mm/s) 30~800 30~500
    Longitudo plaga tolerantia 0~250 1.0 251~1000 1.4 1001~1500 1.8
    Pulvinar Product pulvinar
    Pulvinar Stroke (mm) 24 32 37.5 40
    *Portus Size PT1/8 PT1/4 PT3/8 PT1/2
    * NPT et G filo genera praesto sunt pro nexu.

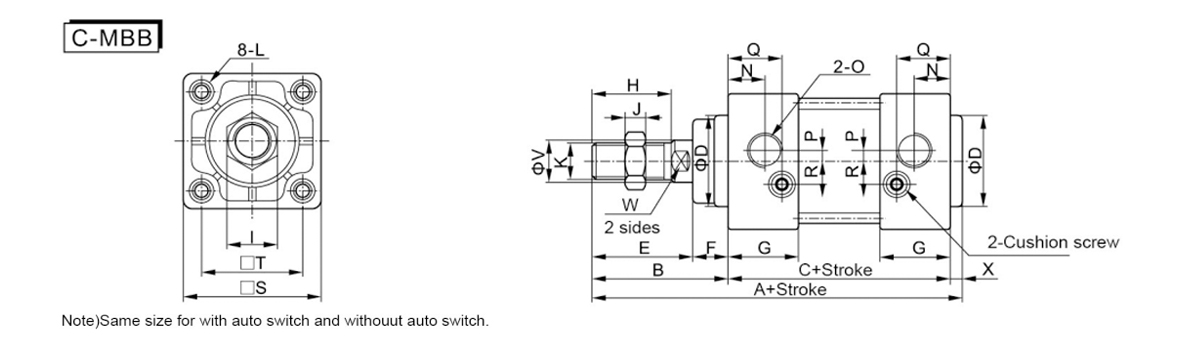

  • Symbol/
    Bore Size     		A B C D E F G H I J K L N O P Q R S T V W X
    32 135 47 84 30 34 13 27 22 17 6 M10×1.25 M6 13 PT1/8 4 20.5 6.5 46 32.5 12 10 4
    40 139 51 84 35 38 13 27 30 19 8 M14×1.5 M6 14 PT1/4 4 20.5 9 52 38 16 14 4
    50 156 58 94 40 44 14 31.5 35 27 11 M18×1.5 M8 15.5 PT1/4 5 23 10.5 65 46.5 20 18 4
    63 156 58 94 45 44 14 30.5 35 27 11 M18×1.5 M8 16.5 PT3/8 9 23 12 75 56.5 20 18 4
    80 190 72 114 45 52 20 38 40 32 13 M22×1.5 M10 19 PT3/8 11.5 26.5 14 95 72 25 22 4
    100 190 72 114 55 52 20 38 40 36 13 M26×1.5 M10 19 PT1/2 17 28.5 15 114 89 30 26 4
    125 223 97 120 60 70 27 38 54 41 13.5 M27×2 M12 19 PT1/2 17 29 15 137 110 32 27 60

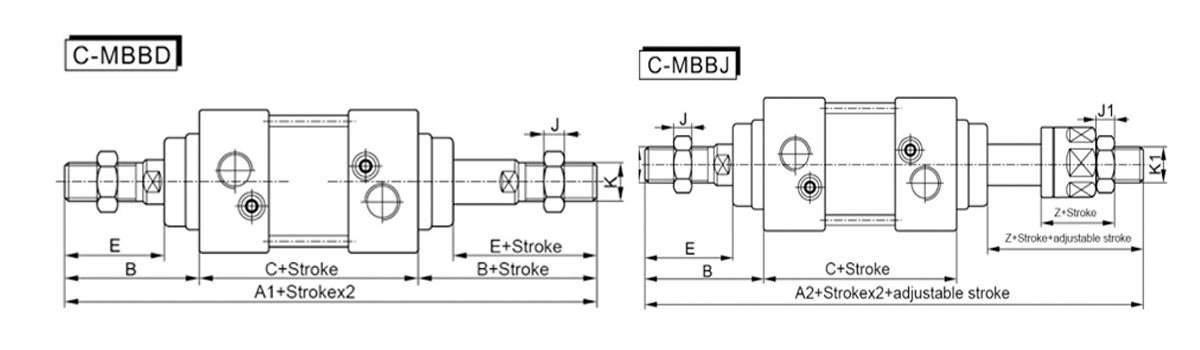

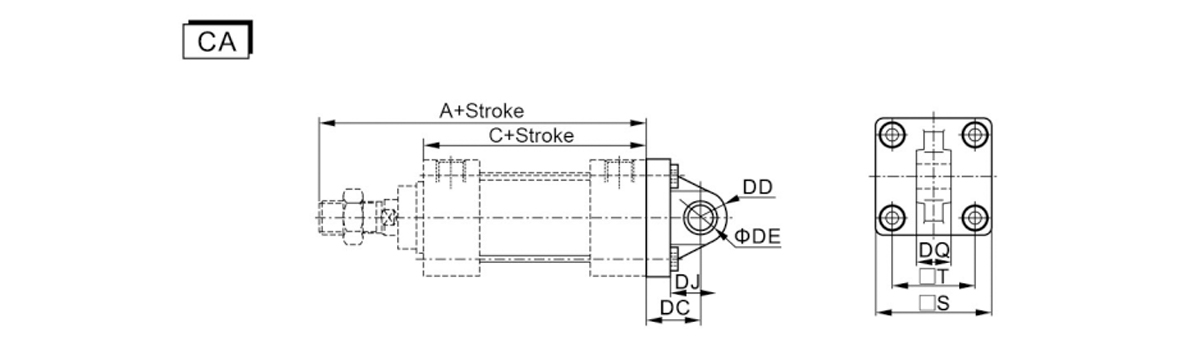

    Symbolum /
    Bore Size     		A1 A2 B C E J J1 Z K K1
    32 178 171 47 84 34 6 6 27 M10×1.25 M10×1.25
    40 186 176 51 84 38 8 7 28 M14×1.5 M12×1.25
    50 210 195 58 94 44 11 8 29 M18×1.5 M16×1.5
    63 210 195 58 94 44 11 8 29 M18×1.5 M16×1.5
    80 258 241.5 72 114 52 13 10 35.5 M22×1.5 M20×1.5
    100 258 248.5 72 114 52 13 13.5 42.5 M26×1.5 M27×2
    125 314 286.5 97 120 70 13.5 13.5 42.5 M27×2 M27×2
    Nota) 1. Eadem amplitudo est cum switch autocineto et sine switch autocineto.
    2. Model non est eadem magnitudo quam C-MBB basic genus

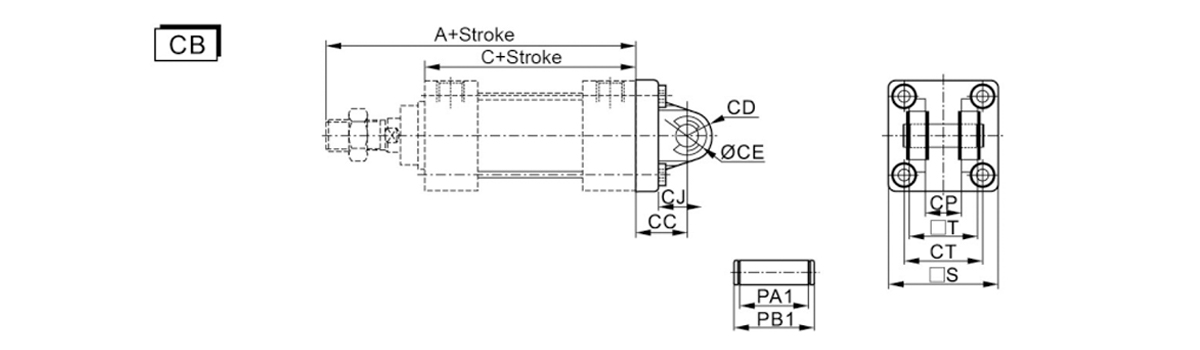

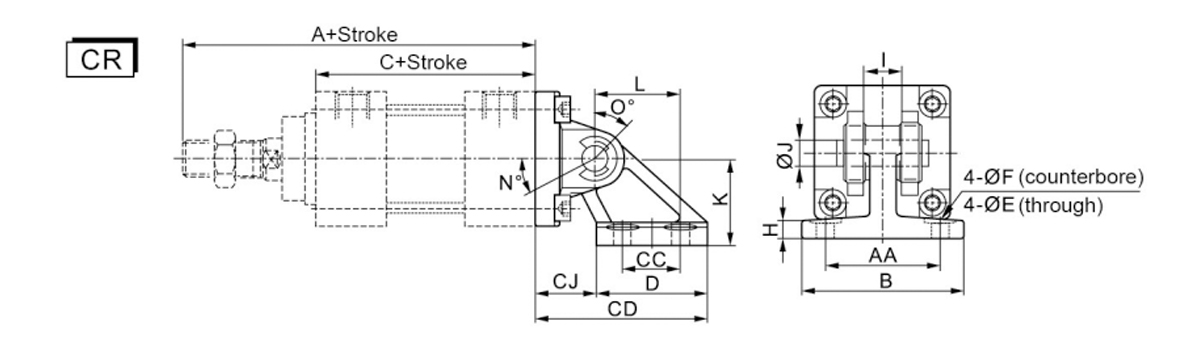

    Symbol/
    Bore Size     		32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    C 84 84 94 94 114 114 120
    S 46 52 65 75 95 114 136
    T 32.5 38 46.5 56.5 72 89 110
    DC 23 23 30 30 42 42 50
    DD 10.5 11 15 15 23 23 28
    DE 10 10 14 14 22 22 25
    DJ 13 13 17 17 27 27 28
    DQ^ 13.8 13.8 19.8 19.8 29.8 29.8 31.8

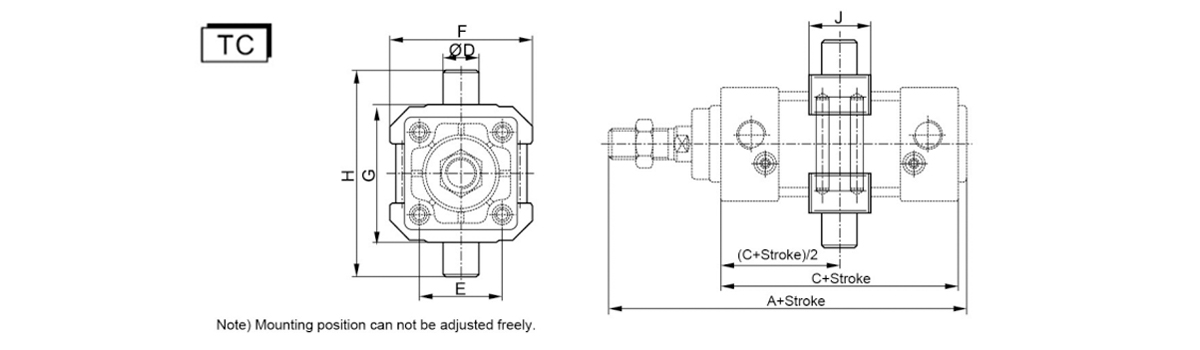

    Symbolum /
    Bore Size     		32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    C 84 84 94 94 114 114 120
    CC 23 23 30 30 42 42 50
    CD 10.5 11 15 15 23 23 28
    CE 10 10 14 14 22 22 25
    CJ 14 14 18 18 27 27 32
    CP 14.2 14.2 20.2 20.2 30.2 30.2 32.2
    CT 32.5 38 46.5 56.5 72 89 110
    PA1 28.8 28.8 40.8 40.8 60.8 60.8 64.8
    PB1 34.6 34.6 47 47 69.2 69.2 73.2
    S 46 52 65 75 95 114 136
    T 28 28 40 40 60 60 64

    Symbolum /
    Bore Size     		32 40 50 63 80 100 125
    A 135 139 156 156 190 190 223
    C 84 84 94 94 114 114 120
    D 12 16 16 20 20 25 25
    E 32.5 38 46.5 56.5 72 89 110
    F 52 65 75 90 112 135 170
    G 50 63 75 90 110 132 160
    H 74 95 107 130 150 182 210
    J 22 28 28 30 32 38 40

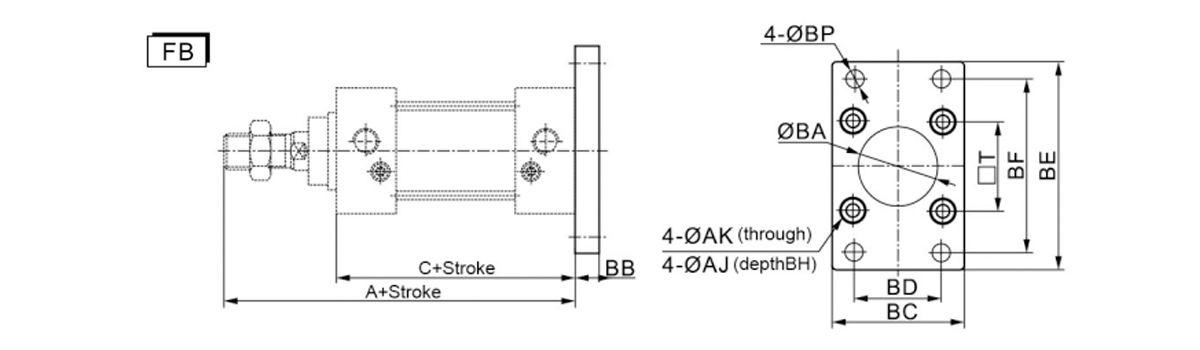

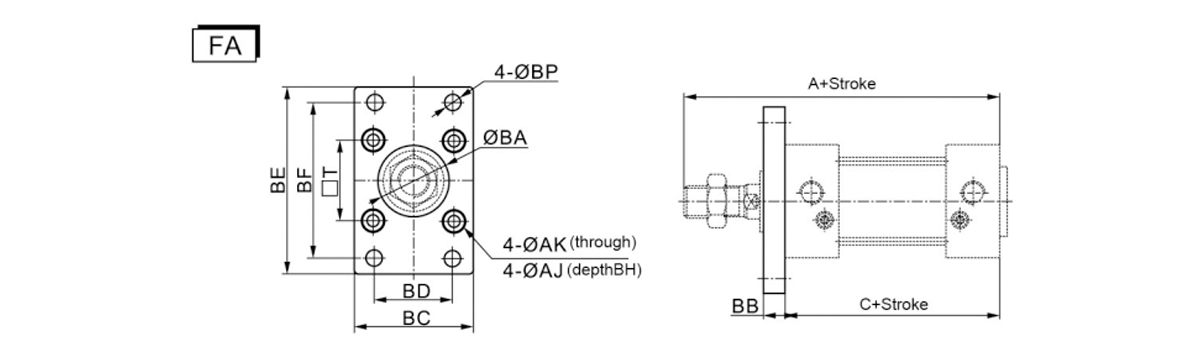

    Symbol/
    Bore Size     		32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    C 84 84 94 94 114 114 120
    AJ 11 11 14 14 17 17 19
    AK 6.5 6.5 9 9 11 11 13
    BA 30.5 35.5 40.5 45.5 45.5 55.5 60.5
    BB 10 10 12 12 16 16 20
    BC 47 53 65 75 95 115 138
    BD 32 36 45 50 63 75 102
    BE 80 90 108 118 150 176 216
    BF 64 72 90 100 126 150 180
    BH 6.5 6.5 8.5 8.5 10.5 10.5 12.5
    BP 7 9 9 9 12.5 14.5 14
    T 32.5 38 46.5 56.5 72 89 110

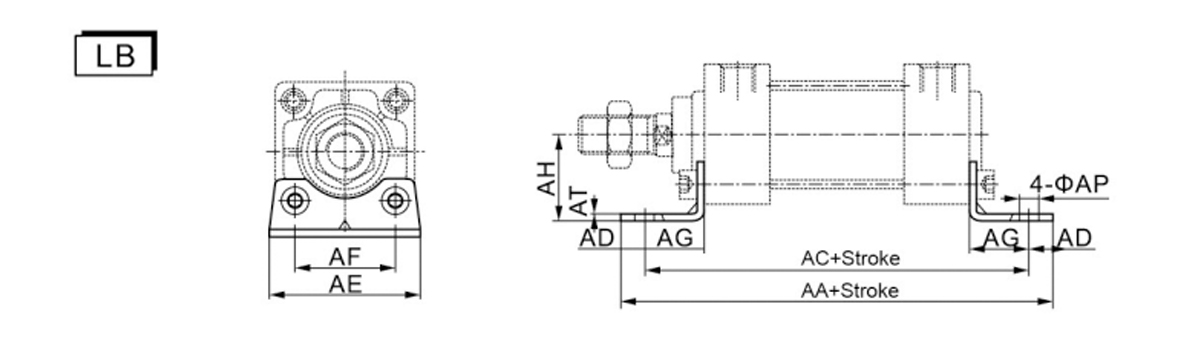

    Symbol/
    Bore Size     		32 40 50 63 80 100 125
    AA 146 154 170 176 202 210 250
    AC 128 132 148 148 174 178 210
    AD 9 11 11 14 14 16 20
    AE* 50 55 70 80 100 120 136
    AF* 32 38 46 56 72 89 90
    AG 22 24 27 27 30 32 45
    AH 30 33 40 45 55 65 81
    AP 7 9 9 12 12 14 14
    AT 3 3 3 4 5 5 8

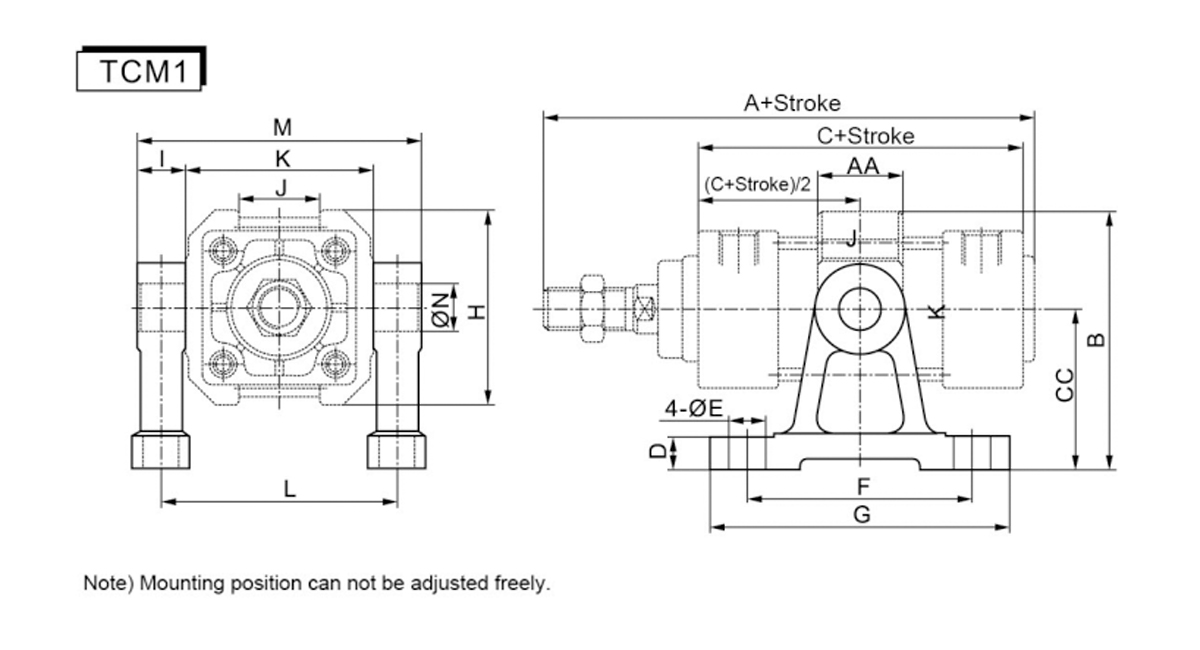

    Symbolum /
    Bore Size     		32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    AA 44 44 60 60 86 86 110
    B 62 62 81 81 111 111 136
    C 84 84 94 94 114 114 120
    CC 22 22 30 30 45 45 60
    CD 65 65 84.5 84.5 120 120 143
    CJ 23 23 31.5 31.5 47 47 53
    D 42 42 53 53 73 73 90
    E 6.6 6.6 9 9 11 11 13.5
    F 12 12 15 15 18 18 20
    H 7 7 8 8 10 10 14
    I 13.8 13.8 19.8 19.8 29.8 29.8 31.8
    J 10 10 14 14 22 22 25
    K 33 33 45 45 65 65 75
    L 32 32 43 43 64 64 78
    N 25 25 40 40 30 30 30
    O 45 45 60 60 55 55 50
    N O 90° 160 160 190 190 175 175 170

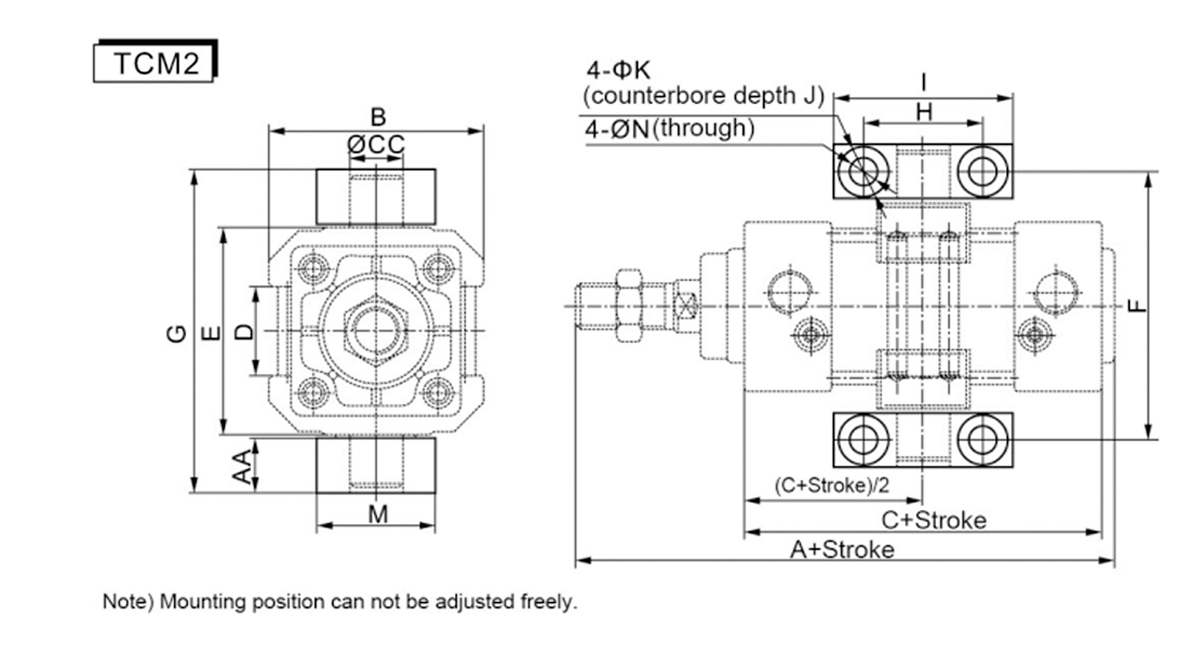

    Symbol/
    Bore Size     		32 40 50 63 80 100 125
    A 135 139 156 156 190 190 223
    AA 22 28 28 30 32 38 40
    B 66 86.5 91.5 115 126 157.5 175
    C 84 84 94 94 114 114 120
    CC 40 54 54 70 70 90 90
    D 11 11 11 11 11 19 19
    E 9 12 12 12 12 18 18
    F 60 75 75 85 85 115 115
    G 80 100 100 110 110 155 155
    H 52 65 75 90 112 135 170
    I 12 16 16 20 20 25 25
    J 20 27 31 42 54 68 80
    K 50 63 75 90 110 132 160
    L 62 79 91 110 130 157 185
    M 77 98 110 133 153 185 213
    N 12 16 16 20 20 25 25

    Symbol/
    Bore Size     		32 40 50 63 80 100 125
    A 135 139 156 156 190 190 223
    AA 14 17 17 20.5 20.5 24.5 24.5
    B 52 65 75 90 112 135 170
    C 84 84 94 94 114 114 120
    CC 12 16 16 20 20 25 25
    D 20 27 31 42 54 68 80
    E 50 63 75 90 110 132 160
    F 66 82 94 113.5 133.5 159.5 187.5
    G 80 99 111 134 154 184 212
    H 32 36 36 42 42 50 50
    I 46 55 55 65 65 75 75
    J 6.8 9 9 11 11 14 14
    K 11 15 15 18 18 20 20
    M 30 36 36 40 40 50 50
    N 7 9 9 11 11 14 14
