SU Series Standard Cylindri (No Tie Rod Type)
  • SU Series Standard Cylindri (No Tie Rod Type)
Standard Cylinder

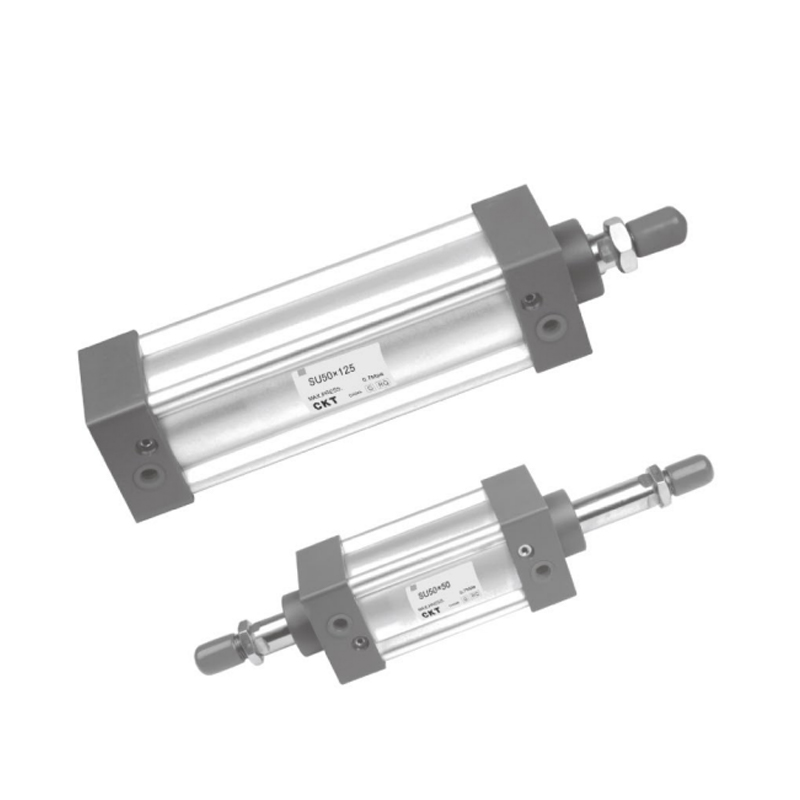

SU Series Standard Cylindri (No Tie Rod Type)

1. Piston sigillum peculiarem conformationem bidirectionis obsignationis induit structuram cum magnitudine et oleo repositionis functionis;
2. Aluminium tubus est M-formata tubus sine virga ligamen et bene anti- corrosion habet;
3. Comparata cum ISO15552 cylindris vexillis, series cylindrorum SU longitudo cum diametro cylindri eadem minor est;
4. Cylindrus quiddam temperatio stabile est;
5. Cylindri institutionis accessiones cum SC seriebus cylindricis communicantur;
6. Electio summus temperatus resistens materiae obsignatio potest curare normalem operationem cylindrici sub conditionibus CL°C.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：SI Series Standard Cylinder (No Tie Rod Type)
SUCCESSIVO：MBB Series Standard Cylinder
  • Bore Size (mm) 32 40 50 63 80 100
    Actio Duplex agens
    Liquor Aer (percolari per 40μm elementum colum)
    Adscendens

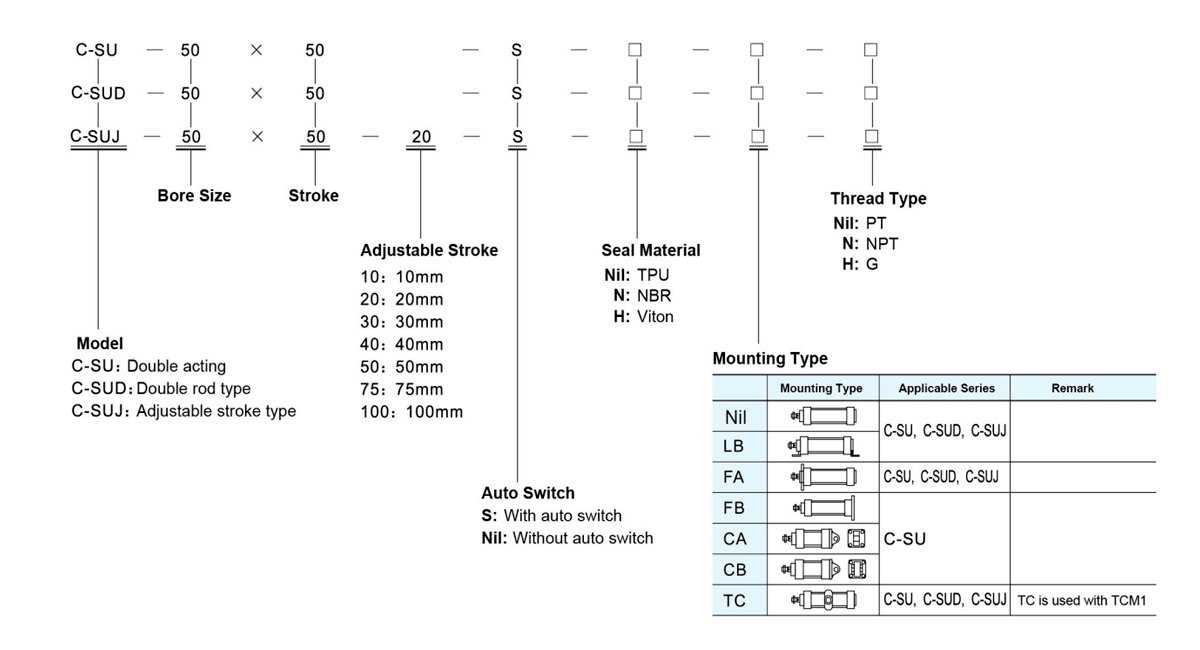

    Type     		C-SU series Bacis FA FB CA CB LB TC TCM1
    C-SUD, C-SUJ series Bacis FA LB TC TCM1
    Operans Preessure dolor 0.1~1.0MPa(14~145Psi)
    Probatur Pressura 1.5MPa (215Psi)
    Temperatus operating (℃) -20~80
    Operans Volo dolor (mm/s) 30~800
    Longitudo plaga tolerantia 0~250 1.0 251~1000 1.4 1001~1500 1.8
    Pulvinar Product pulvinar
    Pulvinar Stroke 21 28 29
    *Portus Location PT1/8 PT1/4 PT3/8 PT1/2
    * NPT et G filo genera praesto sunt pro nexu.

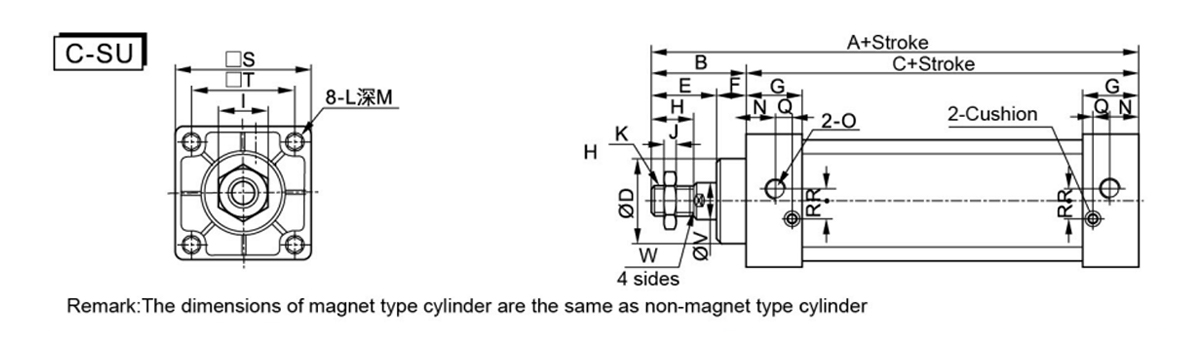

  • Bore Size/Symbol A B C D E F G H I J K L M N 0 P Q R S T V W
    32 140 47 93 28 32 15 27.5 22 17 6 M10×1.25 M6×1 9.5 14 PT1/8 5.5 6 6.5 45 33 12 10
    40 142 49 93 32 34 15 27.5 24 17 7 M12×1.25 M6×1 9.5 15 PT1/4 6 5 8.5 50 37 16 14
    50 150 57 93 38 42 15 27.5 32 23 8 M16×1.5 M6×1 9.5 17 PT1/4 8.5 2.5 10 62 47 20 17
    63 153 57 96 38 42 15 27.5 32 23 8 M16×1.5 M8×1.25 9.5 15 PT3/8 9.5 4 8.5 75 56 20 17
    80 182 75 107 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 19.5 PT3/8 10 4.5 14 94 70 25 22
    100 188 75 113 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 16.5 PT1/2 11 6.5 14 112 84 25 22

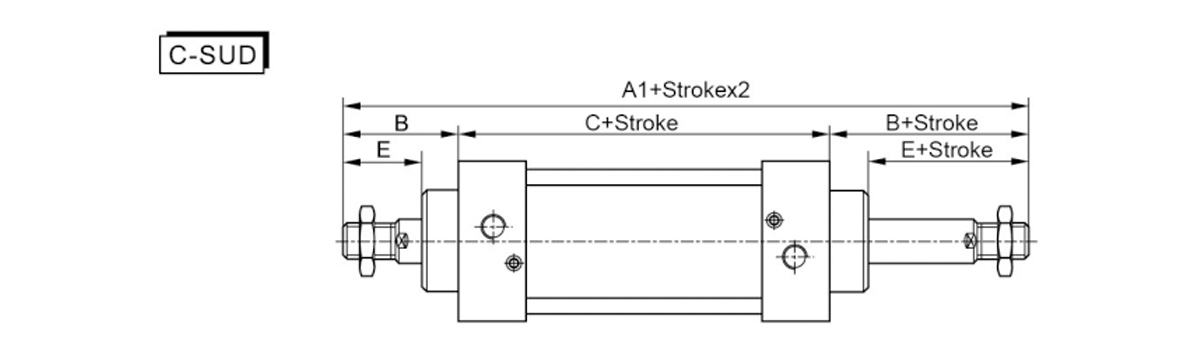

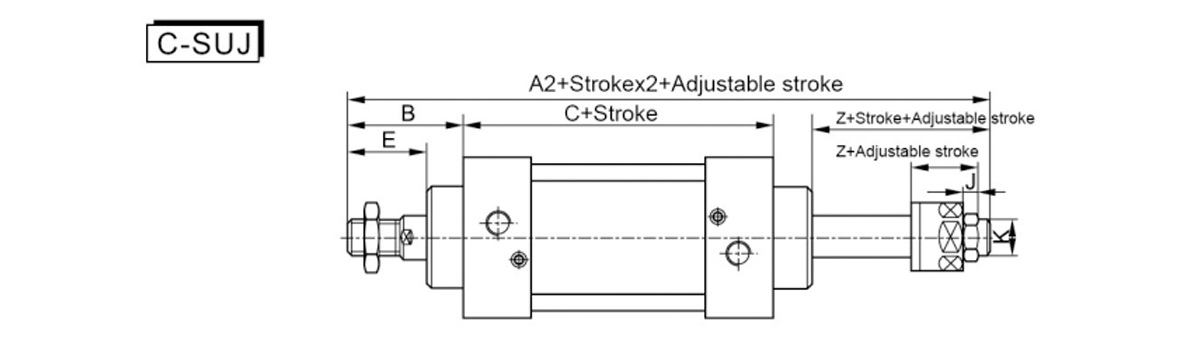

    Bore Size/Symbol A1 A2 B C E Z J K
    32 187 182 47 93 32 27 6 M10×1.25
    40 191 185 49 93 34 28 7 M12×1.25
    50 207 194 57 93 42 29 8 M16×1.5
    63 210 197 57 96 42 29 8 M16×1.5
    80 257 238.5 75 107 54 35.5 10 M20×1.5
    100 263 244.5 75 113 54 35.5 10 M20×1.5
    Animadverte: 1. Dimensiones magnetis generis cylindrici eaedem sunt ac non-magnetae cylindrici; 2. Eadem magnitudo ac vexillum genus C-SU pro Exemplar non magnitudinem demonstrant.

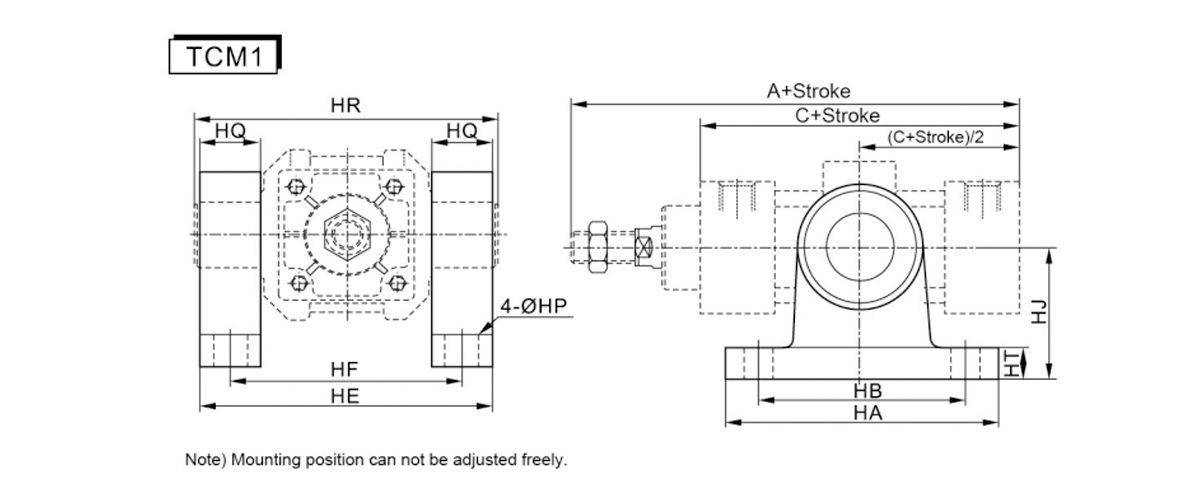

    Bore Size/Symbol A C HA HB ILLE' HF HP HQ HR HT HJ
    32 140 93 80 60 72 62 9 12 74 11 40
    40 142 93 103 80 109 86 11 23 113 12 50
    50 150 93 103 80 122 99 11 23 126 12 50
    63 153 96 103 80 134 111 11 23 138 12 50
    80 182 107 110 85 160 137 13 23 164 12 70
    100 188 113 110 85 178 155 13 23 182 12 70

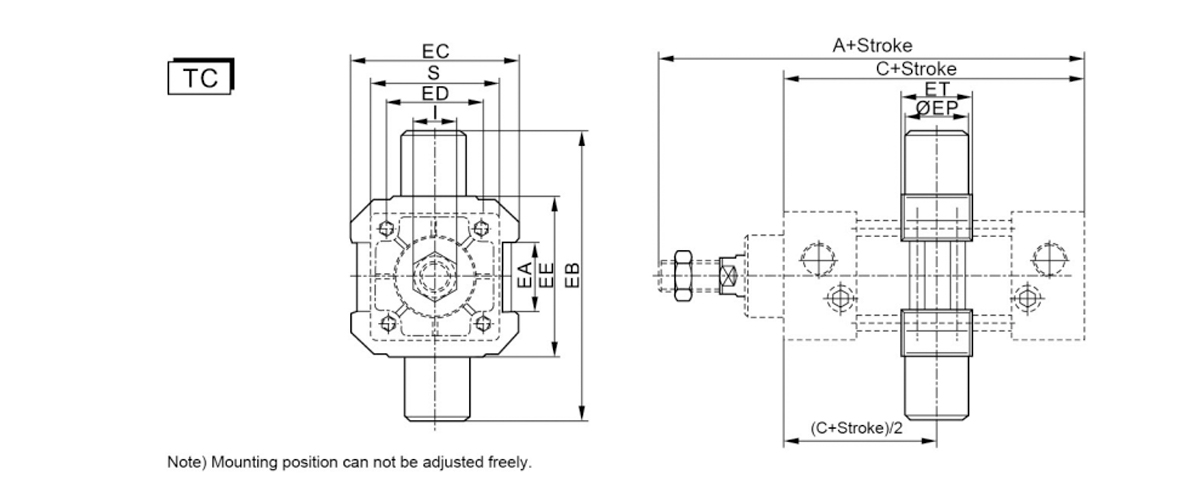

    Bore Size/Symbol A C EA EB EC ED EE EP ET I S
    32 140 93 20 74 52 33 50 12 22 17 45
    40 142 93 27 113 65 37 63 25 28 17 50
    50 150 93 31 126 75 47 76 25 28 23 62
    63 153 96 42 138 90 56 88 25 30 23 75
    80 182 107 54 164 112 70 114 25 32 26 94
    100 188 113 68 182 135 84 132 25 38 26 112
    Mensurae institutionis aliorum affectuum prorsus eadem sunt ac cylindrici seriei C-SC.
