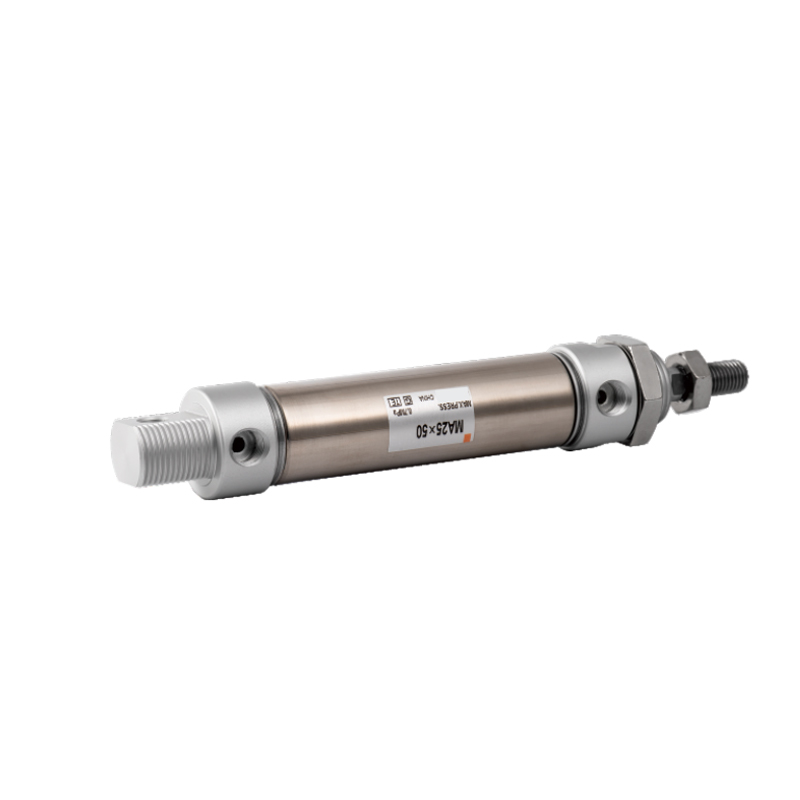

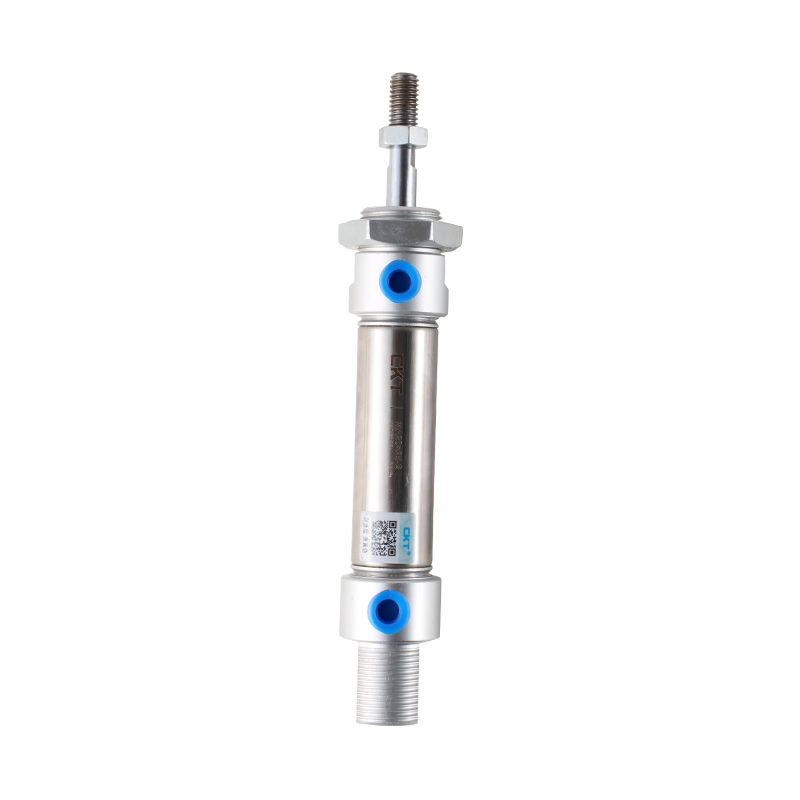

MA Series Steel Mini cylindrici

1. Piston sigillum specialem conformationem adhibet duplici modo obsignandi structuram cum magnitudine compacta et functione repono oleum;
2. Opercula anteriora et posteriora instructa sunt pads anti- collisione fixa ad ictum cylindricum reducendum;
3. Varii operculi posterioris formae cylindrici institutionem commodiorem faciunt;
4. A fronte et postico opercula et intemerata cylindri corporis adfixa ferro defixis compages volventia certa connexione;
5. Cylindrus corporis alta subtilitate immaculatam ferro tibiam adhibet cum vi et corrosione magno resistente;
6. Cylindri variarum specificationum et cylindrici institutionum accessiones praesto sunt pro clientibus eligendis;
7. Omnes cylindrici in hac serie magnetes adjunguntur.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MAL Series Aluminium Alloy Mini Cylinder
SUCCESSIVO：CM2 Series Steel Mini Cylinder (Single Acting)

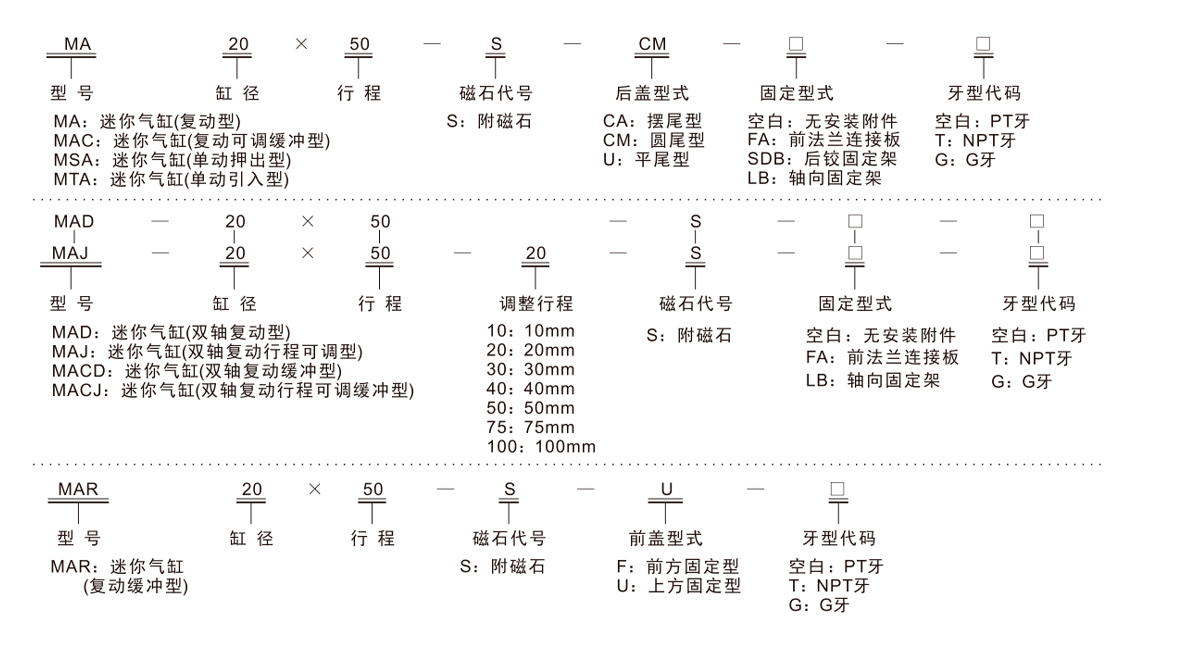

  • Diameter interior (mm) 16 20 25 32 40 50 63
    Actio Type MSAI  MTA Una agendi genus -
    MAR - Reciproco genus
    MAI  MADI  MAJ Reciproco genus -
    MACI  MACDI   MACJ - Duplex agendi genus cushioning
    opus medium Air
    Operans pressura range Reciproco genus 0.1~1.0MPa(15~145Psi)
    Una agendi genus 0.2~1.0MPa(28~145Psi)
    Guaranteed pressura resistentia 1.5MPa (215Psi)
    Operans temperatus range °C -20~70
    Celeritas range operating Una agendi genus:50~800mm/s
    Redit genus: 30 ~ 800mm/s *
    Iter tolerantia range 0~150* 10       >150 14
    Genus quiddam C-MAC, C-MACD, C-MACJ series: Adjustable buffering;
    Alia series: pads anti-concursus
    *Donec diam M5×0.8 PT1/8 PT1/4
    * NPT et G filo genera praesto sunt pro nexu.

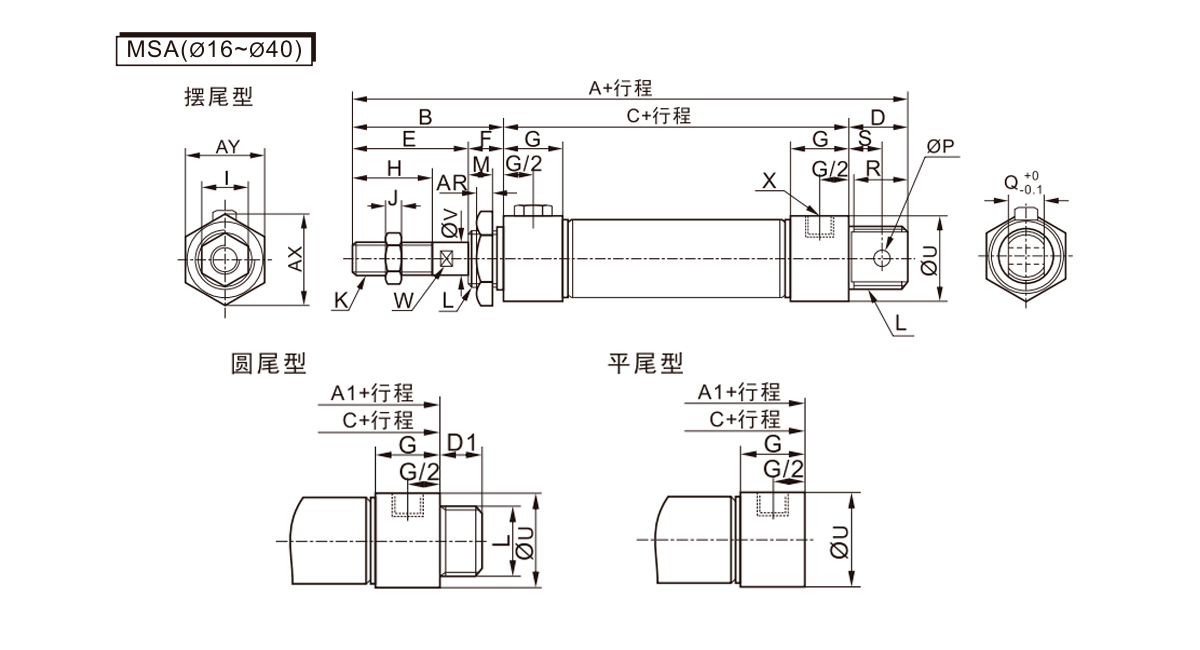

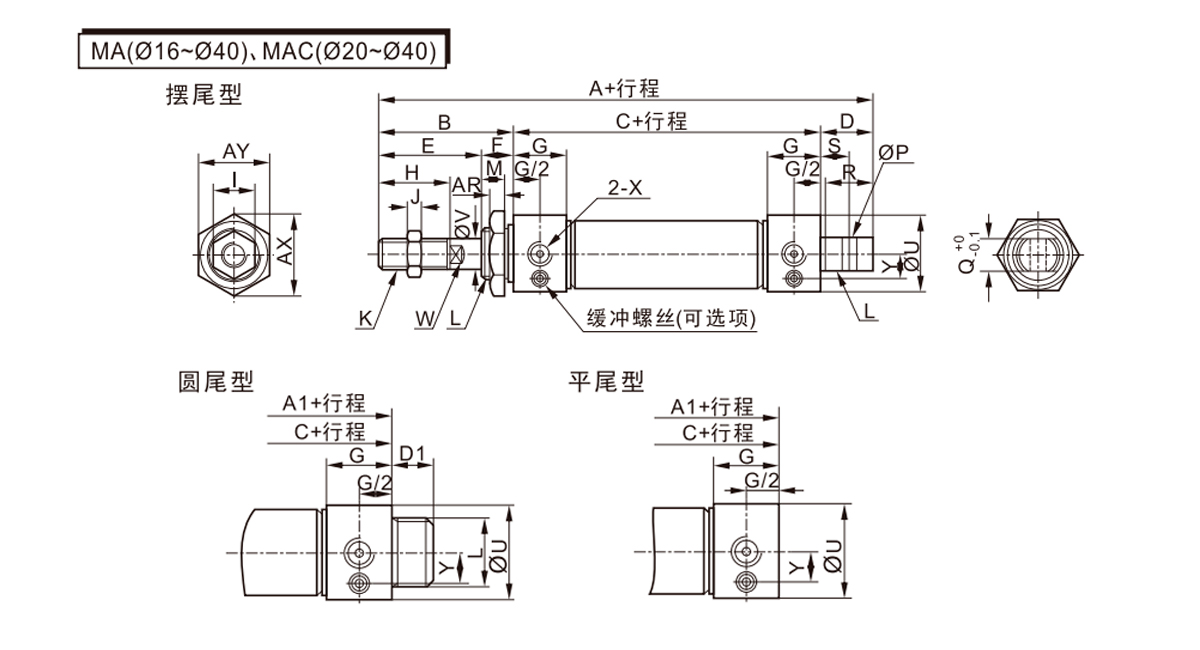

  • Diameter interior / symbolum A A1 B C D D1 E F G H 1 J K L M P Q R S U V W X AR AX AY Y
    16 114 98 38 60 16 16 22 16 10 16 10 5 M6×1 M16×1.5 14 6 12 14 9 21 6 8 M5×0.8 6 25 22 -
    20 137 116 40 76 21 12 28 12 16 20 12 6 M8×1.25 M22×1.5 10 8 16 19 12 27 8 6 PT1/8 7 33 29 8.7
    25 141 120 44 76 21 14 30 14 16 22 17 6 M10×1.25 M22×1.5 12 8 16 19 12 30 10 8 PT1/8 7 33 29 10.2
    32 147 120 44 76 27 14 30 14 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 15 35 12 10 PT1/8 8 37 32 12
    40 149 122 46 76 27 14 32 14 16.7 24 17 7 M12×1.25 M30×2.0 12 12 20 25 15 41.6 16 14 PT1/8 9 47 41 15

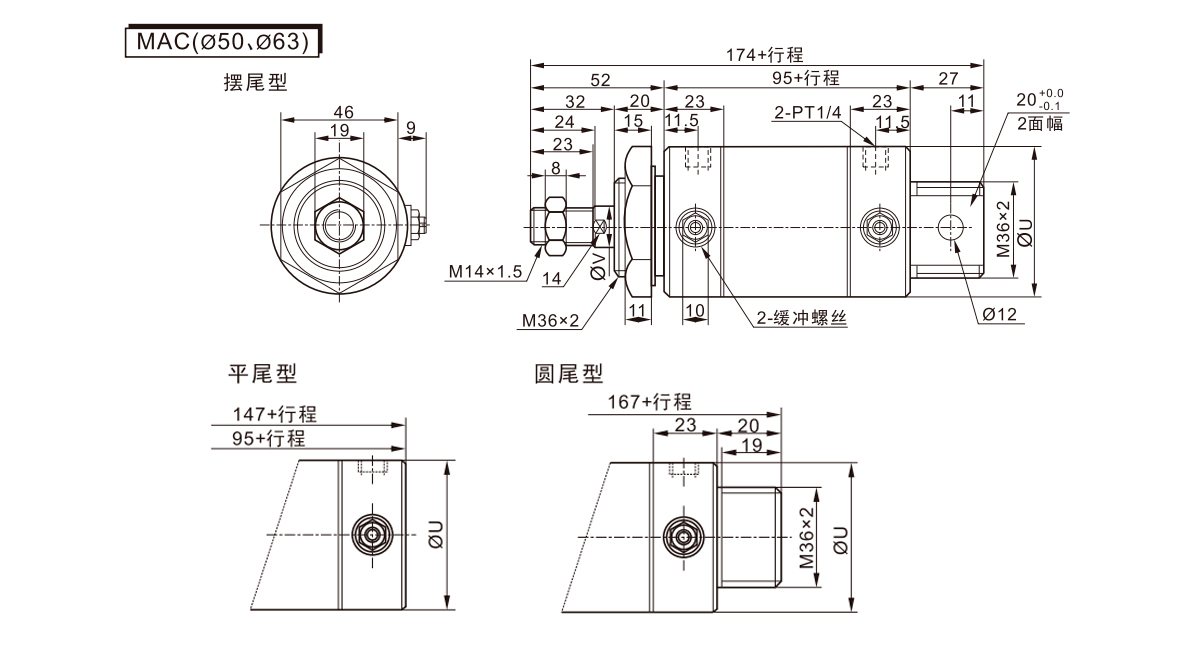

    Diameter Cylindrus/symbolum U V
    50 53 16
    63 67 16

    Symbolumumumumum A A1 B C D D1 E F G H I
    Diameter interior / plaga ≤50 51-100 ≥101 ≤50 51-100 ≥101 ≥50 51-100 ≥101
    16 139 164 - 123 148 - 38 85 110 - 16 16 22 16 10 16 10
    20 162 187 212 141 166 191 40 101 126 151 21 12 28 12 16 20 12
    25 166 191 216 145 170 195 44 101 126 151 21 14 30 14 16 22 17
    32 172 197 222 145 170 195 44 101 126 151 27 14 30 14 16 22 17
    40 174 199 224 147 172 197 46 101 126 151 27 14 32 14 16.7 24 17

    Diameter interior / symbolum J K L M P Q R S U V W X AR AX AY
    16 5 M6×1 M16×1.5 14 6 12 14 9 21 6 5 M5×0.8 5 25 22
    20 6 M8×1.25 M22×1.5 10 8 16 19 12 27 8 6 PT1/8 7 33 29
    25 6 M10×1.25 M22×1.5 12 8 16 19 12 30 10 8 PT1/8 7 33 29
    32 6 M10×1.25 M24×2.0 12 10 16 25 15 35 12 10 PT1/8 8 37 32
    40 7 M12×1.25 M30×2.0 12 12 20 25 15 41.6 16 14 PT1/8 9 47 41

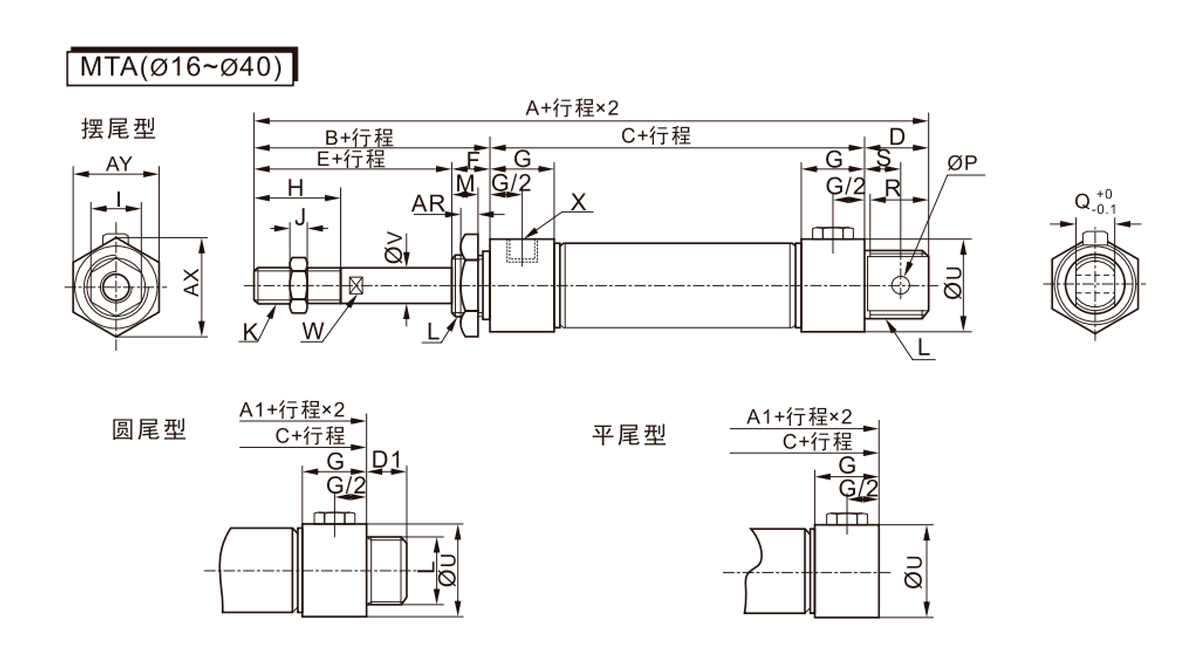

    Symbolumumumumum A A1 B C D D1 E F
    Diameter interior / plaga ≤25 ≤50 ≤75 ≤100 ≤25 ≤50 ≤75 ≤100 ≤25 ≤50 ≤75 ≤100
    16 129 139 154 164 113 123 138 148 38 75 85 100 110 16 16 22 16
    20 152 162 177 187 131 141 156 166 40 91 101 116 126 21 12 28 12
    25 156 166 181 191 135 145 160 170 44 91 101 116 126 21 14 30 14
    32 162 172 192 192 135 145 165 165 44 91 101 121 121 27 14 30 14
    40 164 174 194 204 137 147 167 177 46 91 101 121 131 27 14 32 14

    Diameter interior / symbolum G H I J K L M P Q R S U V W X AR AX AY
    16 10 16 10 5 M6×1 M16×1.5 14 6 12 14 9 21 6 5 M5×0.8 6 25 22
    20 16 20 12 6 M8×1.25 M22×1.5 10 8 16 19 12 27 8 6 PT1/8 7 33 29
    25 16 22 17 6 M10×1.25 M22×1.5 12 8 16 19 12 30 10 8 PT1/8 7 33 29
    32 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 15 35 12 10 PT1/8 8 37 32
    40 16.7 24 17 7 M12×1.25 M30×2.0 12 12 20 25 15 41.6 16 14 PT1/8 9 47 41

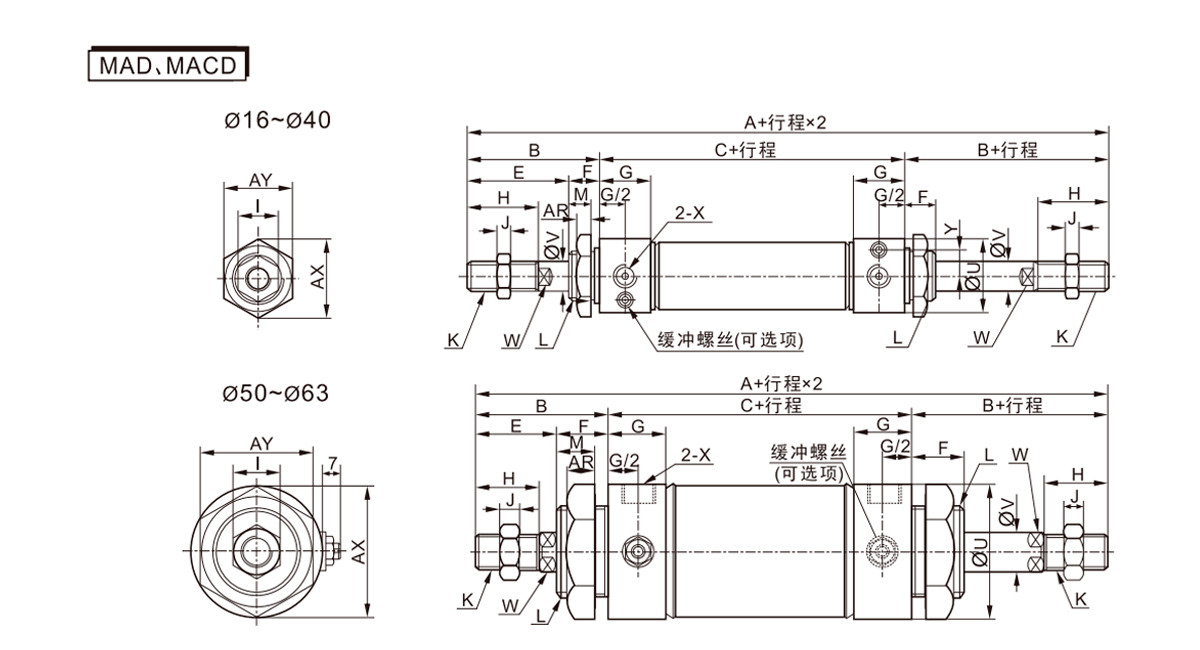

    Diameter interior / symbolum A B C E F G H I J K L M U V W X AR AX AY Y
    16 136 38 60 22 16 10 16 10 5 M6×1 M16×1.5 14 21 6 5 M5×0.8 6 25 22 -
    20 156 40 76 28 12 16 20 12 6 M8×1.25 M22×1.5 10 27 8 6 PT1/8 7 33 29 8.7
    25 164 44 76 30 14 16 22 17 6 M10×1.25 M22×1.5 12 30 10 8 PT1/8 7 33 29 10.2
    32 164 44 76 30 14 16 22 17 6 M10×1.25 M24×2.0 12 35 12 10 PT1/8 8 37 32 12
    40 168 46 76 32 14 16.7 24 17 7 M12×1.25 M30×2.0 12 41.6 16 14 PT1/8 9 47 41 15
    50 199 52 95 32 20 23 24 19 8 M14×1.5 M36×2.0 15 53 16 14 PT1/4 11 53 46 -
    63 199 52 95 32 20 23 24 19 8 M14×1.5 M36×2.0 15 67 16 14 PT1/4 11 53 46 -

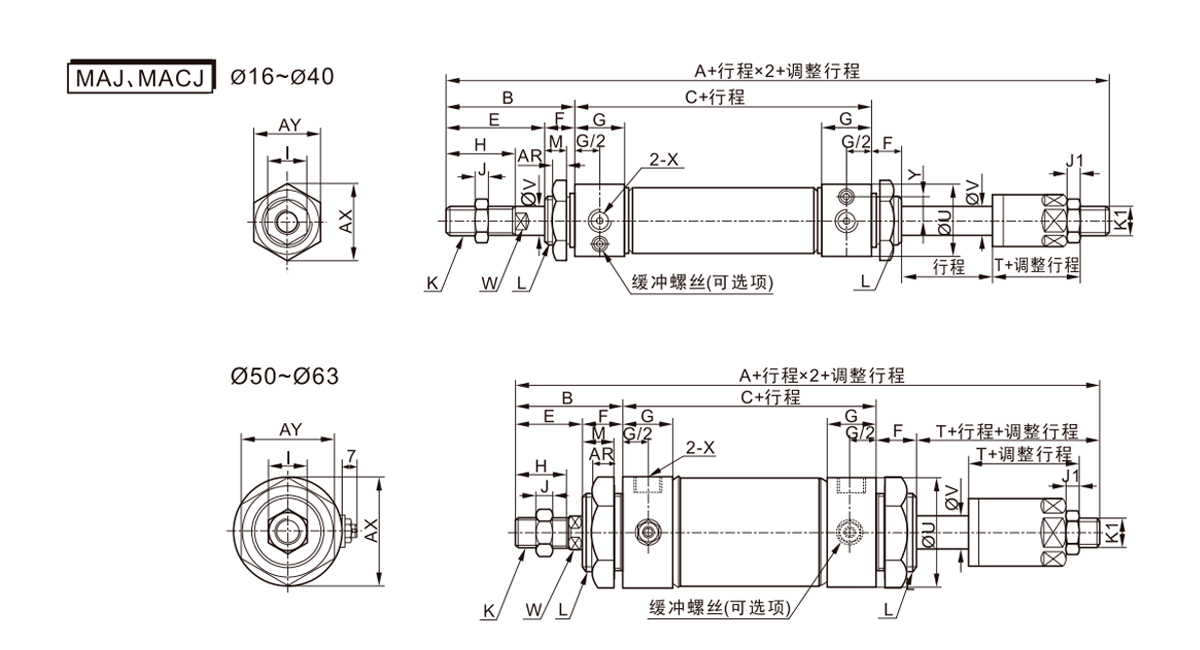

    Diameter interior / symbolum A B C E F G H I J J1 K K1 L M U V W X AR AX AY Y T
    16 135 38 60 22 16 10 16 10 5 5 M6×1 M6×1 M16×1.5 14 21 6 5 M5×0.8 6 25 22 - 21
    20 153 40 76 28 12 16 20 12 9 6 M8×1.25 M8×1.25 M22×1.5 10 27 8 6 PT1/8 7 33 29 8.7 25
    25 161 44 76 30 14 16 22 17 6 6 M10×1.25 M10×1.25 M22×1.5 12 30 10 8 PT1/8 7 33 29 10.2 27
    32 161 44 76 30 14 16 22 17 6 6 M10×1.25 M10×1.25 M24×2.0 12 35 12 10 PT1/8 8 37 32 12 27
    40 164 46 76 32 14 16.7 24 17 7 7 M12×1.25 M12×1.25 M30×2.0 12 41.6 16 14 PT1/8 9 47 41 15 28
    50 195 52 95 32 20 23 24 19 8 7 M14×1.5 M12×1.25 M36×2.0 15 53 16 14 PT1/4 11 53 46 - 28
    63 195 52 95 32 20 23 24 19 8 7 M14×1.5 M12×1.25 M36×2.0 15 67 16 14 PT1/4 11 53 46 - 28

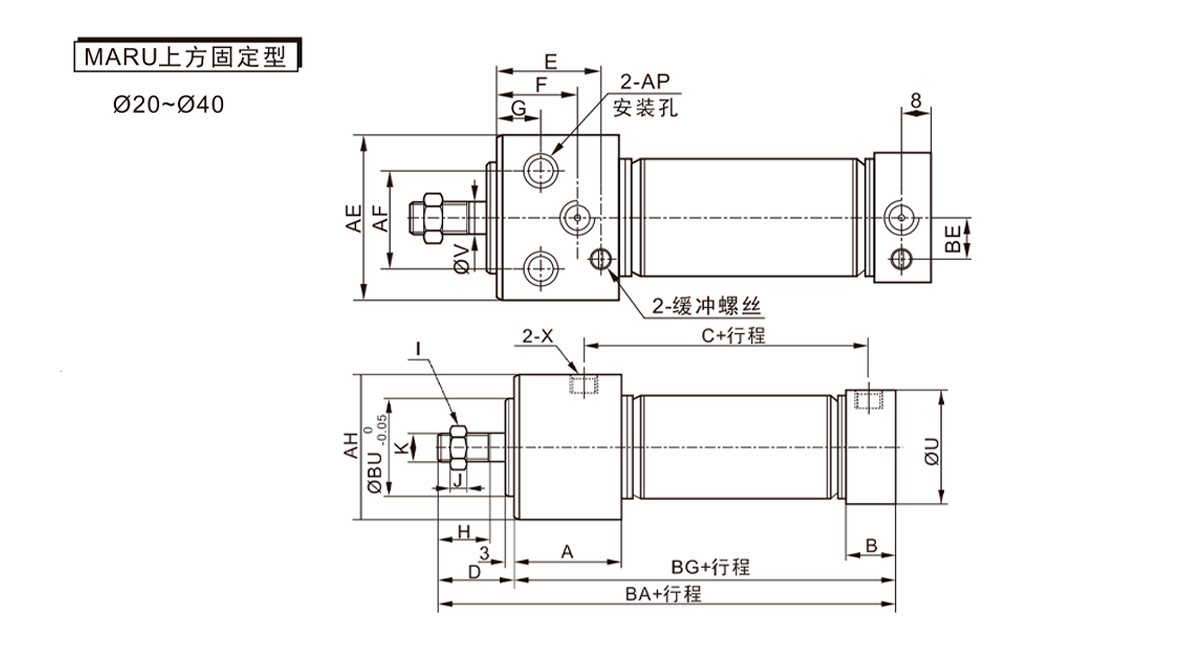

    Diameter interior / symbolum A B C D E F G H I J K U V X AE*** AF*** AP AH BA BE BG BU
    20 29 16 59 31 24 22 12 20 13 5 M8×1.25 27 8 PT1/8 33.5 21 9.5
    Profundum 6.5
    Per foramen: Ø5.5     		30.3 120 8.7 89 20
    25 29 16 59 33 24 22 12 22 17 6 M10×1.25 30 10 PT1/8 39 25 11.0
    Profundum 7.5
    Per foramen: 6.6     		36.3 122 10.2 89 26
    32 29 16 59 33 25 22 12 22 17 6 M10×1.25 35 12 PT1/8 47 30 14.0
    Profundum 10
    Per foramen: 09.0     		42.3 122 12 89 26
    40 37.5 16.6 62 35 31 27 15 24 19 8 M14×1.5 41.6 16 PT1/8 58.5 38 17.5
    Profundum 12.5
    Per foramen: -11     		52.3 132.6 15 97.6 32

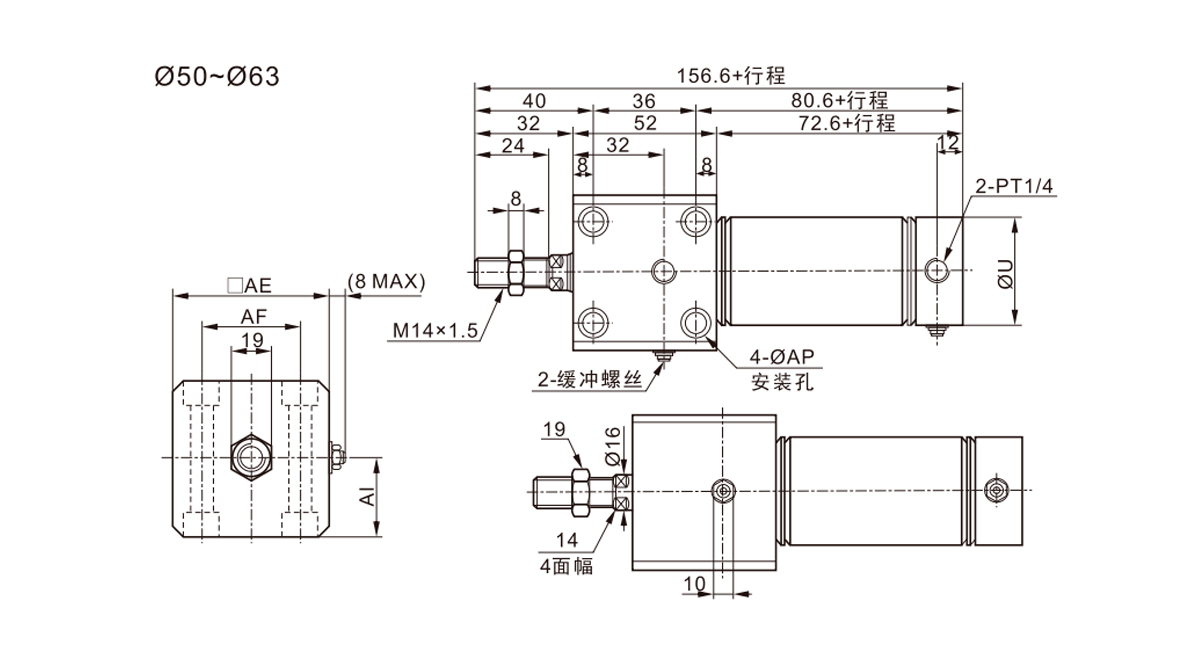

    Diameter interior / symbolum U AE*** AF*** Al AP
    50 53 62 44 31 Bilateralis: 011.0 dp 6.5
    Per foramen: 06.6
    63 67 74 48 37 Duplex quadratum: Ø14.0 dp 8.5
    Per foramen: 9.0

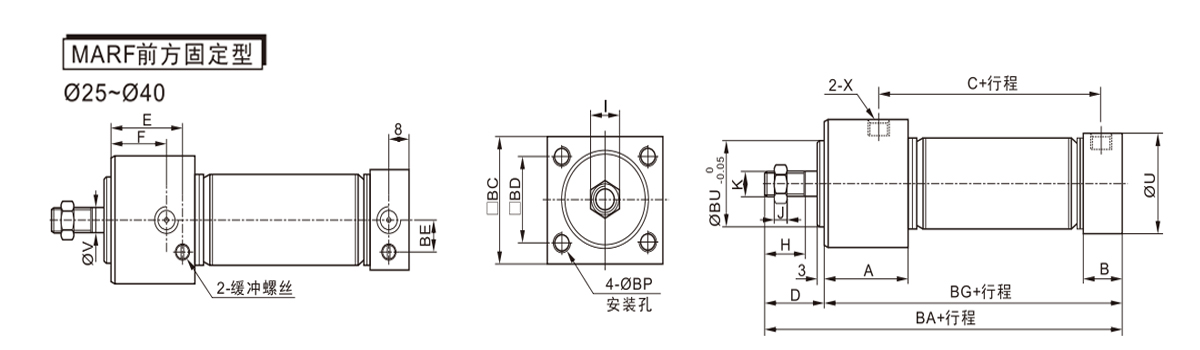

    Diameter interior / symbolum A B C D E F H 1 J K U V X BA BC BD BE BG BP BU
    20 29 16 59 31 24 22 20 13 5 M8×1.25 27 8 PT1/8 120 30.5 22 8.7 89 M8×0.8 Deep9 20
    25 29 16 59 33 24 22 22 17 9 M10×1.25 30 10 PT1/8 122 36.5 26 10.2 89 M6×1.0 Deep11 26
    32 29 16 59 33 25 22 22 17 6 M10×1.25 35 12 PT1/8 122 42.5 30 12 89 M6×1.0 Deep11 26
    40 37.5 16.6 62 35 31 27 24 19 8 M14×1.5 41.6 16 PT1/8 132.6 52.5 36 15 97.6 M8×1.25 Deep14 32

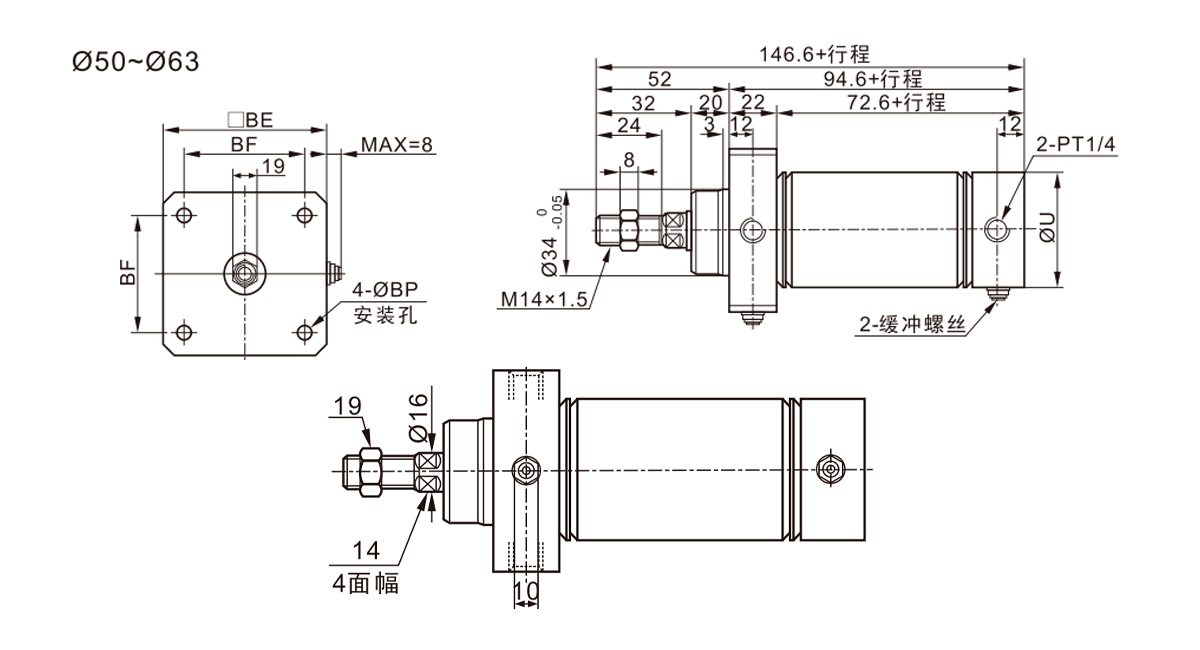

    Diameter interior / symbolum U BE BF BP
    50 53 62 48 6.6
    63 67 74 58 9

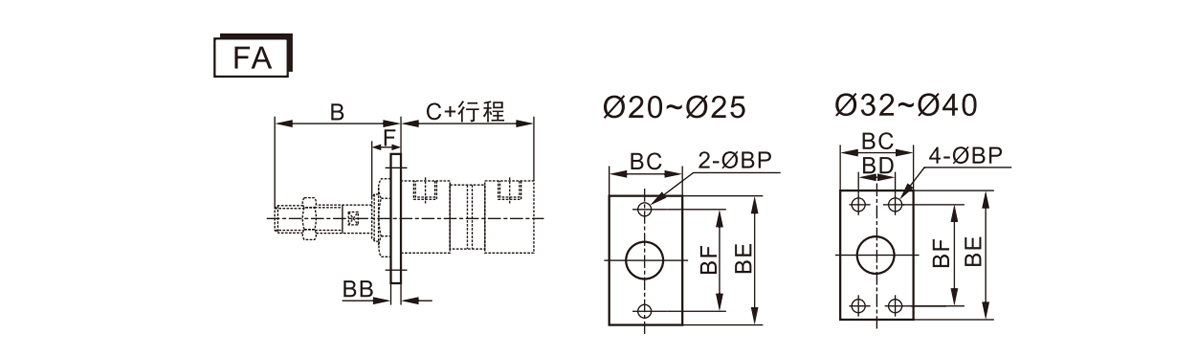

    Symbolumumumumum B C(MA series) C (MSA series) BB BC BD BE BF BP F
    Pertundere / plaga 0~50 51~100 101~150
    16 38 60 85 110 - 3 26 - 52 40 5.5 16
    20 40 76 101 126 151 4 38 - 64 50 6.5 12
    25 44 76 101 126 151 4 38 64 50 6.5 14
    32 44 76 101 126 151 4 47 33 72 58 6.5 14
    40 46 76 101 126 151 4 50 36 84 70 6.5 14

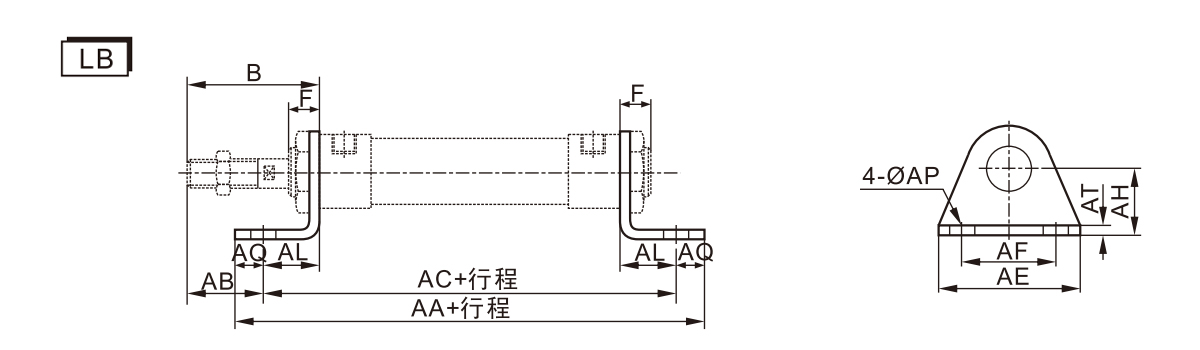

    Symbolumumumumum B F AA(MA series) AA (MSA series) AB* AC (MA Series) AC (MSA series) AE*** AF*** AL* AQ^ AP AT AH
    Pertundere / plaga 0~50 51~100 101~150 0~50 51~100 101~150
    16 38 16 98 123 148 - 25 86 111 136 - 44 32 13 6 5.5 3 20
    20 40 12 122 147 172 197 25 106 131 156 181 54 40 15 8 6.5 3 25
    25 44 14 122 147 172 197 29 106 131 156 181 54 40 15 8 6.5 3 25
    32 44 14 142 167 192 217 19 126 151 176 201 59 45 25 8 6.5 4 32
    40 46 14 142 167 192 217 21 126 151 176 201 64 50 25 8 6.5 4 36

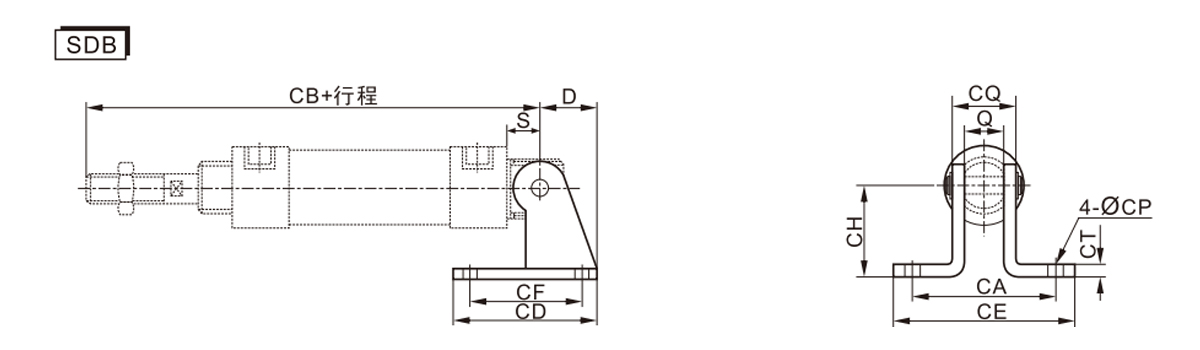

    Symbolumumumumum D S Q CA CB (MA series) CB (MSA series) CD CE CF CH* CT CP CQ*
    Pertundere / plaga 0~50 51~100 101~150
    16 16 9 12 - 107 132 157 - 23 12 20 2 5.5 16
    20 21 12 16 51 128 153 178 203 48 67 32 32 3 6.5 22
    25 21 12 16 51 132 157 182 207 48 67 32 32 3 6.5 22
    32 27 15 16 51 135 160 185 210 52 67 36 36 4 6.5 24
    40 27 15 20 55 137 162 187 212 56 71 40 40 4 6.5 28
