MAL Series Aluminium Alloy Mini Cylinder Fornitores

Home / Products / Air Cylindri / Mini Cylinder / MAL Series Aluminium Alloy Mini Cylinder

MAL Series Aluminium Alloy Mini Cylinder MAL Series Aluminium Alloy Mini Cylinder MAL Series Aluminium Alloy Mini Cylinder
  • MAL Series Aluminium Alloy Mini Cylinder
  • MAL Series Aluminium Alloy Mini Cylinder
  • MAL Series Aluminium Alloy Mini Cylinder
Mini Cylinder

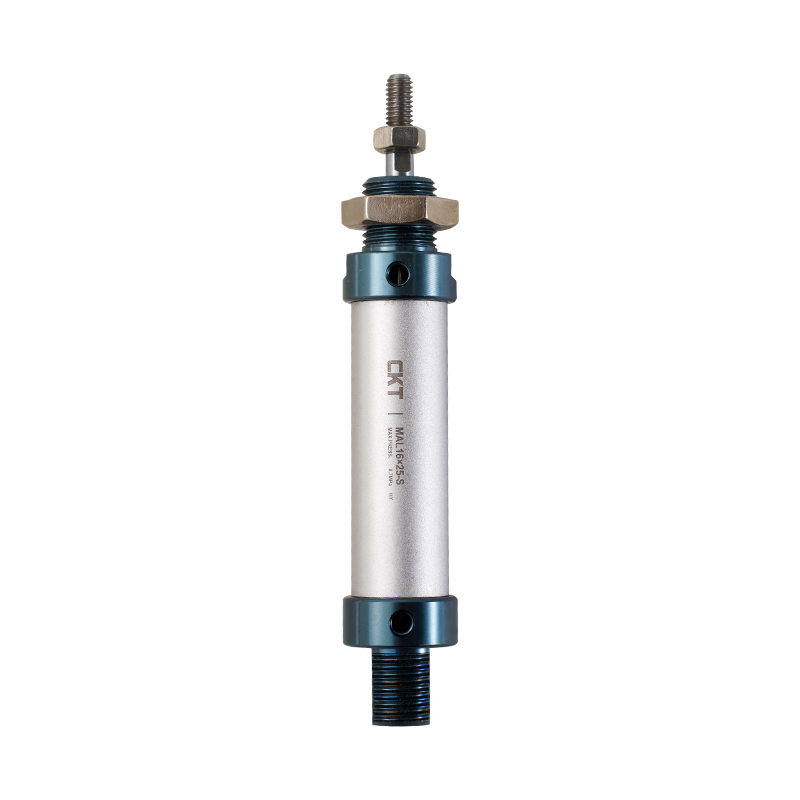

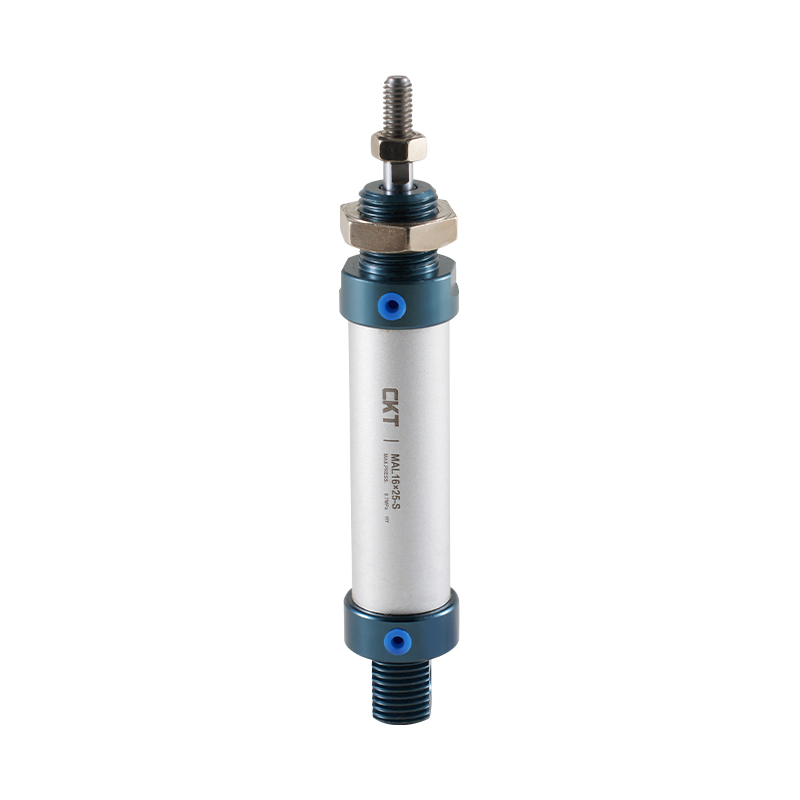

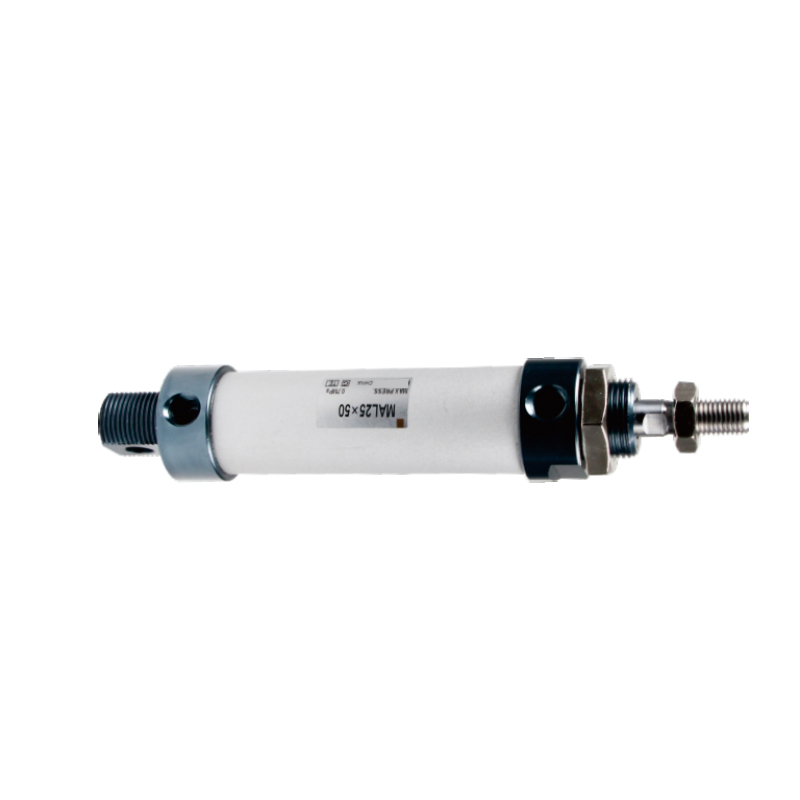

MAL Series Aluminium Alloy Mini Cylinder

1. Exsequere signa et signa aluminium rotundum corpus tubo cylindrico utere;
2. Opercula anteriora et posteriora ad cylindricum tubo per fila connexa;
3. Piston sigillum adhibet peculiarem conformationem duorum modorum obsignandi structuram cum magnitudine compacta et functione repono oleum;
4. Tegumentum anterioris se ipsum ducatum ducens secum bonam lubricationem et ad effectum ducentem;
5. Varii operculi posterioris formae cylindrici institutionem commodiorem faciunt;
6. Cylindri variarum specierum et cylindrici institutionis accessiones praesto sunt pro clientibus ad eligendum.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MI Series Steel Mini Cylinder
SUCCESSIVO：MA Series Steel Mini cylindrici
  • Diameter interior (mm) 20 25 32 40
    Actio Type MSAL et MTAL seriem Una agendi genus
    Alia series Reciproco genus
    medium opus Air
    Pressura range Reciproco genus 0.1~1.0MPa(14~145Psi)
    Una agendi genus 0.2~1.0MPa(28~145Psi)
    Guaranteed pressura resistentia 1.5MPa (215Psi)
    Operans temperatus range °C -20~70
    Celeritas range operating Una agendi genus：50~800mm/s
    Reactivum genus: XXX ~ 800mm / s *
    Iter tolerantia range 0~150 10 >150*1.4
    Genus quiddam Codex adfixum
    *Donec diam PT1/8 PT1/4
    *NPT et G filo genera praesto sunt pro nexu. Placere eligere.

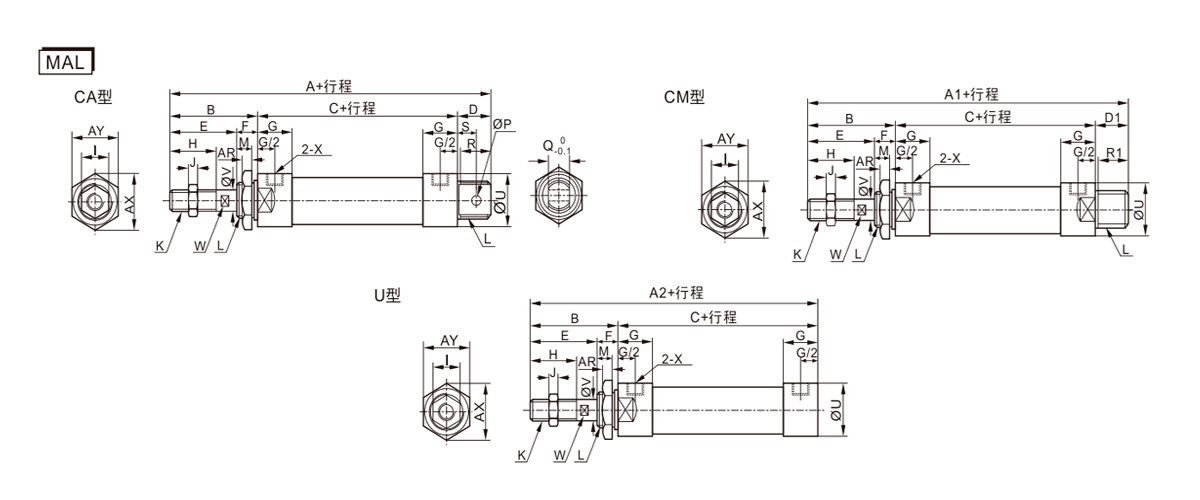

  • Diameter Cylindrus/symbolum A A1 A2 B C D D1 E F G H I J K L M P Q R R1 S U V W X AR AX AY
    16 107 108 92 40 51 16 16 24 16 10 16 10 5 M6×1 M16×1.5 14 6 12 16 12 10 22 9 6 PTM5 6 25 22
    20 131 122 110 40 70 21 12 28 12 16 20 12 5 M8×1.25 M22×1.5 10 8 16 19 12 12 29 8 0 PT1/8 7 33 29
    25 135 128 114 44 70 21 14 30 14 16 22 17 6 M10×1.25 M22×1.5 12 8 16 19 14 12 34 10 8 PT1/8 7 33 29
    32 141 128 114 44 70 21 14 30 14 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 14 15 39.5 12 10 PT1/8 8 37 32
    40 143 130 116 46 92 27 14 32 14 16 24 19 7 M12×1.25 M30×2.0 12 12 20 25 14 15 49.5 16 14 PT1/4 9 47 41

    Symbolumumumum A A1 A2 B C D D1 E F
    Pertundere / plaga 0~50 51~100 ≥101 0~50 51~100 ≥101 0~50 51~100 ≥101 0~50 51~100 ≥101
    20 156 181 206 147 172 197 135 160 185 40 95 120 145 21 12 28 12
    25 160 185 210 153 178 203 139 164 189 44 95 120 145 21 14 30 14
    32 166 191 216 153 178 203 139 164 189 44 95 120 145 27 14 30 14
    40 190 215 240 177 202 227 163 188 213 46 117 142 167 27 14 32 14

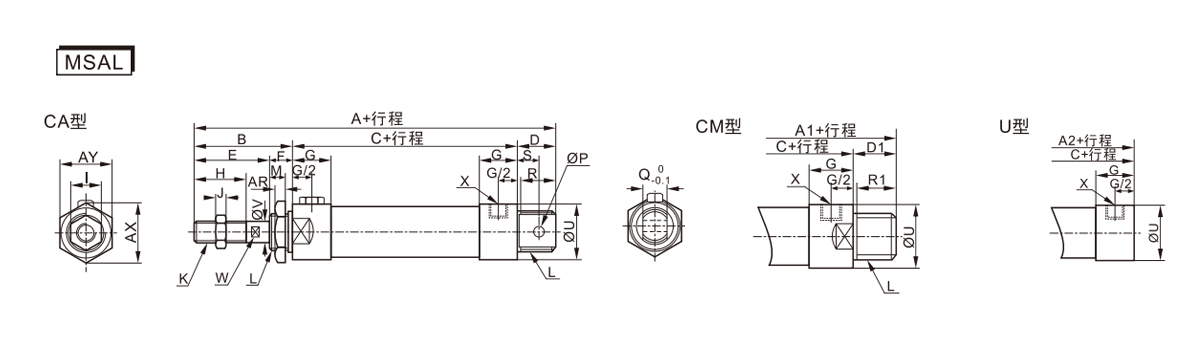

    Diameter Cylindrus/symbolum G H 1 J K L M P Q R R1 S U V W X AR AX AY
    20 16 20 12 6 M8×1.25 M22×1.5 10 8 16 19 10 12 29 8 6 PT1/8 7 33 29
    25 16 22 17 6 M10×1.25 M22×1.5 12 8 16 19 12 12 34 10 8 PT1/8 7 33 29
    32 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 12 15 39.5 12 10 PT1/8 8 37 32
    40 22 24 17 7 M12×1.25 M30×2.0 12 12 20 25 12 15 49.5 16 14 PT1/4 9 47 41

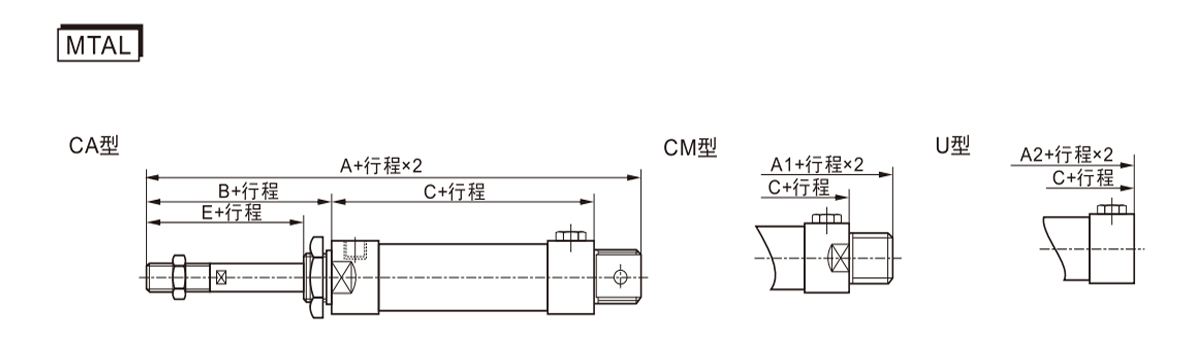

    Diameter Cylindrus/symbolum A A1 A2 C
    Itinerarium 0~25 26~50 51~75 76~100 0~25 26~50 51~75 76~100 0~25 26~50 51~75 76~100 0~25 26~50 51~75 76~100
    20 146 156 171 181 137 147 162 172 125 135 150 160 85 95 110 120
    25 150 160 175 185 143 153 168 178 129 139 154 164 85 95 110 120
    32 156 166 186 196 143 153 173 183 129 139 159 169 85 95 115 125
    40 180 190 210 220 167 177 197 207 153 163 183 193 107 117 137 147

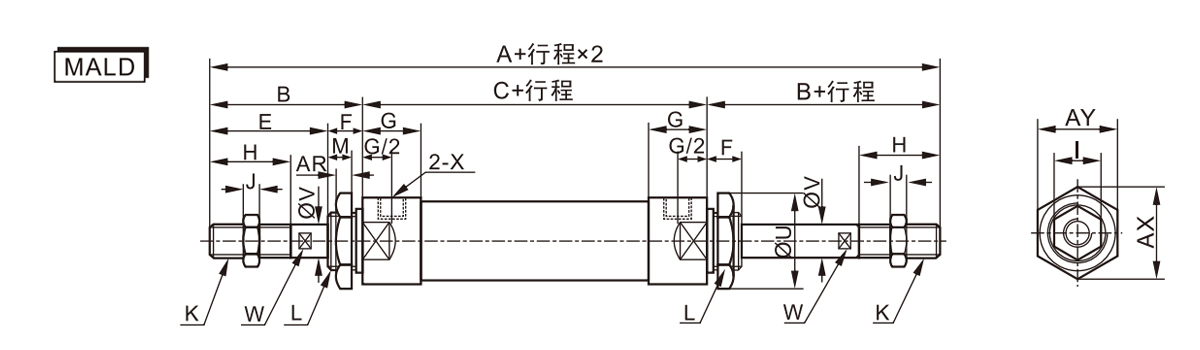

    Diameter Cylindrus/symbolum A B C E F G H I J K L M U V W X AR AX AY
    20 150 40 70 28 12 16 20 12 6 M8×1.25 M22×1.5 10 29 8 6 PT1/8 7 33 29
    25 158 44 70 30 14 16 22 17 6 M10×1.25 M22×1.5 12 34 10 8 PT1/8 7 33 29
    32 158 44 70 30 14 16 22 17 6 M10×1.25 M24×2.0 12 39.5 12 10 PT1/8 8 37 32
    40 184 46 92 32 14 22 24 17 7 M12×1.25 M30×2.0 12 49.5 16 14 PT1/4 9 47 41

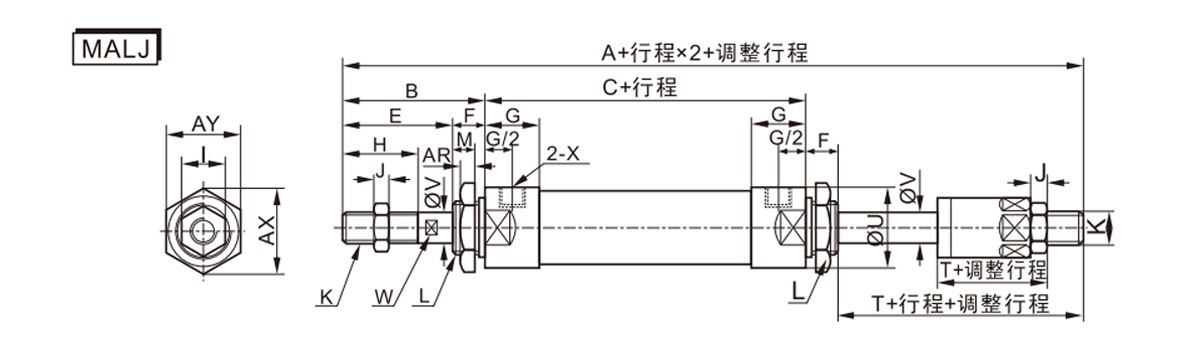

    Diameter Cylindrus/symbolum A B C E F G H I J K L M T U V W X AR AX AY
    20 147 40 70 28 12 16 20 12 6 M8×1.25 M22×1.5 10 25 29 8 6 PT1/8 7 33 29
    25 155 44 70 30 14 16 22 17 6 M10×1.25 M22×1.5 12 27 34 10 8 PT1/8 7 33 29
    32 155 44 70 30 14 16 22 17 6 M10×1.25 M24×2.0 12 27 39.5 12 10 PT1/8 8 37 32
    40 180 46 92 32 14 22 24 17 7 M12×1.25 M30×2.0 12 28 49.5 16 14 PT1/4 9 47 41

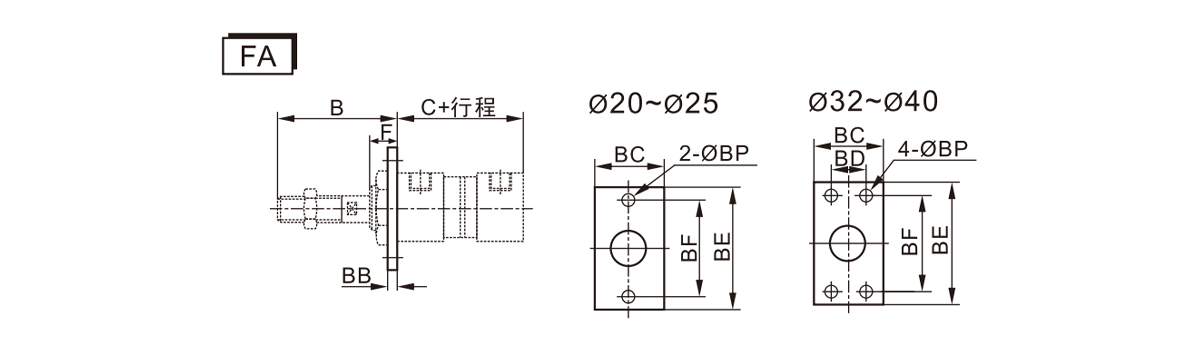

    Symbolumumumum B C
    (MAL*series)     		C(MSALseries) BB BC BD BE BF BP F
    Pertundere / plaga 0~50 51~100 101~150
    20 40 70 95 120 145 4 38 - 64 50 6.5 12
    25 44 70 95 120 145 4 38 - 64 50 6.5 14
    32 44 70 95 120 145 4 47 33 72 58 6.5 14
    40 46 92 117 142 167 4 50 36 84 70 6.5 14

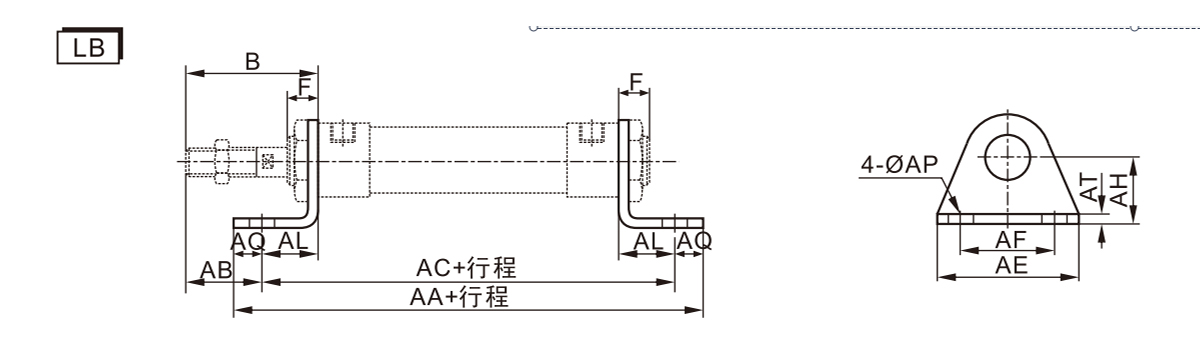

    Symbolumumumum B F AA
    (MAL*series)     		AA(MSAL series) AB* AC
    (MAL*series)     		AC(MSAL series) AE* AF* AL AQ^ AP AT AH
    Pertundere / plaga 0~50 51~100 101~150 0~50 51~100 101~150
    20 40 12 116 141 166 191 25 100 125 150 175 54 40 15 8 6.5 3 25
    25 44 14 116 141 166 191 29 100 125 150 175 54 40 15 8 6.5 3 25
    32 44 14 136 161 186 211 19 120 145 170 195 59 45 25 8 6.5 4 32
    40 46 14 158 183 208 233 21 142 167 192 217 64 50 25 8 6.5 4 36

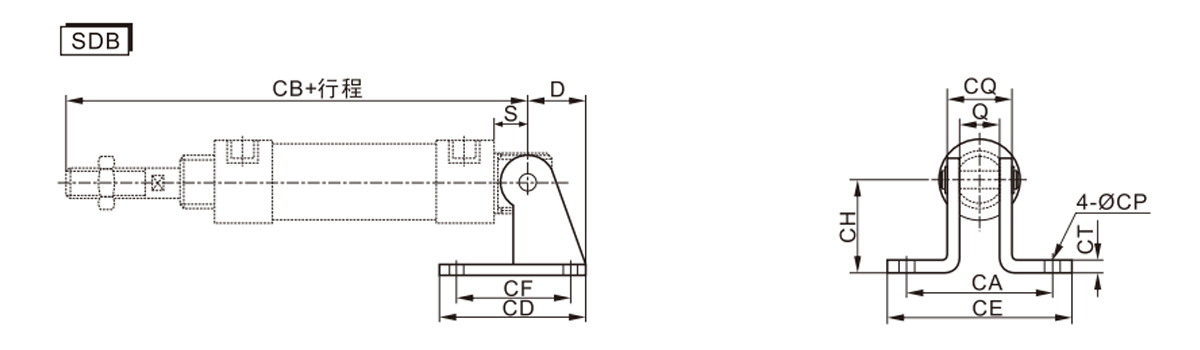

    Symbolumumumum D S Q CA CB
    (MAL series)     		CB (MSAL series) CD CE CF CH* CT CP CQ*
    Pertundere / plaga 0~50 51~100 101~150
    20 21 12 16 51 122 147 172 197 48 67 32 32 3 6.5 22
    25 21 12 16 51 126 151 176 201 48 67 32 32 3 6.5 22
    32 27 15 16 51 129 154 179 204 52 67 36 36 4 6.5 24
    40 27 15 20 55 153 178 203 228 56 71 40 40 4 6.5 28
