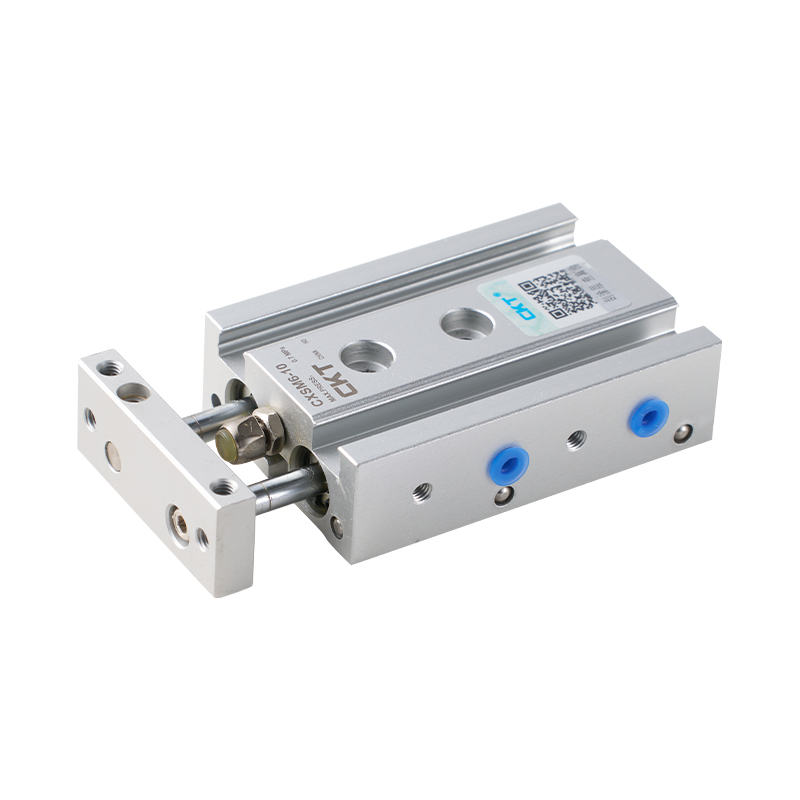

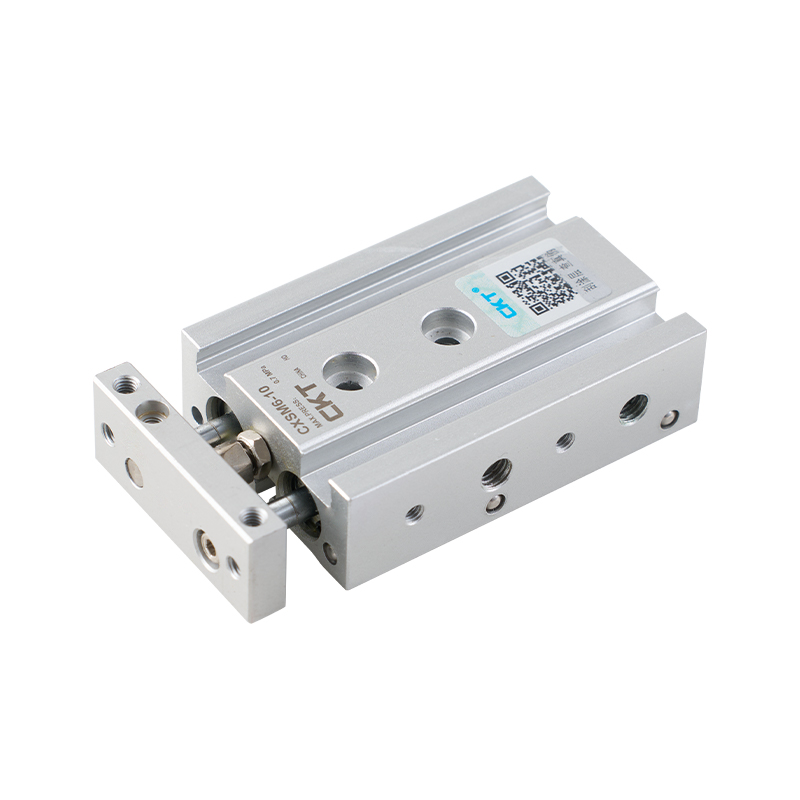

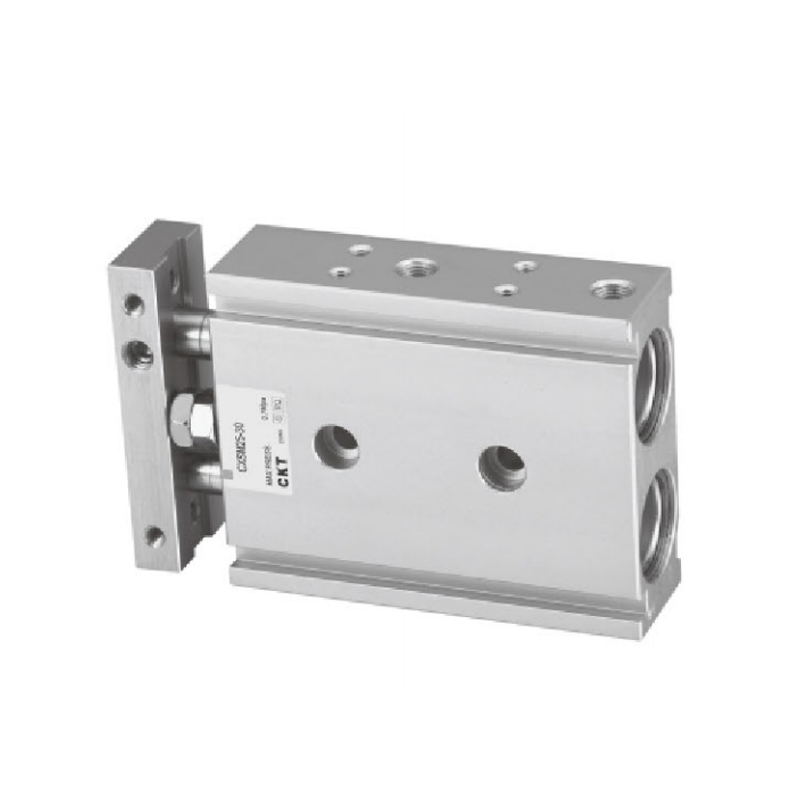

CXS Series Double Cylinder (Basic Type)

CXS Series Duplex Cylindri (Basic Type) est cylindri anconis duplex gracilis parallela. Eius compages compacta signanter spatium institutionis servat, et duplex anconis ratio vim theoricam duplicem output consequitur. Haec cylindrorum series egregiam anti-torsionem (non-rotatione) accurationem et facultatem anti-lateralis oneris auxit, et ad automationis applicationes cum spatio stricto et alte impulsu, alta praecisione et alta stabilitate destinatur.

Core commoda:

1. Duplex output, compactum et tenue: Unicum parallelum duplex anconis structura bis impulsum/extrahe vim eiusdem diametri columpnae unius virgae cylindrici ad minimam institutionem altitudinis.

2. Alta praecisio, non-roratio: Subsecutio rector systematis auctus efficit motum piston- num non-rotundum ut accuratam positionem assequatur.

3. Maximum latus onus resistentiae: ANCON densatum et rigidum consilium ductore efficaciter resistunt onera eccentrici et vires laterales, operandi leves et certae praestandi.

4. Firmum fundamentum: Vexillum ictum, in quiddam constructum, et solidum structurae communibus necessitatibus occurrent.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CXSW Series Per Rod Double Rod Cylinder
SUCCESSIVO：TDA/TN Series Double Cylinder (Ø10~Ø32)

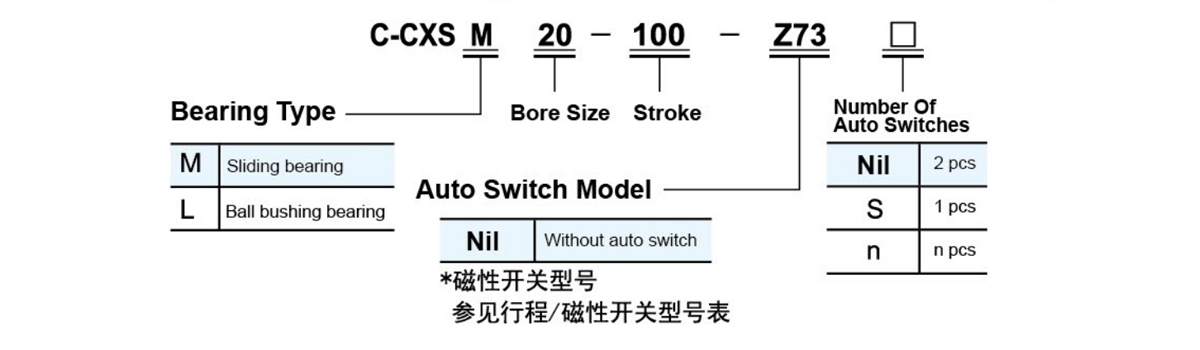

  • Specification
    Bore Size (mm) 6 10 15 20 25 32
    Liquor Air
    Actio Duplex agens
    Max.Operating Pressura (MPa) 0.7
    Min.Operating Pressura (MPa) 0.15 0.1 0.05
    Ambiens et Fluidus Temperature -10~ 60℃(Nec frigore)
    Pulvinar Utrimque rubber bumper
    Operans Piston Volo (mm/s) 30~300 30~800 30~700 30~600
    Structure Geminae virgae (bis output vis)
    *Lubrication Non requiratur
    Product Ictus dolor Revertere ictum 0~-5mm
    Ferens Illapsum afferentem / pila bushing afferentem
    Non rotating
    tolerantia     		Ferens PROLAPSIO ±0.1°
    Pila Bushing
    Ferens     		±0.1°
    Portus Location M5×0.8 1/8
    * Quaeso, utere ISOVG32   si vis   utere   lubricatione.

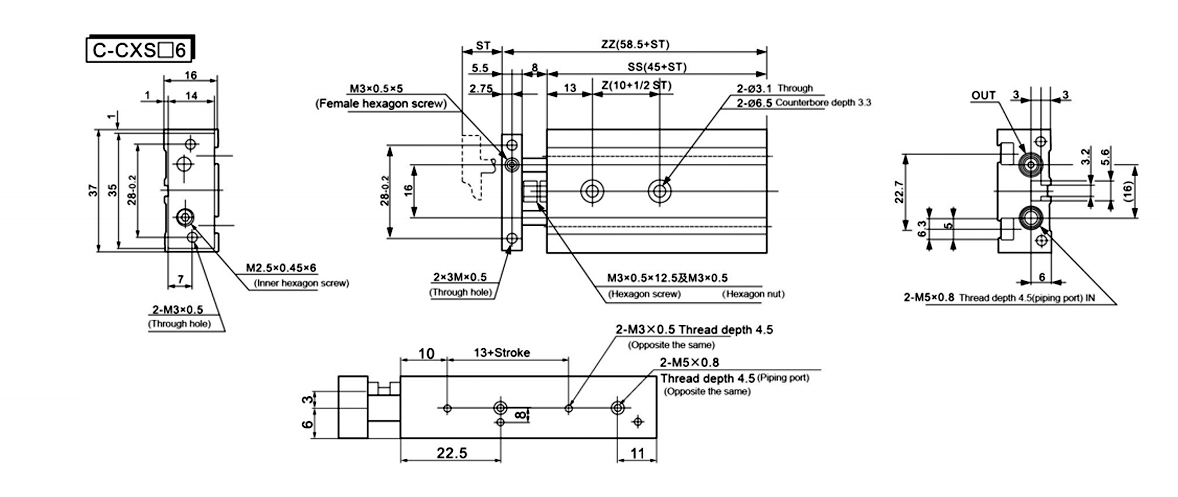

  • Model Plaga 10 1/2Stroke 13 Stroke 45 Stroke 58.5 Stroke
    C-CXS□6-10 10 15 23 55 68.5
    C-CXS□6-20 20 20 33 65 78.5
    C-CXS□6-30 30 25 43 75 88.5
    C-CXS□6-40 40 30 53 85 98.5
    C-CXS□6-50 50 35 63 95 108.5

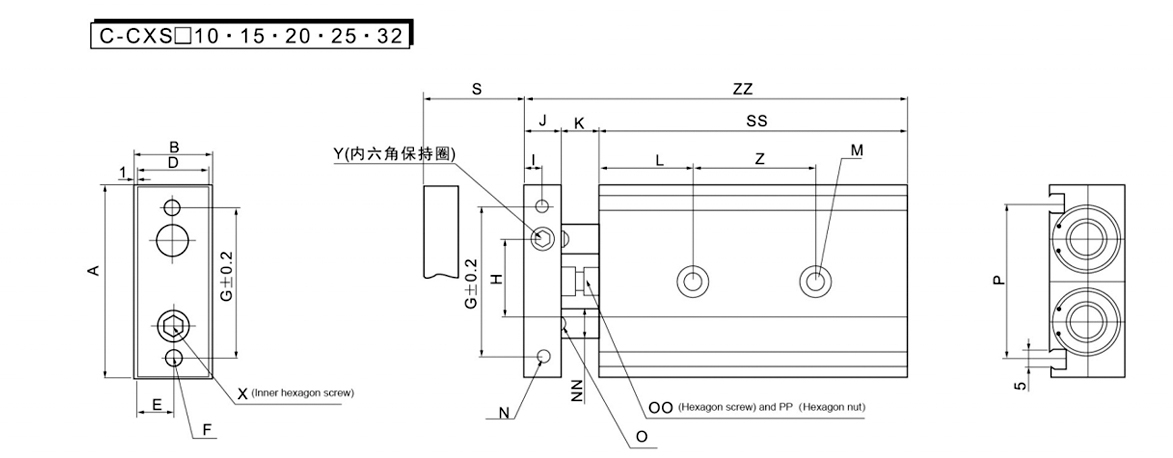

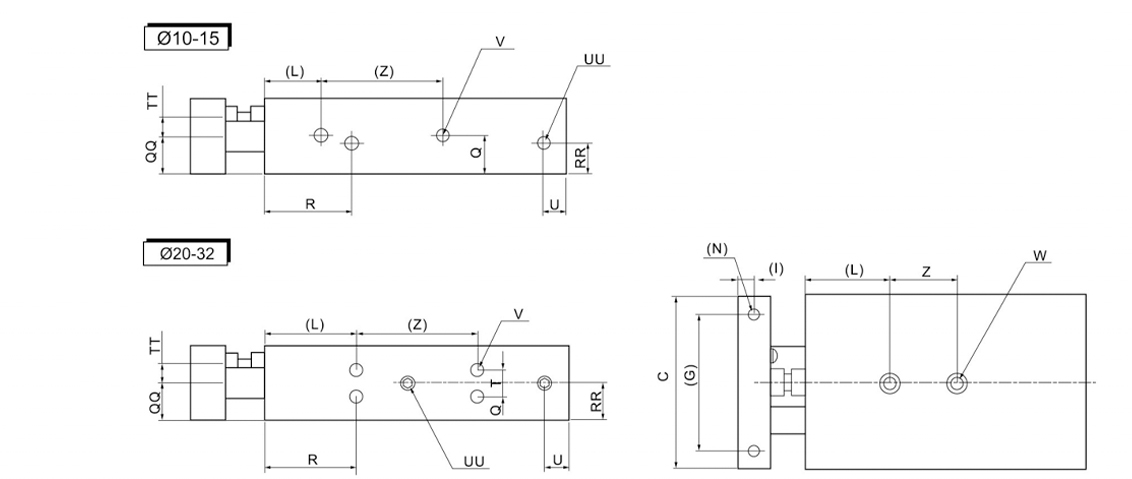

    Model A B C D E F G H I J K L M N NN O OO P PP Q QQ R RR S SS T TT U UU V W X Y Z ZZ
    C-CXS□10-10 46 17 44 15 7.5 2-M4×0.7 (Per foramen) 35 20 4 8 9 20 2-03.4
    Per foramen
    2-06.5
    Counterbore
    profundum 3.3     		2-M3X0.5
    Thread
    profundum 5     		6 5 M4×0.7×14.5L 33.6 M4×0.7 8.5 7 30 7 10 65 - 5 8 2-M5X0.5
    Thread
    profundum 4.5
    Aeris diverticulum foraminis
    (Idem in
    oppositum)     		4-M3X0.5
    Thread
    profundum 4.5
    (Idem in
    oppositum)     		2-M4
    X0.7
    Thread
    profundum VII "     		M3×0.5×10L M3×0.5×5L 30 82
    C-CXS□10-20 20 75 92
    C-CXS□10-30 30 85 40 102
    C-CXS□10-40 40 95 112
    C-CXS□10-50 50 105 122
    C-CXS□15-10 58 20 56 18 9 2-M5×0.8 (Per foramen) 45 25 5 10 9 30 2-24.3
    Per foramen
    2-28
    Counterbore
    profundum 4.4     		2-M4X0.7
    Thread
    profundum VI "     		8 6 M4×0.7×14.5L 48 M4×0.7 10 10 38.5 10 10 70 - 5 8 2-M5X0.8
    Thread
    profundum  4.5
    Aeris inle foraminis
    (Idem in
    oppositum)     		4-M4X0.7
    Thread
    profundum 5
    (Idem in
    oppositum)     		2-M5
    X0.8
    Thread
    profundum 8     		M3×0.8×10L M4×0.7×4L 25 89
    C-CXS□15-20 20 80 99
    C-CXS□15-30 30 90 109
    C-CXS□15-40 40 100 35 119
    C-CXS□15-50 50 110 129
    C-CXS□20-10 64 25 62 23 11.5 2-M5×0.8 (Per foramen) 50 28 6 12 12 30 2-05.5
    Per foramen
    2-09.5
    Counterbore
    profundum 5.3     		2-M4X0.7
    Thread
    profundum VI "     		10 8 M6×1.0×18.5L 53 M6×1.0 7.75 12.5 45 7.75 10 80 9.5 6.5 8 2-M5X0.8
    Thread
    profundum 4.5
    Aeris diverticulum foraminis
    (Idem in
    oppositum)     		8-M4X0.7
    Thread
    profundum VI "
    (Idem in
    oppositum)     		2-M6
    X1.0
    Thread
    profundum 10     		M6×1.0×12L M5×0.8×5L 30 104
    C-CXS□20-20 20 90 114
    C-CXS□20-30 30 100 40 124
    C-CXS□20-40 40 110 134
    C-CXS□20-50 50 120 144
    C-CXS□20-75 75 145 60 169
    C-CXS□20-100 100 170 194
    C-CXS□25-10 80 30 78 28 14 2-M6×1.0 (per foramen) 60 35 6 12 12 30 2-Q6.9
    Per foramen
    2-011
    Counterbore
    profundum VI ".3     		2-M5X0.8
    Thread
    profundum VII ".5     		12 10 M6×1.0×18.5L 64 M6×1.0 8.5 15 46 15 10 82 13 9 9 4-1/8X0.8
    Thread
    profundum VI ".5
    Ahi diverticulum foraminis
    (Idem in
    oppositum)     		8-M8X0.8
    Thread
    profundum VII ".5
    (Idem in
    oppositum)     		2-M8
    X1.25
    Thread
    profundum 12     		M6×1.0×14L M6×1.×5L 30 106
    C-CXS□25-20 30 92 116
    C-CXS□25-30 40 102 126
    C-CXS□25-40 50 122 40 136
    C-CXS□25-50 75 147 146
    C-CXS□25-75 100 172 60 17
    C-CXS□25-100 196
    C-CXS□32-10 98 38 96 36 18 2-M6×1.0 (Per foramen) 75 44 8 16 14 30 2-06.9
    Per foramen
    2-011
    Counterbore
    profundum VI "3     		2-M5X0.8
    Thread
    profundum 8     		16 13 M8×12.5×23L 76 M8×1.25 9 19 56 19 10 92 20 11.5 10 4-1/8X0.8
    Thread
    profundum VI ".5
    Aeris diverticulum foraminis
    (Idem in
    oppositum)     		8-M5X0.8
    Thread
    profundum VII ".5
    (Idem in
    oppositum)     		2-M8
    X1.25
    Thread
    profundum 12     		M8×1.25×16L M8×1.25×8L 40 122
    C-CXS□32-20 20 102 132
    C-CXS□32-30 30 112 142
    C-CXS□32-40 40 122 50 152
    C-CXS□32-50 50 132 162
    C-CXS□32-75 75 157 70 187
    C-CXS□32-100 100 182 212
