MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes) Fornitores

Home / Products / Air Cylindri / Rodless Cylindri / MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes)

MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes) MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes)
  • MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes)
  • MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes)
Rodless Cylindri

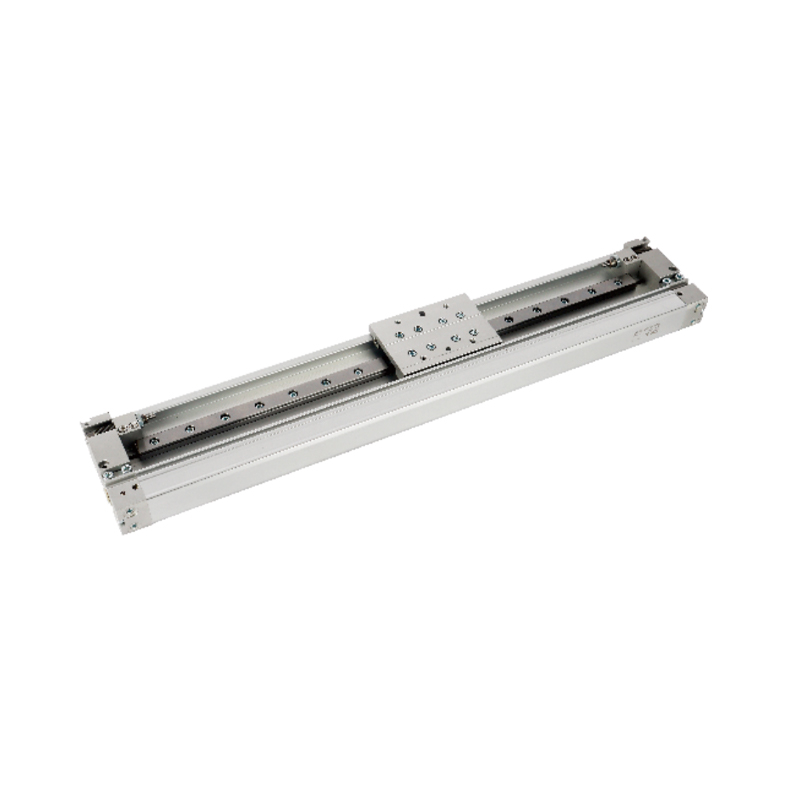

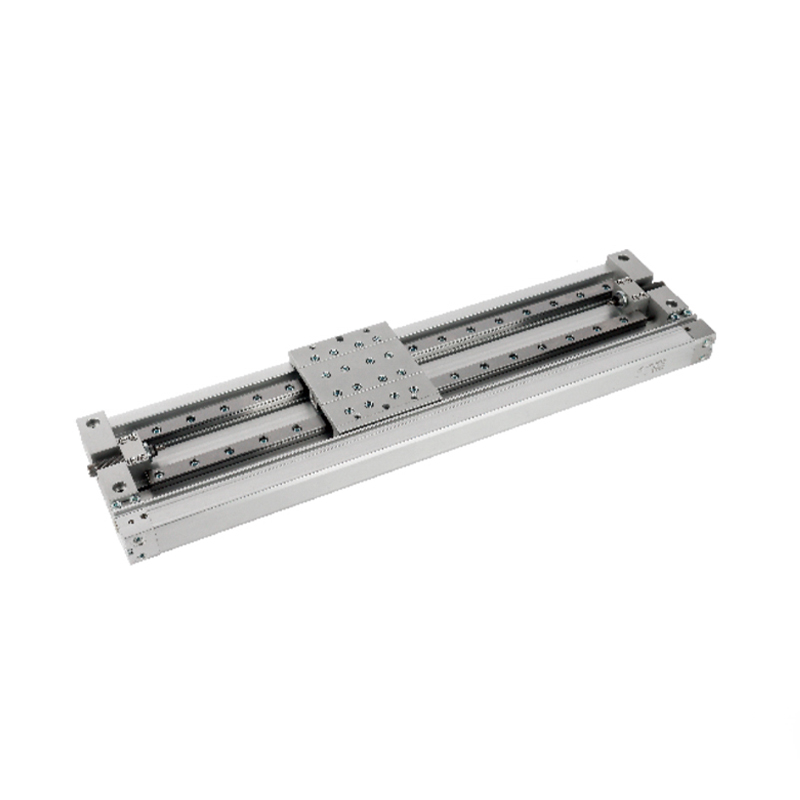

MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes)

MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/Linear Guide Type (2 Axes) is an integrated component designed for space-constrained working conditions. Agnoscit nexum rodentem inter lapsus et cylindrum corpus per technologiam mechanicam, et optimizat onus directionis effectus in compositione cum structura duce lineari, quae apta est ad praecisionem translationis ac positionem missionum altae rigiditatis.

Praecipua lineamenta sic describuntur:

1. consilio diversificatus est dux clausurae structurae

• MY2H genus (axis unius rector): instructus cum summus praecise ductore linearis systematis ad alvi radialem alvi inter motum tollendam et in altum iterabilitatem positionis invigilandi cum transferuntur opera leves sunt.

• HT typus (ducax axis dualis): Parallelam structuram dual-ducem adoptat ad superficiem stabilitatem firmandam augendo palmum, efficaciter reprimendo onus deflexionis torques et perficiendi rigiditatem augendi.

2. Dynamic ultricies mechanism natantes
Dual-ductor structura in media mechanismo dynamica aedificata est, quae parvam inaequalitatem institutionis superficiei adaptive haurire potest, abnormalem indutum ab inaequale vi in rail ductore causatum vitare et vitam servitutis extendere.

3. Lond proprium gradus accommodatio
• Subtilitas operandi levium operum: Unius-axis Exemplar apta est ad parvas vires pick et locum operationibus in conventu electronic electronico et probatio instrumenti ob notas railum frictioni duce.
• Stabilitas sub alto onere conditiones: Exemplar duplicatum-axis onus portantem accentus dispergit ut obviam rigidis obiectis gravia-onustis exigentiis importandis, ut officinas metallicas et multi- statio fixtures.

4. Consectetur anti-deflectentem facultatem
Axis duplicatus dux rail topologiae signanter ampliat facultatem resistendi torques fine fine rollover, praesertim periculum lapsus superans in applicationibus longis ictum evertendi, et curandi diligentiam translationis trajectoriae magnae molis operis.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type: Brevis Type (Cushion Cushion) / Basic Type: Latin Type (Aer Cushion)
SUCCESSIVO：MY1M Series Mechanice Joined Rodless Cylinder Illapsum Rector Type
  • Diameter cylindricus (mm) 16 25 40
    Liquor usus est Air
    Modus operating Duplex agens
    Pressura range 0.1~0.8MPa
    Pressura test pressura 1.2MPa
    Ambiens temperatus et fluidus temperatus 5~60℃
    Buffering Pulvinar pulvinar, hydrau pulvinar
    Oiling Noli (oleum non)
    Longitudo patientiae plaga 1.80
    Longitudo patientiae plaga M5×0.8 Rc1/8 Rc1/4

  • Model A B C G GB H L J LA LB LD LE (LL) LW M MM N  NC NE NH NT NV NW NX P
    MY2H16G 80 6.5 3.3 8.5 17 28 80 M3×0.5 70 50.4 3.4 4 40 83 7 M4×0.7 20 14 27 2 3.5 3.4 48.2 5.8 M5×0.8
    MY2H25G 105 9.5 5.4 10.7 19.5 37 110.8 M5×0.8 100 71.7 5.5 5 49.6 123 9 M5×0.8 25 21.3 35.5 3 5.3 5.5 71.8 8.5 1/8
    MY2H40G 165 14 32.5 15.5 31.5 58 180 M6×1 158 80.3 9 6 75 161 13 M6×1 4032.4 56.5 4 6.5 6.6 82.1 10.5 1/4
    P est copia cylindri aeris port. ※ Cochleae obturaculum pro P in MY2H16G obturaculum hexagonum internum est.

    Model PA PB** PC PD PE PF PG PH PP Q QQ QW R RR RW SS TT U UU VV X XX Y Z
    MY2H16G 40 40 7.2 2.8 3.7 3.5 4 5.1 5.3 152 16.4 40 5 5.3 40 9.7 12.5 4 3 10.5 6 12 5 160
    MY2H25G 60 60 8.2 6.6 2.7 5.5 9 7.5 8 198 20.4 60 5 8.5 50 14 19.3 5 4.4 15.3 7.5 14 5 210
    MY2H40G 100 70 5.5 8.5 5 17 9 9.5 16 312 25.5 57 8 11 53.5 21.5 35.4 6 2 29 9 23 8 330
    P est copia cylindri aeris port. ※ Cochleae obturaculum pro P in MY2H16G obturaculum hexagonum internum est.

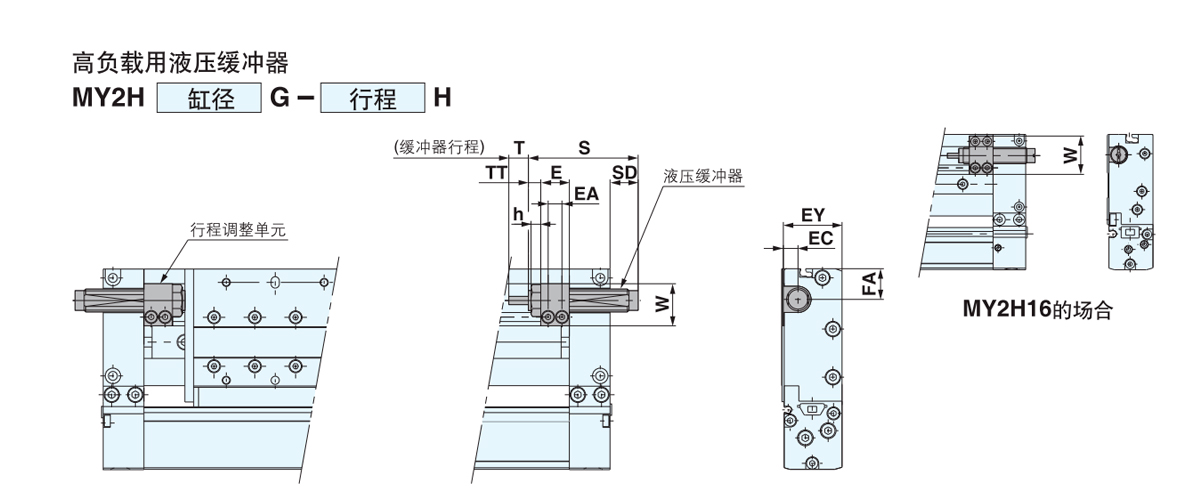

    Apta cylindri E EA EC EY FA h s T TT W Hydraulica Buffer Model
    MY2H16 14.4 7 6 27 12.5 4 40.8 6 5.6(MAX11.2) 16.5 RB0806
    MY2H25 17.5 8.5 9 36 19.3 5 46.7 7 7.1(MAX18.6) 25.8 RB1007
    MY2H40 25 13 13 57 17 6 67.3 12 10 (MAX26) 38 RB1412

    Apta cylindri E EA EC EY FA h S SD T TT W Hydraulica Buffer Model
    MY2H16 14.4 7 6 27 12.5 - 46.7 6.7 7 5.6(MAX11.2) 23.5 RB1007
    MY2H25 17.5 8.5 9 36 19.3 6 67.3 17.7 12 7.1(MAX18.6) 25.8 RB1412
    MY2H40 25 13 13 57 17 6 73.2 - 15 10(MAX26) 38 RB2015

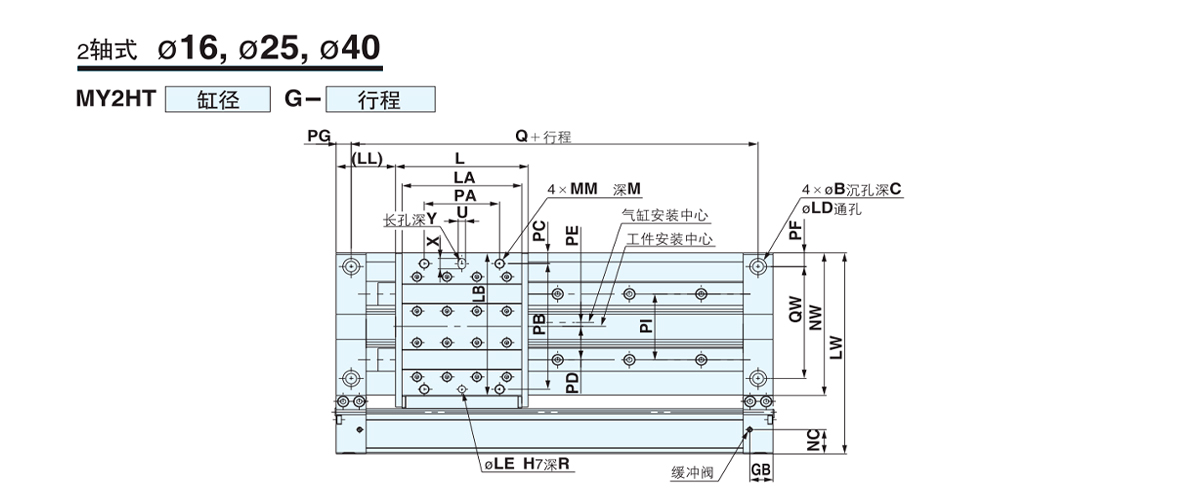

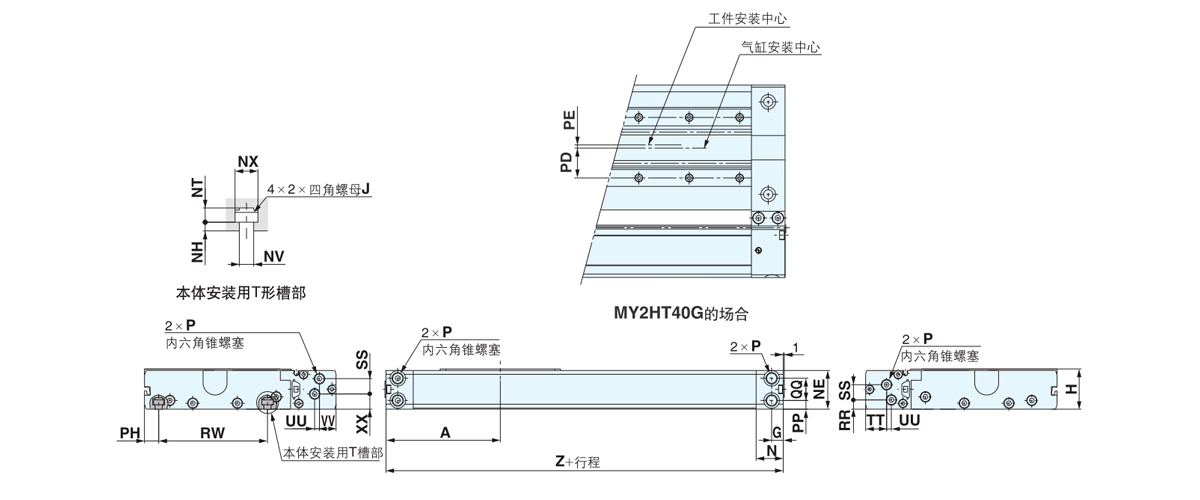

    Model A B C G GB H L J LA LB LD LE (LL) LW M MM N NC NE NH NT
    MY2HT16G 80 9.5 5.4 8.5 17 28 80 M4×0.7 70 87.4 5.5 5 40 120 9 M5×0.8 20 14 27 3 4.7
    MY2HT25G 105 14 8.6 10.7 19.5 37 110.8 M6×1 100 124.7 9 6 49.6 176 12 M8×1.25 25 21.3 35.5 4 6.5
    MY2HT40G 165 17.5 10.8 15.5 31.5 58 180 M8×1.25 158 148.3 11 8 75 229 16 M10×1.5 40 32.4 56.5 5 9
    P est copia cylindri aeris port. Cochleae obturaculum pro P in MY2HT16G obturaculum hexagonum internum est.

    Model NV NW NX P PA PB** PC PD PE PF PG PH PI PP Q QQ QW R RR RW SS TT
    MY2HT16G 4.5 85.2 7.3 M5×0.8 44 80 4 23 1 10 10 10.2 41 5.3 140 16.4 66 5 5.3 69 9.7 12.5
    MY2HT25G 6.6 124.8 10.5 1/8 63 110 9.4 29.2 3.4 12 12.5 13 57.6 8 185 20.4 98 8 8.5 100 14 19.3
    MY2HT40G 9 150.1 14 1/4 113 132 8.5 35.5 0.5 20 20 18.5 72 16 290 25.5 110 12 11 116 21.5 35.4
    P est copia cylindri aeris port. Cochleae obturaculum pro P in MY2HT16G obturaculum hexagonum internum est.

    Model U UU VV X XX Y Z
    MY2HT16G 5 3 10.5 7 12 5 160
    MY2HT25G 6 4.4 15.3 9 14 8 210
    MY2HT40G 8 2 29 12 23 12 330
    P est copia cylindri aeris port. Cochleae obturaculum pro P in MY2HT16G obturaculum hexagonum internum est.

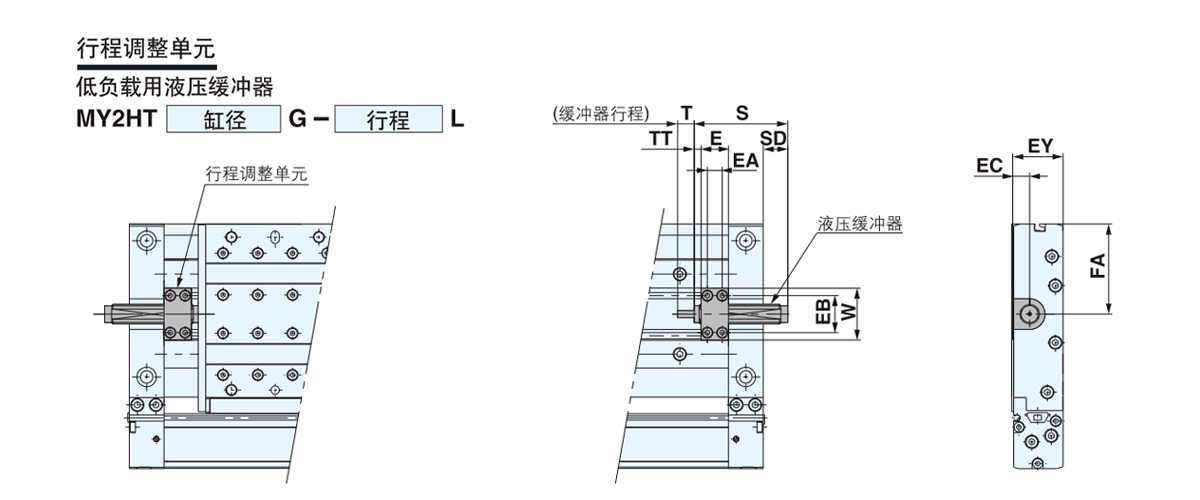

    Apta cylindri E EA EB EC EY FA S SD T TT W Hydraulica Buffer Model
    MY2HT16 14.4 7 21 8 27 46.5 46.7 6.7 7 5.6(MAX11.2) 28.6 RB1007
    MY2HT25 19.7 10.7 26.6 11.2 36 64.8 67.3 17.7 12 4.9(MAX16.4) 37.2 RB1412
    MY2HT40 29.1 15.1 37 17.2 57 74.5 73.2 - 15 5.9(MAX21.9) 51.6 RB2015

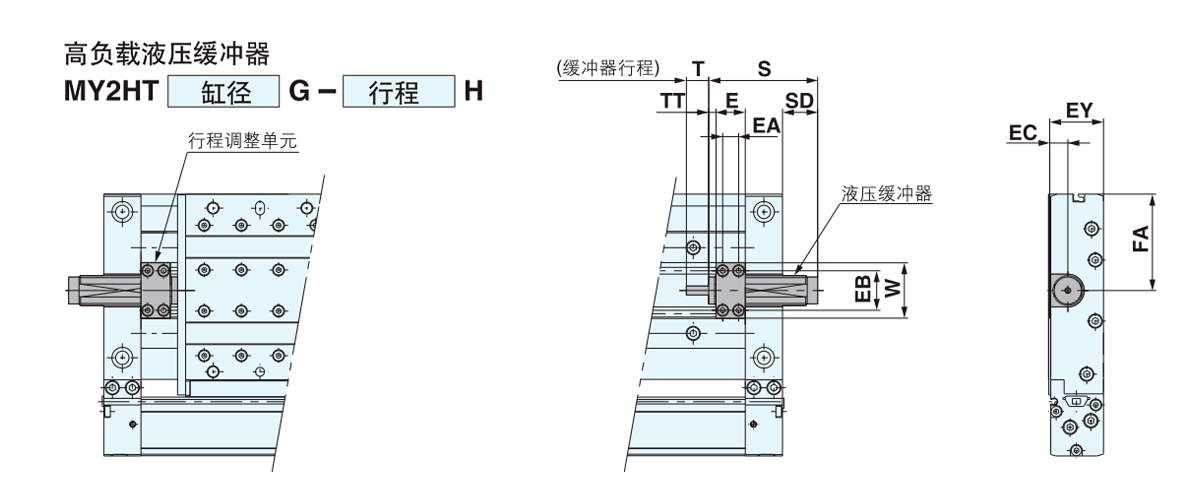

    Apta cylindri E EA EB EC EY FA S SD T TT W Hydraulica Buffer Model
    MY2HT16 14.4 7 21 8 27 46.5 67.3 27.3 12 5.6(MAX11.2) 28.6 RB1412
    MY2HT25 19.7 10.7 26.6 11.2 36 64.8 73.2 23.6 15 4.9(MAX16.4) 37.2 RB2015
    MY2HT40 29.1 15.1 37 17.2 57 74.5 99 24 25 5.9(MAX21.9) 51.6 RB2725
