MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type: Brevis Type (Cushion Cushion) / Basic Type: Latin Type (Aer Cushion) Fornitores

Home / Products / Air Cylindri / Rodless Cylindri / MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type: Brevis Type (Cushion Cushion) / Basic Type: Latin Type (Aer Cushion)

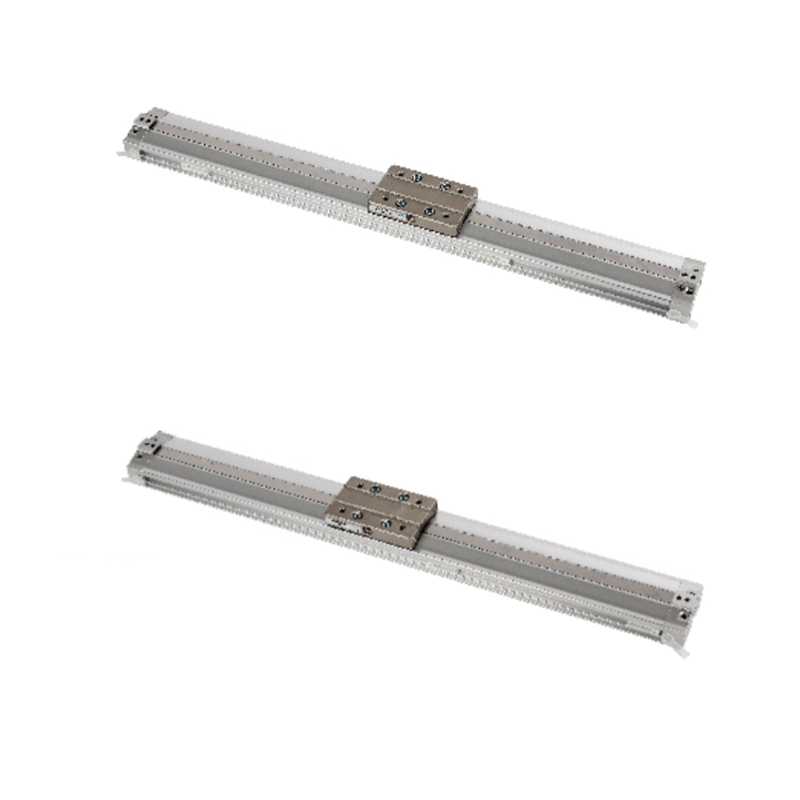

MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type: Brevis Type (Cushion Cushion) / Basic Type: Latin Type (Aer Cushion)
  • MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type: Brevis Type (Cushion Cushion) / Basic Type: Latin Type (Aer Cushion)
Rodless Cylindri

MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type: Brevis Type (Cushion Cushion) / Basic Type: Latin Type (Aer Cushion)

MY3A/3B Series Mechanica Articulus Rodless Cylindri Basic Type est elementum coegi compactum lineari quo utitur copula mechanica interna ad potestatem tradendam. Core consilium eius anconum extensum cylindrici traditionalis eliminat et motum vim ad onus externum per lapsus internum transmittit.

Integrated dux cancellos - Corpus cylindricum directe integrat altam rigiditatem lineare structuram ducens, ut praecise regimen et subsidium externum onus suggestum praebeat.

Attenti onus afferentem - Gratias ductore plenario rail consilio, suggestum onus externum facultatem habet ut sarcinas contractas directe sustineat sine necessitate machinarum ductoris additionalis.

"Mechanical copulatione tradenda" - Piston internum et onus externum suggestum obtinent transmissionem potentiae non-contatae per structuram meshing mechanicam, vitando vim magneticam limitationem cylindri magnetici traditionalis copulationis.

-Stroke et tutela - Varii specificationum plagarum in promptu sunt, et in rasoriis sigillis constructa signanter configurantur ad fidem requisitorum ambituum industrialium generalium..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：MY2H/HT Series Mechanical Joint Rodless Cylinder Linear Guide Type (1 Axis)/ Linear Guide Type (2 Axes)
  • Diameter cylindricus (mm) 1,620 2,532 40 5,063
    Liquor usus est Air
    Modus operating Duplex agens
    Operans pressura range 0.15~0.8MPa
    Pressura test pressura 1.2MPa
    Ambiens temperatus et fluidus temperatus 5~60℃
    Buffering Codex cushioning (MY3A)/Air cushioning (MY3B)
    Lubricatio Noli (oleum non)
    Longitudo patientiae plaga Infra 1000 mm 1.8, 1001 mm ad 2.8 .
    Limbis nexus diametri (Rc, NPT, G) M5×0.8 1/8 1/4 3/8

  • Exemplar A B C E G H HG JJ KK L LD LL LW M MM N
    MY3A16 55 6 18 2 9.5 27 5 M4×0.7 5 65 3.5 22.5 41 6 M4×0.7 13.5
    MY3A20 64 7.5 22 2 9.5 32 6.5 M4×0.7 8.5 80 4.5 24 51 6 M4×0.7 15.5
    MY3A25 75 9.5 25 2 14 37 7.4 M5×0.8 7.5 95 5.5 27.5 61 8 M5×0.8 20
    MY3A32 96.5 11 32.5 2 14 45 9 M5×0.8 7.5 128 6.6 32.5 76 8 M5×0.8 22.5
    MY3A40 120 14 38 2 18 54 12 M6×1 12 160 8.6 40 90 12 M6×1 27
    MY3A50 137 14 49 3 16 67 14 M6×1 15.5 190 9 42 112 12 M6×1 27
    MY3A63 160 17 60 3 20.5 84 16.5 M8×1.25 22 220 11 50 134 16 M8×1.25 31
    Exemplar NE NG NH NW P PA PB** PC PD PG Q QW T TT UU YW Z
    MY3A16 22.5 8 17.2 43 M5×0.8 44 26 32.5 4 4 102 19 7 6.5 30 42 110
    MY3A20 27.5 10 20.8 53 M5×0.8 54 30 40 5 4.5 119 23 8 9 35 52 128
    MY3A25 32 10 24 65 Rc,NPT,G1/8 64 40 47.5 6 6 138 30 10 9 47 62 150
    MY3A32 39 14 31 79 Rc,NPT,G1/8 92 44 64 6 7 179 33 10 13.5 52 77 193
    MY3A40 46 15 37 94 Rc,NPT,G1/4 112 60 80 7.5 8.5 223 40 14 14 66 92 240
    MY3A50 58 25 47.5 116 Rc,NPT,G3/8 142 66 95 8.5 8.5 257 44 15 21 74 114 274
    MY3A63 70 29 58 139 Rc,NPT,G3/8 162 84 110 10 10 300 64 16 20 99 136 320

    Exemplar A B C E G H HG JJ KK L LD LL LW M MM 1
    N
    MY3B16 61 6 18 2 9.5 27 5 M4×0.7 5 65 3.5 28.5 41 6 M4×0.7 13.5
    MY3B20 74 7.5 22 2 9.5 32 6.5 M4×0.7 8.5 80 4.5 34 51 6 M4×0.7 15.5
    MY3B25 89 9.5 25 2 14 37 7.4 M5×0.8 7.5 95 5.5 41.5 61 8 M5×0.8 20
    MY3B32 112.5 11 32.5 2 14 45 9 M5×0.8 7.5 128 6.6 48.5 76 8 M5×0.8 22.5
    MY3B40 138 14 38 2 18 54 12 M6×1 12 160 8.6 58 90 12 M6×1 27
    MY3B50 155 14 49 3 16 67 14 M6×1 15.5 190 9 60 112 12 M6×1 27
    MY3B63 178 17 60 3 20.5 84 16.5 M8×1.25 22 220 11 68 134 16 M8×1.25 31
    Exemplar NE NG NH NW P PA PB** PC PD PE PF PG Q QW T TT UU YW Z
    MY3B16 22.5 8 17.2 43 M5×0.8 44 26 32.5 4 9.7 8.5 4 114 19 7 6.5 30 42 122
    MY3B20 27.5 10 20.8 53 M5×0.8 54 30 40 5 11.2 10 4.5 139 23 8 9 35 52 148
    MY3B25 32 10 24 65 Rc,NPT,G1/8 64 40 47.5 6 14.5 12.2 6 166 30 10 9 47 62 178
    MY3B32 39 14 31 79 Rc,NPT,G1/8 92 44 64 6 16 15 7 211 33 10 13.5 52 77 225
    MY3B40 46 15 37 94 Rc,NPT,G1/4 112 60 80 7.5 19.5 16.5 8.5 259 40 14 14 66 92 276
    MY3B50 58 25 47.5 116 Rc,NPT,G3/8 142 66 95 8.5 20.5 20 8.5 293 44 15 21 74 114 310
    MY3B63 70 29 58 139 Rc,NPT,G3/8 162 84 110 10 23.5 27.5 10 336 64 16 20 99 136 356

    Apta cylindri ES EC EY FC h S SD TS TR TU W Hydraulica Buffer Exemplar
    MY3B16 14.1 21.5 26.5 34.5 2.4 40.8 25.8 6 0.9 25 62 RB0806
    MY3B20 14.1 26.5 31.5 41 2.4 40.8 22.3 6 4.4 21.5 72 RB0806
    MY3B25 20.1 29.8 36.5 51.5 3.6 46.7 25.2 7 1.4 28.5 90 RB1007
    MY3B32 20.1 37.5 44.5 60 3.6 46.7 20.7 7 5.9 24 105 RB1007
    MY3B40 30.1 45 53.5 72.5 5 67.3 36.3 12 0.9 39 128 RB1412
    MY3B50 30.1 56.5 66.5 88 5 67.3 34.3 12 2.9 37 150 RB1412
    MY3B63 36.1 70.5 83.5 108 6 73.2 36.2 15 0.9 43 178 RB2015

    Apta cylindri ES EC EY FC h S SD TS TR TU W Hydraulica Buffer Exemplar
    MY3B16 14.1 23 29.5 34.5 2.4 46.7 31.7 7 0.9 25 62 RB1007
    MY3B20 14.1 27.5 34 41 2.4 46.7 28.2 7 4.4 21.5 72 RB1007
    MY3B25 20.1 31.8 41 52.2 3.6 67.3 45.8 12 1.4 28.5 90 RB1412
    MY3B32 20.1 39.5 49 60.5 3.6 67.3 41.3 12 5.9 24 105 RB1412
    MY3B40 30.1 48 60.5 73.5 5 73.2 42.2 15 0.9 39 128 RB2015
    MY3B50 30.1 58.5 71 88.5 5 73.2 40.2 15 2.9 37 150 RB2015
    MY3B63 36.1 74.5 91 108 6 99 62 25 0.9 43 178 RB2725

    Exemplar Apta cylindri A B C D E F G H J
    MY-S16 MY3A16 ·MY3B16 53 63.6 15 26 4.9 3 6.5 3.4 M4×0.7
    MY-S20 MY3A20 ·MY3B20 65 77.6 25 38 6.4 4 8 4.5 M5×0.8
    MY-S25B MY3A25 ·MY3B25 77 91 35 50 8 5 9.5 5.5 M6×1
    MY-S32B MY3A32 ·MY3B32 97 115 45 64 11.7 6 11 6.6 M8×1.25
    MY3A40 ·MY3B40 112 130
    MY-S50B MY3A50 ·MY3B50 138 160 55 80 14.8 8.5 14 9 M10×1.5
    MY3A63 ·MY3B63 160 182
    Nota: Latus subsidia uit in paria (dextera) .
