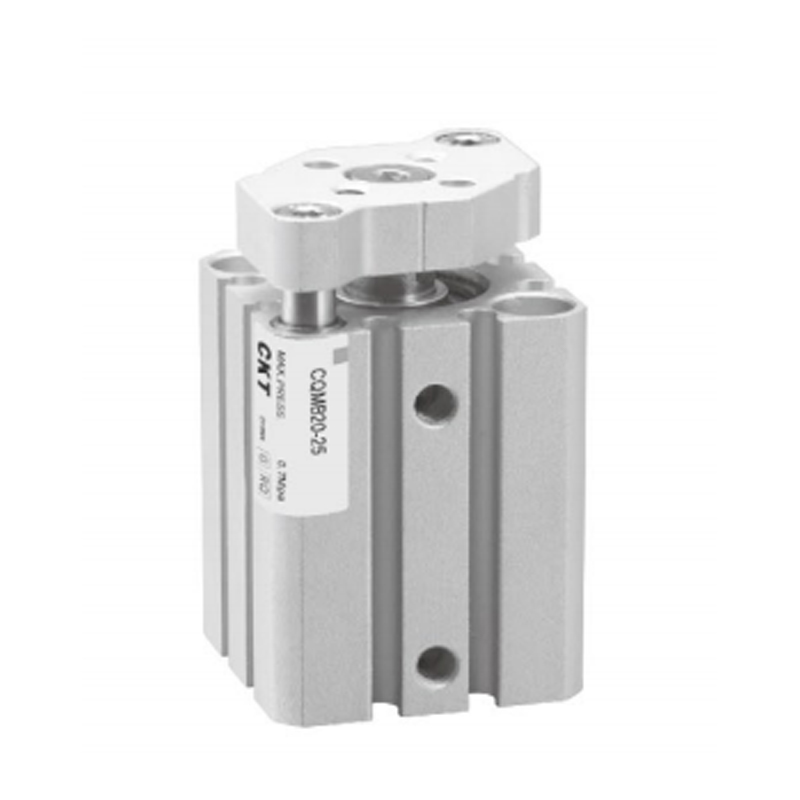

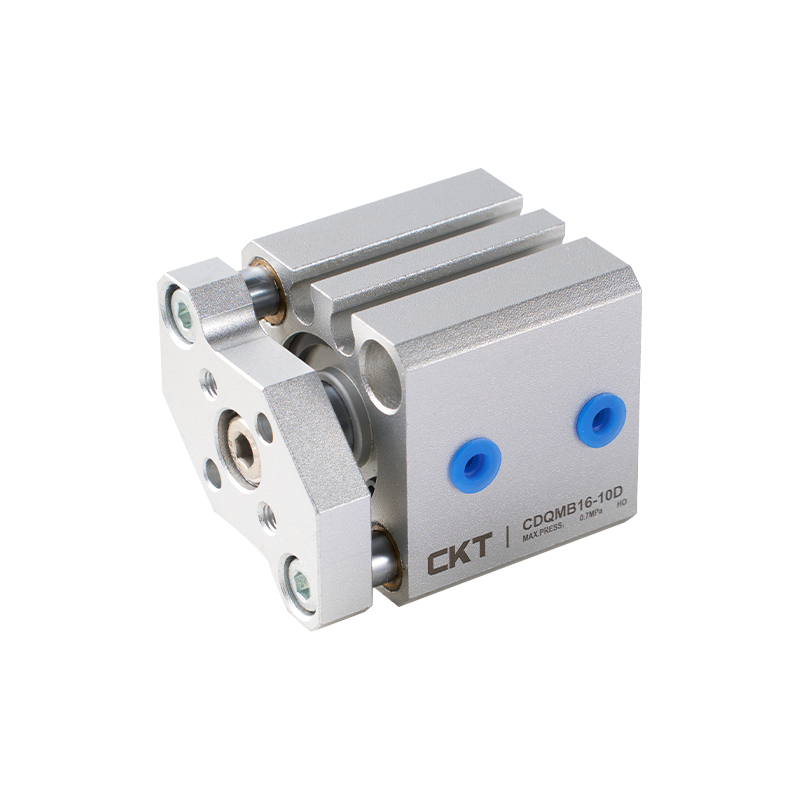

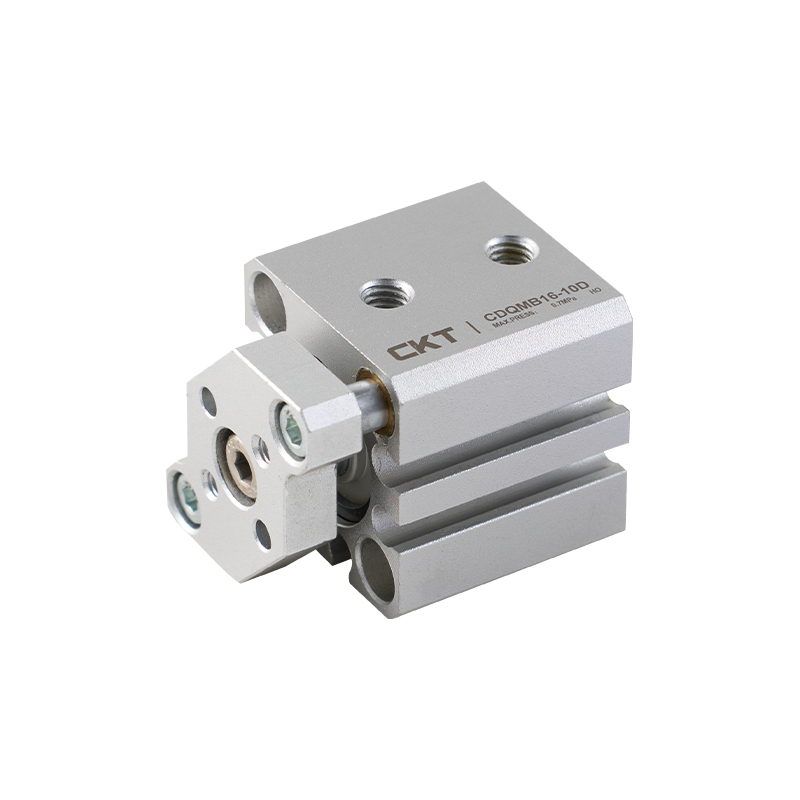

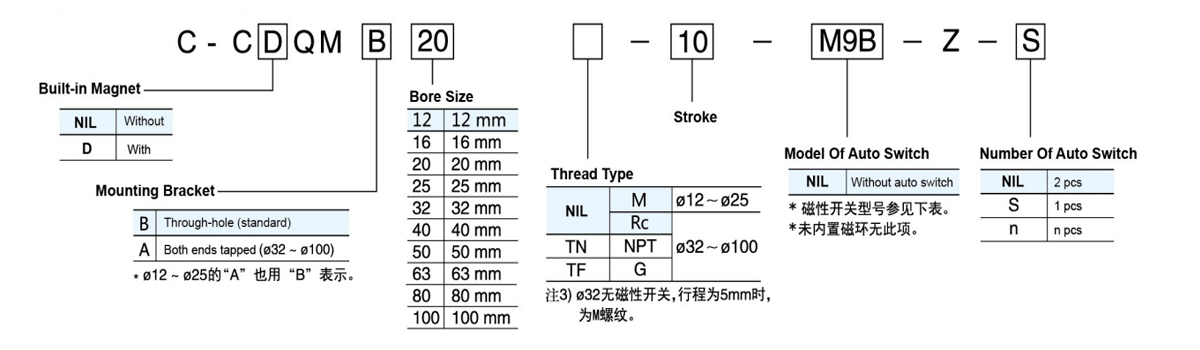

CQM Series Cylindri tenuis (Guide Rod Type)

CQM Series Cylindri tenuis (Guide Rod Type) designatus est summus rigiditatis rector et pacti spatii condiciones. Sustentationem oneris integrat et functiones anti-torsionis per dualem virgae structuram ductori ad necessitates certae positionis occurrendas.

1. standardises et confirmati structuram
Secundum JIS normas specificas, duplicem regulam virgae integrae consilium assumit ut structuram rigiditatem et stabilitatem perficiat.

2. Spatium aptabilitas
Corpus compactum signanter redigit ad institutionem spatii requisita et ad missiones automationi spatium arctatum apta est.

3. Composita anti eccentrici onus facultatem
Dualis ratio virgae rector simul gyrationis offsets supprimit, optimum anti-flexum et anti-torsionis effectum praebet et condiciones oneris asymmetricis accommodat.

4. High onus convenientiae
Mechanismus dux virgae magnas onera motus et vires laterales ferre potest, effectum accentus cantileverium condiciones in corpus cylindricum reducens.

5. Subtilitas dux imperium
Finis non rotationis accuratio est ≤±0.2°, summus praecisio motus linearis trajectoriae.

6. Installation convenientiae
Summa corporis dimensiones institutionis interoperabiles sunt cum seriei cylindrici tenui mensurae earumdem specificationum, quae celeri substitutione vel upgrade instrumenti sustinentur..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CQS Series Nova Cylindri tenuis
SUCCESSIVO：CQ2 Series Tenues Cylindri (Large Bore Size)
  • Actio Una virga, duplex agens
    Max.Operating Pressura 1.0  MPa
    Min.Operating
    Pressura     		12,Ø16 0.12   MPa
    Ø20~0100 0.1  MPa
    Ambinet & Fluid Temperature Sine auto switch: -10 ~ 70℃, Cum auto switch: -10 ~ 60℃ (Nec frigore)
    Pulvinar Utrimque bumper
    Longitudo plaga tolerantia 10mm
    Piston Volo Ø12~Ø40 50~D     mm/s
    50~Ø100 50~ 300     mm/s

  • Bore
    Magnitudo
    (mm)     		Plaga
    Range

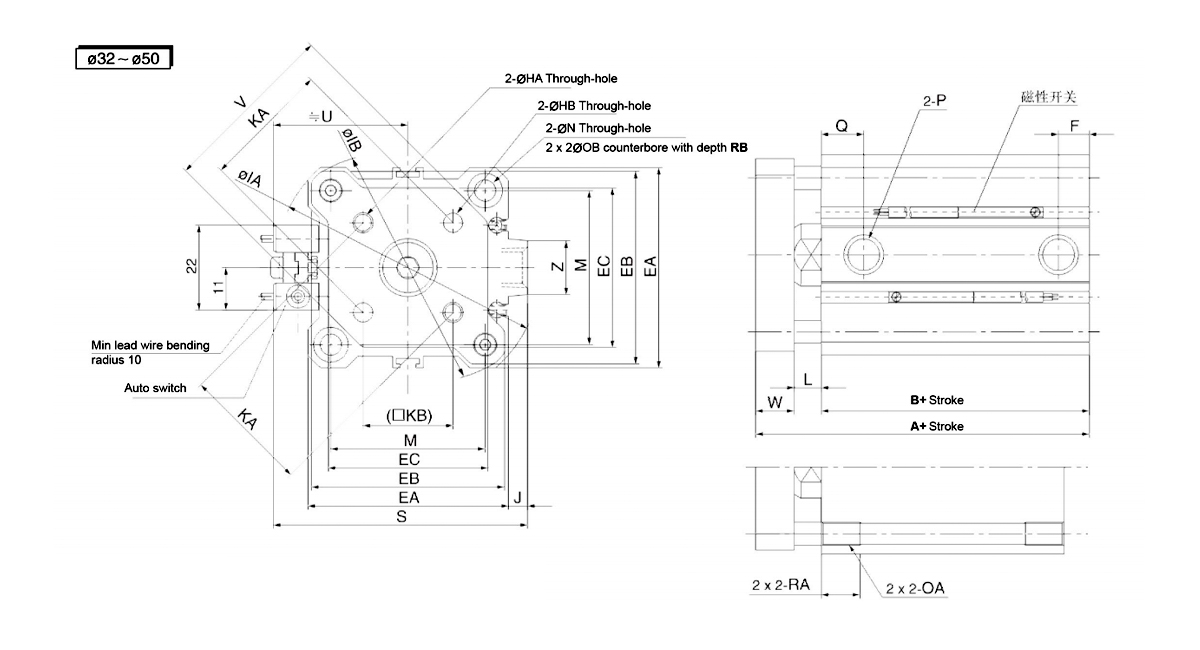

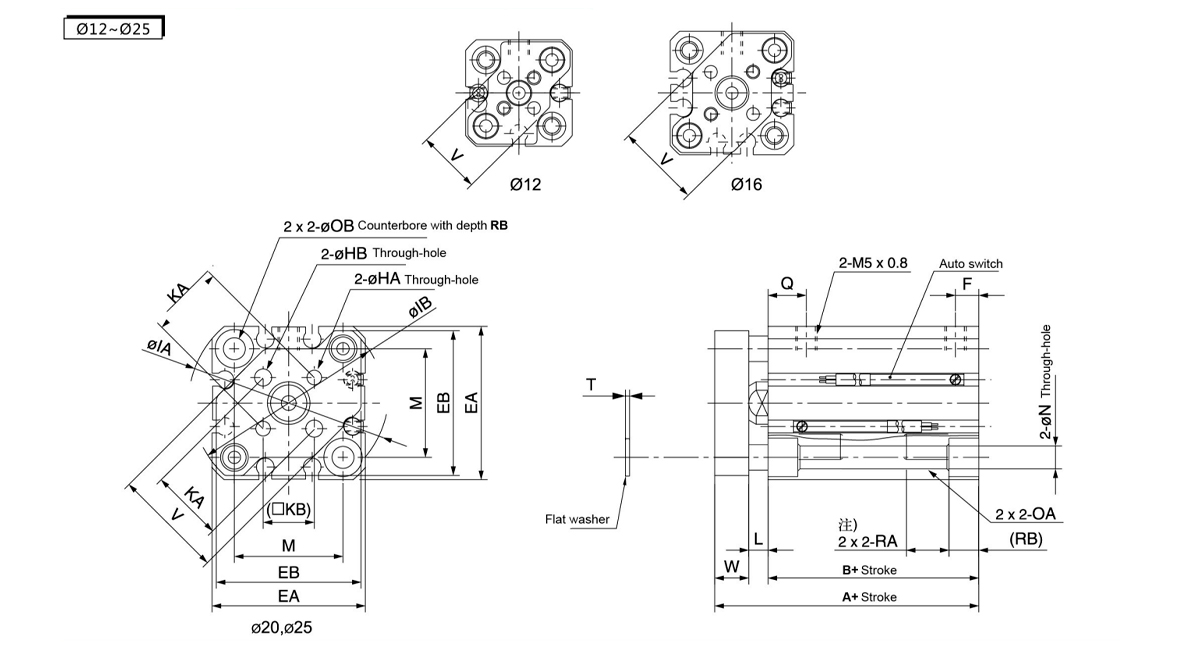

    (mm)     		Sine Auto Switch Cum Auto Switch EA EB F HA OA HB IA IB KA KB L M N OB Q RA RB T V W
    A B A B
    12 5~30 26.5 17 31.5 22 25 24 5 M3×0.5 M4×0.7 3 32 31.5 10 7.1 3.5 15.5 3.5 6.5 7.5 7 4 0.5 14.9 6
    16 5~30 26.5 17 31.5 22 29 28 5 M3×0.5 M4×0.7 3 38 37 14 9.9 3.5 20 3.5 6.5 7.5 7 4 0.5 20 6
    20 5~50 32 19.5 42 29.5 36 34 5.5 M4×0.7 M6×1.0 4 47 45.5 17 12 4.5 25.5 5.4 9 9 10 7 1 26 8
    25 5~50 35.5 22.5 45.5 32.5 40 38 5.5 M5×0.8 M6×1.0 5 52 50.5 22 15.6 5 28 5.4 9 11 10 7 1 30 8

    Utraque   Fines  Tapped  (C-CQMA)
    Bore Size
    (mm)     		HA OA HB IA IB J KA KB L M N OB RA RB S U V W Z
    32 M5×0.8 M6×1.0 5 60 58.5 4.5 28 19.8 7 34 5.5 9 10 7 58.5 31.5 38 10 14
    40 M5×0.8 M6×1.0 5 69 67.5 5 33 23.3 7 40 5.5 9 10 7 66 35 46 10 14
    50 M6×1.0 M8×1.25 6 86 84.5 7 42 29.7 8 50 6.6 11 14 8 80 41 58 12 19
    63 M6×1.0 M10×1.5 6 02 103 100 7 50 02 35.4 8 60 9 14 18 10.5 93 47.5 69 12 19
    80 M8×1.25 M12×1.75 8 02 132 129 6 65 02 46 10 77 11 17.5 22 13.5 112.5 57.5 89 14 26
    100 M10×1.5 M12×1.75 10 0.2 156 153 6.5 80 02 56.6 10 94 11 17.5 22 13.5 132.5 67.5 113 16 26


    Bore Size
    (mm)
    Plaga Range

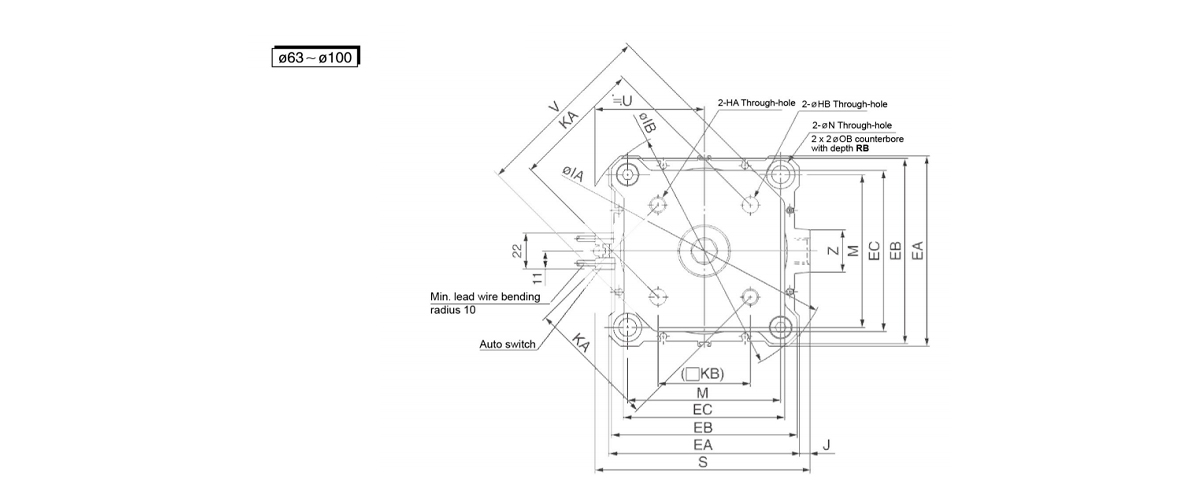

    (mm)     		Sine Auto Switch Cum Auto Switch EA EB EC
    A B F Q P A B F Q P
    - TN TF - TN TF
    32 5 40 23 5.5 11.5 M5×0.8 - - 50 33 7.5 10.5 Rc1/8 NPT1/8 G1/8 45 43 34.4
    10~50 7.5 10.5 Rc1/8 NPT1/8 G1/8
    75 ·100 50 33
    40 5~50 46.5 29.5 8 11 Rc1/8 NPT1/8 G1/8 56.5 39.5 8 11 Rc1/8 NPT1/8 G1/8 52 50 41.4
    75 ·100 56.5 39.5
    50 10~50 50.5 30.5 10.5 10.5 Rc1/4 NPT1/4 G1/4 60.5 40.5 10.5 10.5 Rc1/4 NPT1/4 G1/4 64 62 53.4
    75 ·100 60.5 40.5
    63 10~50 56 36 10.5 15 Rc1/4 NPT1/4 G1/4 66 46 10.5 15 Rc1/4 NPT1/4 G1/4 77 74 59.6
    75 ·100 66 46
    80 10~50 67.5 43.5 12.5 16 Rc3/8 NPT3/8 G3/8 77.5 53.5 12.5 16 Rc3/8 NPT3/8 G3/8 98 95 79.5
    75 ·100 77.5 53.5
    100 10~50 79 53 13 23 Rc3/8 NPT3/8 G3/8 89 63 13 23 Rc3/8 NPT3/8 G3/8 117 114 99
    75 ·100 89 63
