CQS Series Nova Cylindri tenuis Fornitores

Home / Products / Air Cylindri / Tenues Cylindri / CQS Series Nova Cylindri tenuis

CQS Series Nova Cylindri tenuis CQS Series Nova Cylindri tenuis CQS Series Nova Cylindri tenuis
  • CQS Series Nova Cylindri tenuis
  • CQS Series Nova Cylindri tenuis
  • CQS Series Nova Cylindri tenuis
Tenues Cylindri

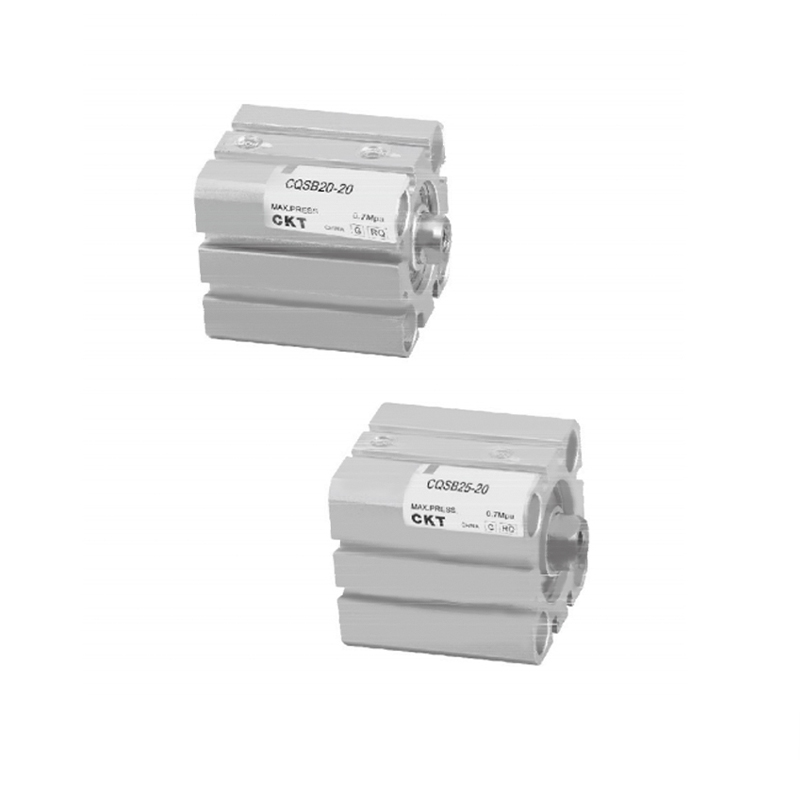

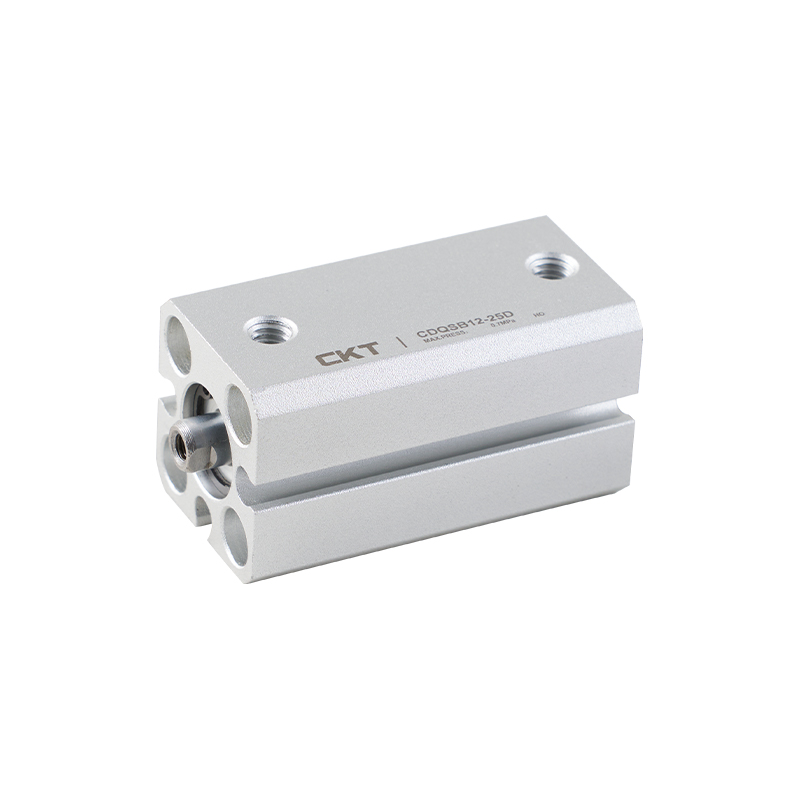

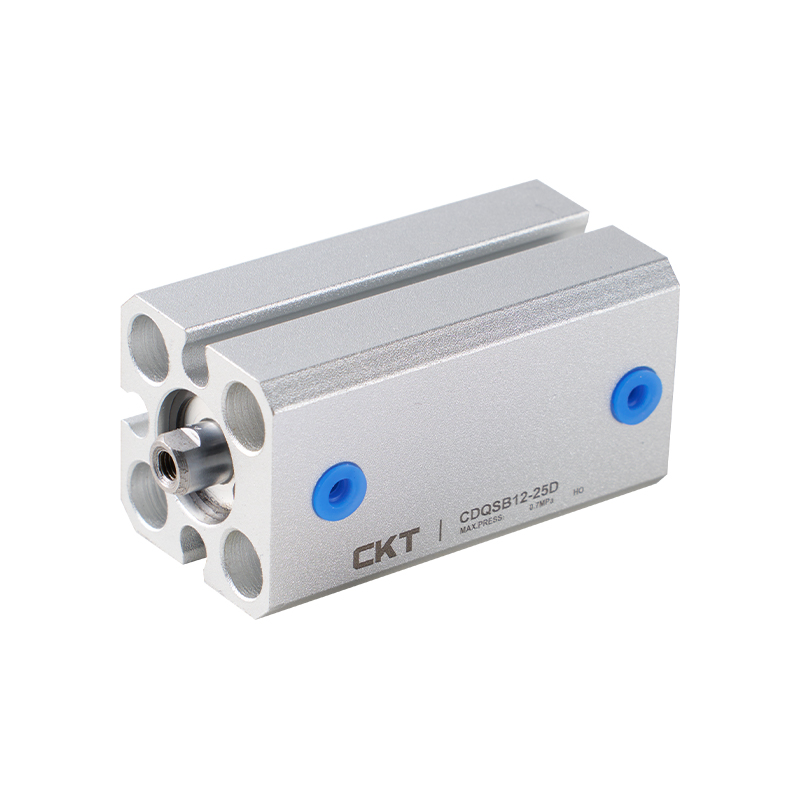

CQS Series Nova Cylindri tenuis

Ut agens pneumaticum in agro modernae automationis industrialis, series CQS Novae Cylindri tenuis consecutus est optimam compositionem spatii occupationis et conformationis functionis per structuram innovationem ordinatam praebens solutionem magis flexibilem pro instrumento pacti extensionis.

1. Multi directional institutionem convenientiae design
Cylindrus corpus multi-dimensionale magneticum switch institutionis interfaciei integrat. Inter eos, parva cylindrica diametri specificatio praebet tres-vias institutiones referentiae superficiei, et mediae et magnae cylindrici diametri specificationes extenduntur ad modum institutionis quadratae inter portum referentiae superficiei, quod insigniter ampliat extensionem libertatis et aptabilitatem elementi sentiendi.

2. Spatium utendo ipsum architecturae
Cum positivis compressione conformationis compactae adhibitis, motus key membra topologically optimized sunt. Sub praemissa custodiae norma output perficiendi, occupatio spatii axialis et radialis simul reducitur, efficaciter spatium internum instrumentorum facultates solvens.

3. composita institutionem structuram
Basis integrat per foramen acumen et liciatorium infixae cursoribus dualis institutionis. Per interfaciem modularis consilio, cum nexu exigentiis machinarum ametarum compatitur, multiplicitatem systematis integrationis minuit, ac celeri instruere in missionibus multiplicibus sustinet..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：SDA Series Cylindri tenuis
SUCCESSIVO：CQM Series Cylindri tenuis (Guide Rod Type)
  • Bore Size (mm) 12 16 20 25
    Liquor Air
    Actio Duplex agens, unum agens: Spring reditus / extend
    Probatur Pressura 1.5MPa{15.3kgf/cm²}
    Max.Operating Pressura 1.0MPa{10.2kgf/cm²}
    Ambiens & Fluid Temperature -10℃~ 60℃
    Virga finem Thread Male stamen (Latin), Male stamen (Option)
    Pulvinar Nil
    Piston Volo 50~500mm/s
    Longitudo plaga tolerantia 1
    *Lubrication Non requiratur
    Adscendens Per foramen utrumque percussoque (Universal)
    Portus Location M5×0.8
    * Quaeso uti ISOVG32 si uti vis lubricationis.

  • Plaga/exemplum De  Auto  Switch
    Bore Size
    (mm)     		Standard Stroke(mm) Auto SWITCH
    Duplex agens unum agens Genus institutionem cuniculum
    12 5,10,15
    20,25,30;     		510 A93(V)
    M9N(V)
    M9B(V)
    F9BA     		A96(V)
    F9NW
    M9P(V)
    16
    20 5,10,15,20,25
    30,35,40,45,50     		510
    25

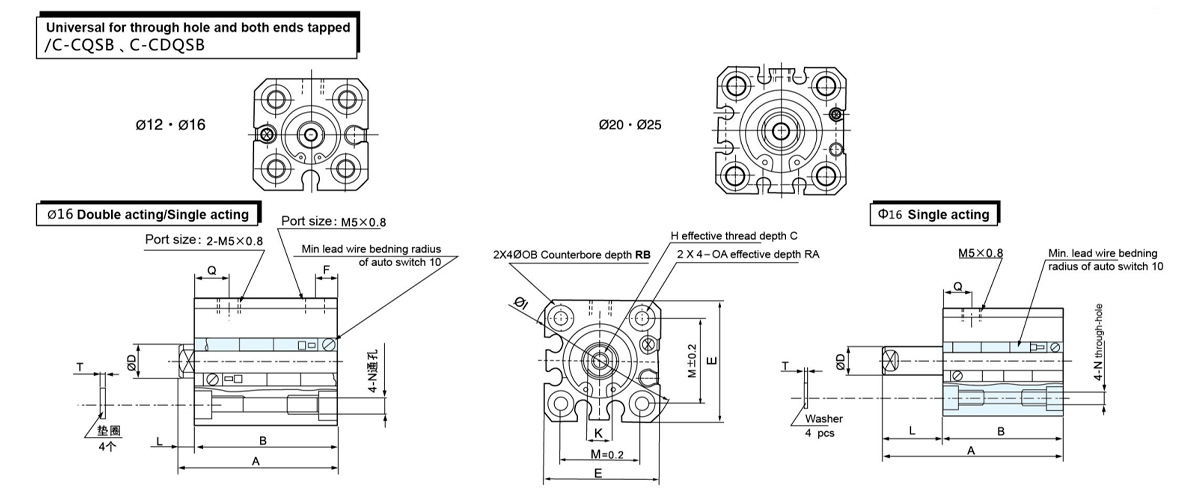

  • Ratio duplex agendi / una agendi
    Lorem
    Bore Size
    (mm)     		Standard
    C D E H I K M N OA OB RA RB T Q
    12 6 6 25 M3×0.5 32 5 15.5 3.5 M4×0.7 6.5 7 4 0.5 7.5
    16 8 8 29 M4×0.7 38 6 20 3.5 M4×0.7 6.5 7 4 0.5 7.5
    20 7 10 36 M5×0.8 47 8 25.5 5.4 M6×1.0 9 10 7 1 9
    25 12 12 40 M6×1.0 52 10 28 5.4 M6×1.0 9 10 7 1 11

    Duplex agens (ST=Plaga)
    Lorem
    Bore Size
    (mm)     		Plaga
    Range
    (mm)     		Basic Type Inaedificata Magnet
    A B F L Q A B
    12 5~30 20.5 st 17 st 5 3.5 7.5 25.5 st 22 st
    16 5~30 20.5 st 17 st 5 3.5 7.5 25.5 st 22 st
    20 5~50 24 st 19.5 st 5.5 4.5 9 34 st 29.5 st
    25 5~50 27.5 st 22.5 st 5.5 5 11 37.5 st 32.5 st

    Unius agens (ST=Plaga)

    Lorem
    Bore Size
    (mm)
    Plaga
    Range
    (mm)     		Standard Inaedificata Magnet
    A B F L A B
    5ST 10ST 5ST 10ST 5ST 10ST 5ST 10ST
    12 510 25.5 30.5 22 27 5 3.5 30.5 35.5 27 32
    16 25.5 30.5 22 27 5 3.5 30.5 35.5 27 32
    20 29 34 24.5 29.5 5.5 4.5 39 44 34.5 39.5
    25 32.5 37.5 27.5 32.5 5.5 5 42.5 47.5 37.5 42.5

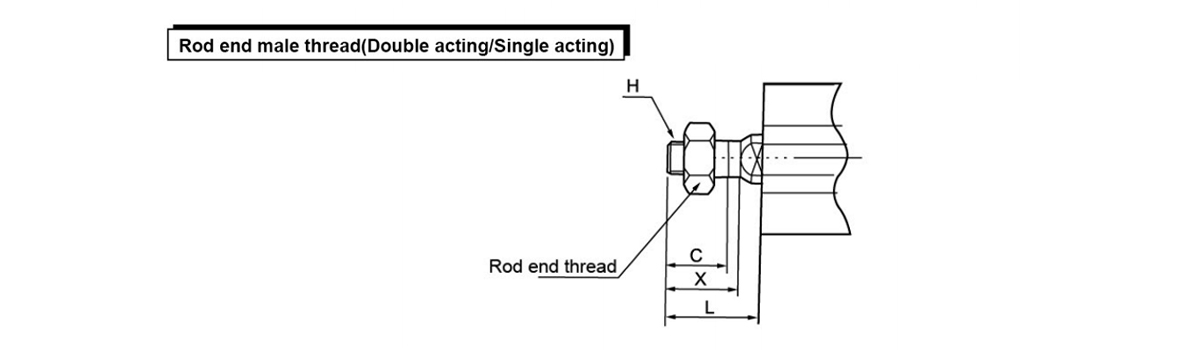

    Lorem
    Bore Size
    (mm)     		C H L X
    12 9 M5×0.8 14 10.5
    16 10 M6×1.0 15.5 12
    20 12 M8×1.25 18.5 14
    25 15 M10×1.25 22.5 17.5

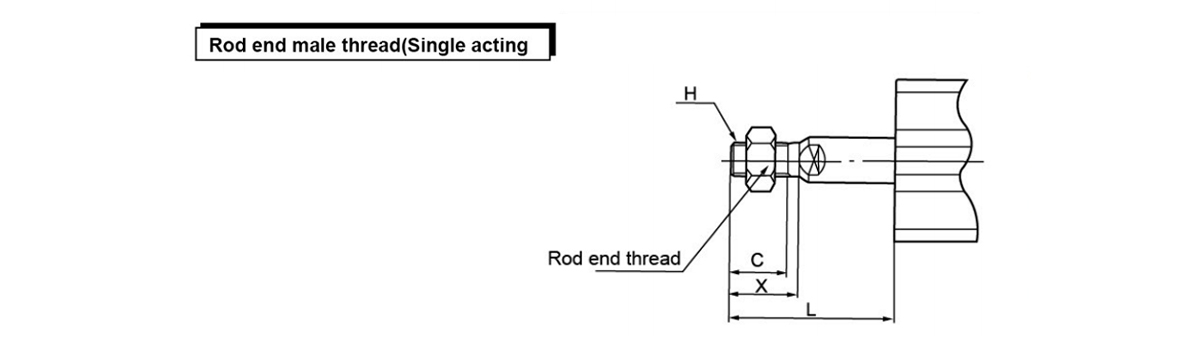

    Lorem
    Bore Size
    (mm)     		C H L X
    5ST 10ST
    12 9 M5×0.8 19 24 10.5
    16 10 M6×1.0 20.5 25.5 12
    20 12 M8×1.25 23.5 28.5 14
    25 15 M10×1.25 27.5 32.5 17.5

    Unius agendi (ST=Itinerario)

    Lorem
    Bore Size
    (mm)
    Plaga
    Range
    (mm)     		Standard Inaedificata Magnet
    A B L Q A B
    5ST 10ST 5ST 10S 5 ST 10ST 5ST 10ST 5 ST 10ST
    12 510 30.5 40.5 22 27 8.5 13.5 7.5 35.5 45.5 27 32
    16 30.5 40.5 22 27 8.5 13.5 7.5 35.5 45.5 27 32
    20 34 39 24.5 29.5 9.5 14.5 9 44 49 34.5 39.5
    25 37.5 42.5 27.5 32.5 10 15 11 47.5 52.5 37.5 42.5
