SDA Series Cylindri tenuis Fornitores

Home / Products / Air Cylindri / Tenues Cylindri / SDA Series Cylindri tenuis

SDA Series Cylindri tenuis SDA Series Cylindri tenuis SDA Series Cylindri tenuis SDA Series Cylindri tenuis SDA Series Cylindri tenuis
  • SDA Series Cylindri tenuis
  • SDA Series Cylindri tenuis
  • SDA Series Cylindri tenuis
  • SDA Series Cylindri tenuis
  • SDA Series Cylindri tenuis
Tenues Cylindri

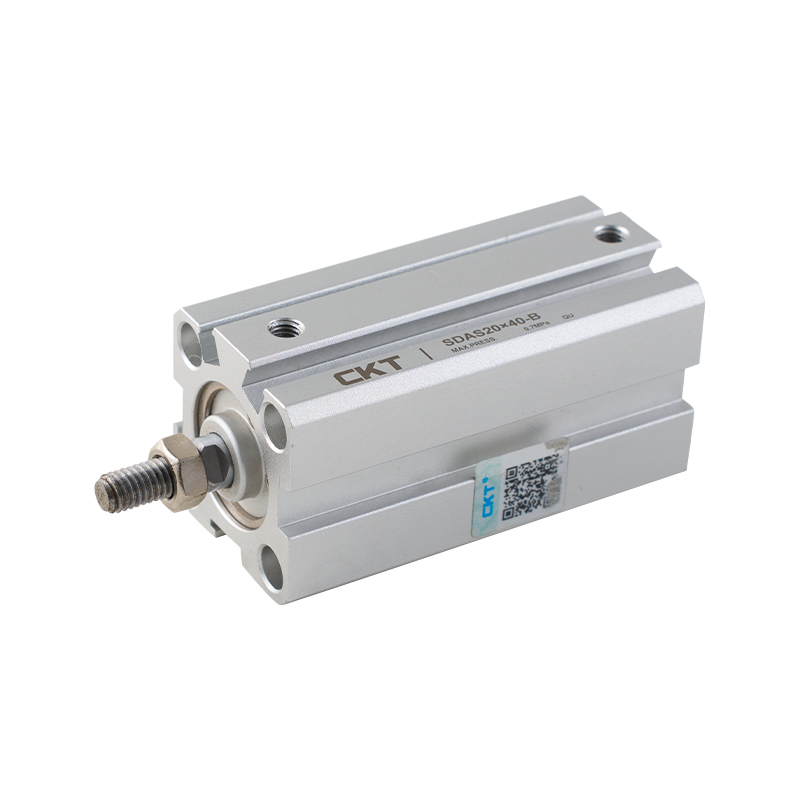

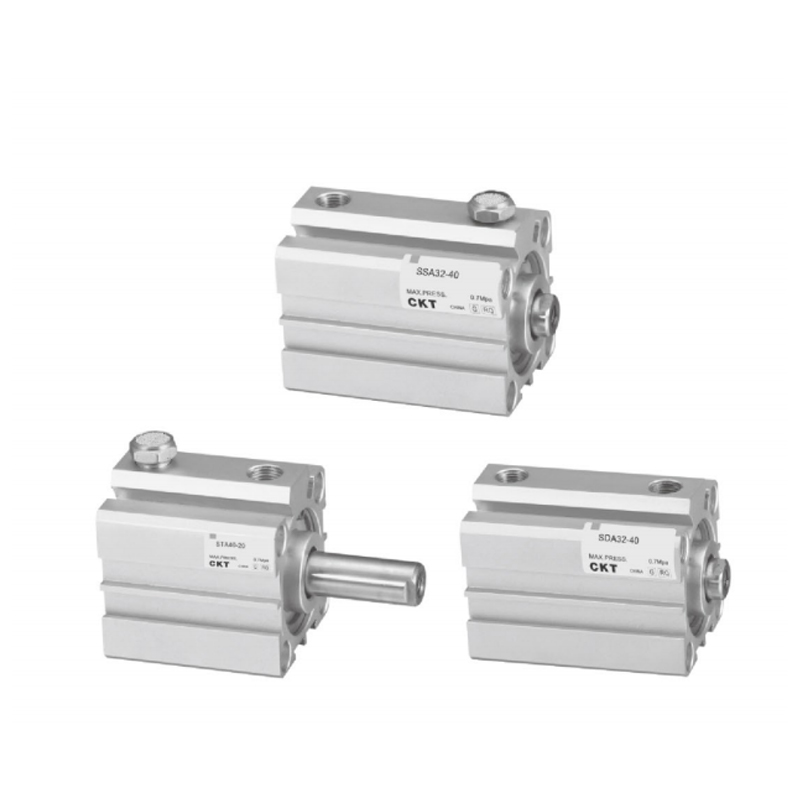

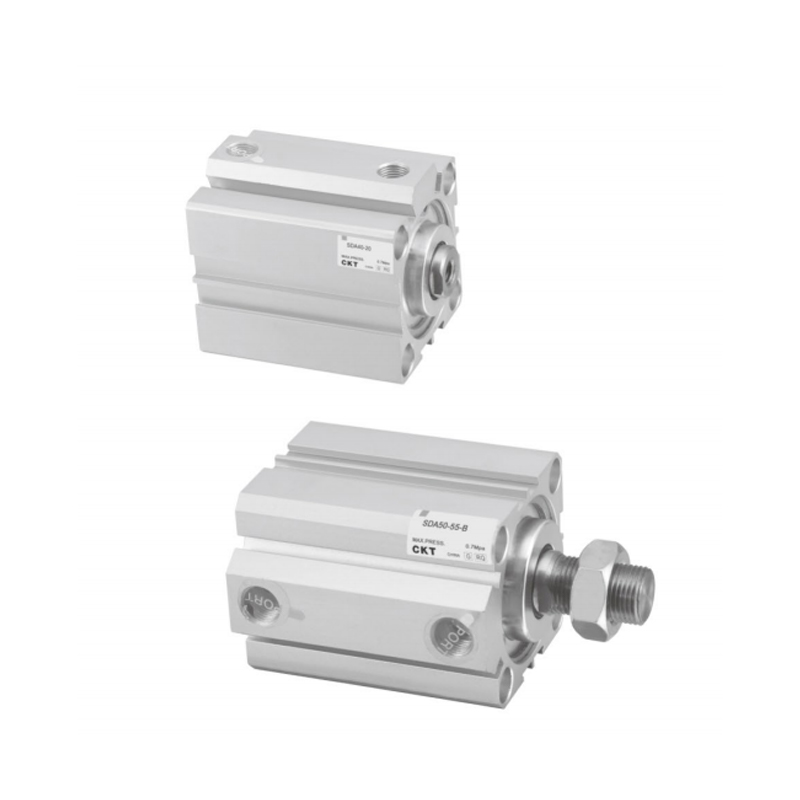

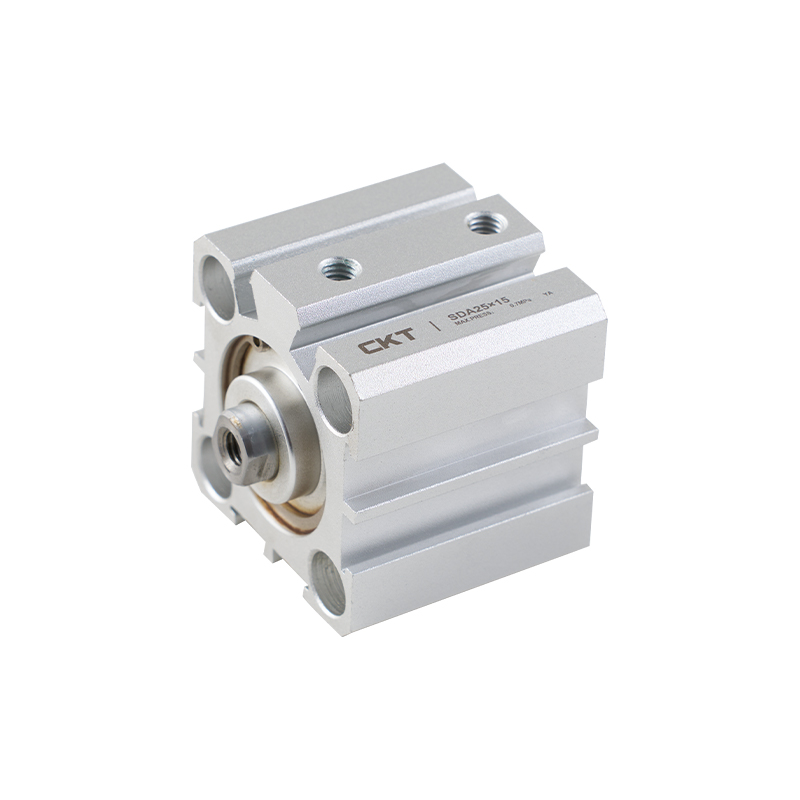

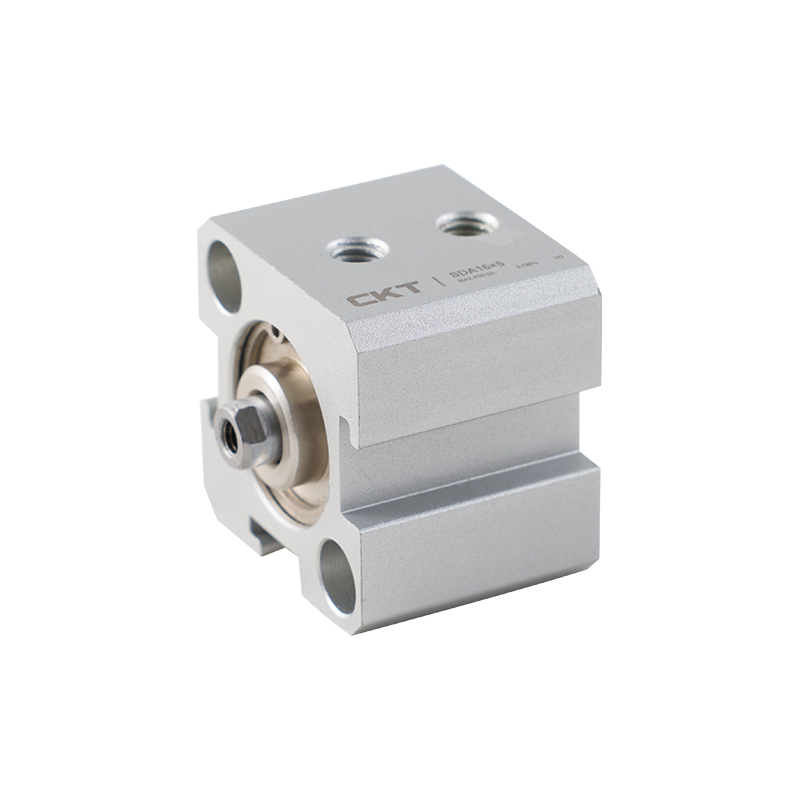

SDA Series Cylindri tenuis

Tenuis et levis
Servata exsistenti motu accuratione et vita productiva, tota eius longitudo tantum est 1/2-1/3 cylindrici generalis. Tenuis et levibus utitur.


Securus install
Modus institutionis immersus nullas accessiones requirit ad spatium requisita salvifica.


Securus ponere
Consilium simplicis conventus methodum adhibet, quae ad institutionem, discessionem et conservationem accommodata est.


Magnetic switch
Sulcus conventus in peripheria corporis reservatur, eamque simplicissimam facit ut magneticam transitum instituat et eius positionem accommodet..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：SDAD Series Thin Double-Axis Duplex-Agens Cylindri
SUCCESSIVO：CQS Series Nova Cylindri tenuis

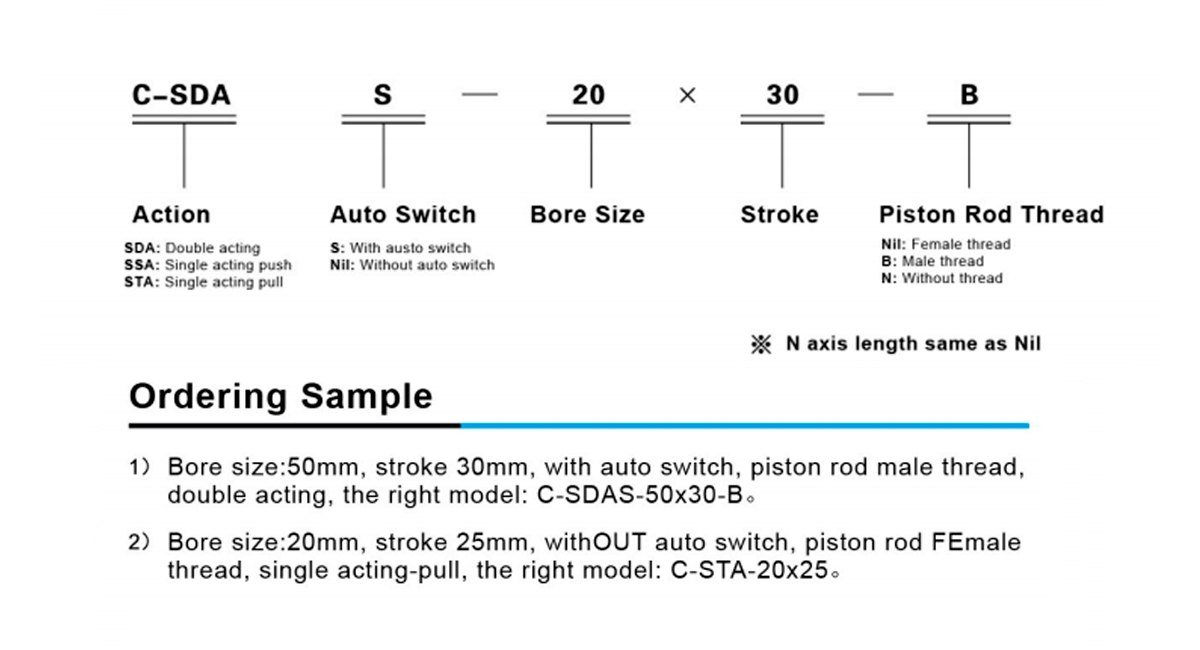

  • Portare Magnitudinem (mm) 12 16 20 25 32 40 50 63 80 100
    Actio Duplex agens
    Singulare actum-pellit                                                                               *'                                      -
    Liquor Air
    Operans
    Pressura Range
    kgf/cm²     		Duplex agens 1~9
    Unum agens 2~9 -
    Probatio  Pressura kgf/cm² 13.5
    Operans Temperature Range℃ -5~70
    Operans Speed
    Conprehendere    mm/s     		Duplex agens 30~500
    Unum agens 50~500
    Pulvinar Codex adfixum
    Portus magnitudine M5×0.8 PT1/8 PT1/4 PT3/8

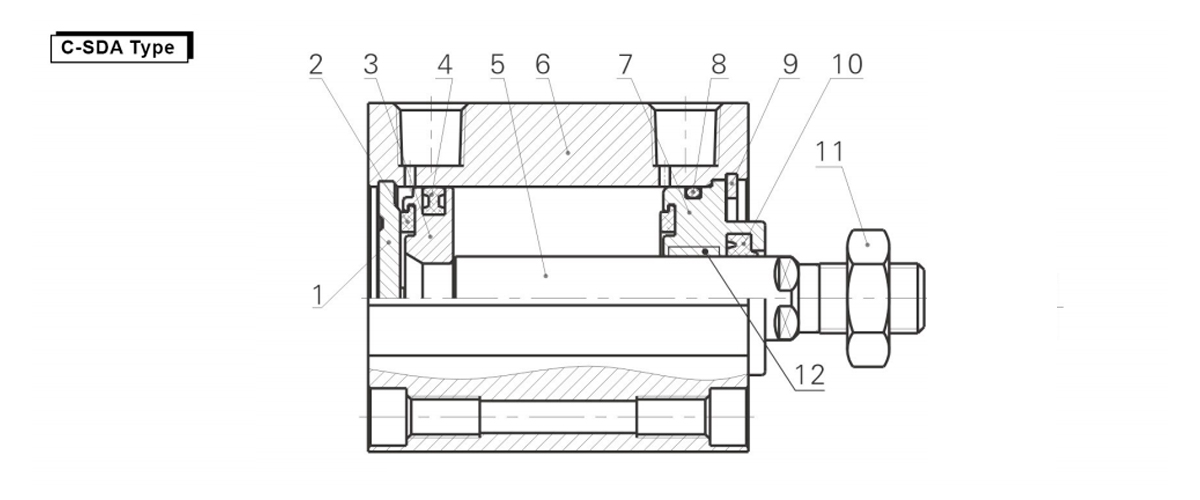

  • Item Nomen Materia Item Nomen Materia
    1 Retro operculum 6060-T5 2 Piston adfixum codex PU
    3 Piston 6061-T6 4 Duplex o genum piston NBR
    5 Piston rodam Medium caelum (Hardchrome platentem) 6 Praecipuum corpus 6063-T5
    7 Fronte operculum 60611-T6 8 Fronte operculum O ring NBR
    9 C typum insilire anulum Ver ferrum 10 Fronte operculum seal ring NBR
    11 Nuces Carbonis chalybe 12 Bushings Gere repugnans materiae

    Substitutio  Part/Sigillum  Ringo
    Item Nomen Materia Components
    12 16 Ø20 25 32 40 50 63 80 100
    9 Virga sigillum anulum NBR PDB-6 PDB-6 PDB-8 PDB-10 PDB-12 PDB-16 PDB-20 PDB-20 PDU-25 PDU-32
    10 Piston sigillum anulum APA-012 APA-016 APA-O20 APA-Q25 APA-O32 APA-O40 APA-050 APA-Q63 APA-O80 APA-100
    11 Front cover O anulum 12×1.5 16×1.5 17×1.8 22×1.8 27×1.8 36×1.8 47×1.8 59×1.8 75×1.8 95×1.8
    Exemplar sigillum anulum C-SDA12-PS C-SDA16-PS C-SDA20-PS C-SDA25-PS C-SDA32-PS C-SDA40-PS C-SDA50-PS C-SDA63-PS C-SDA80-PS C-SDA100-PS

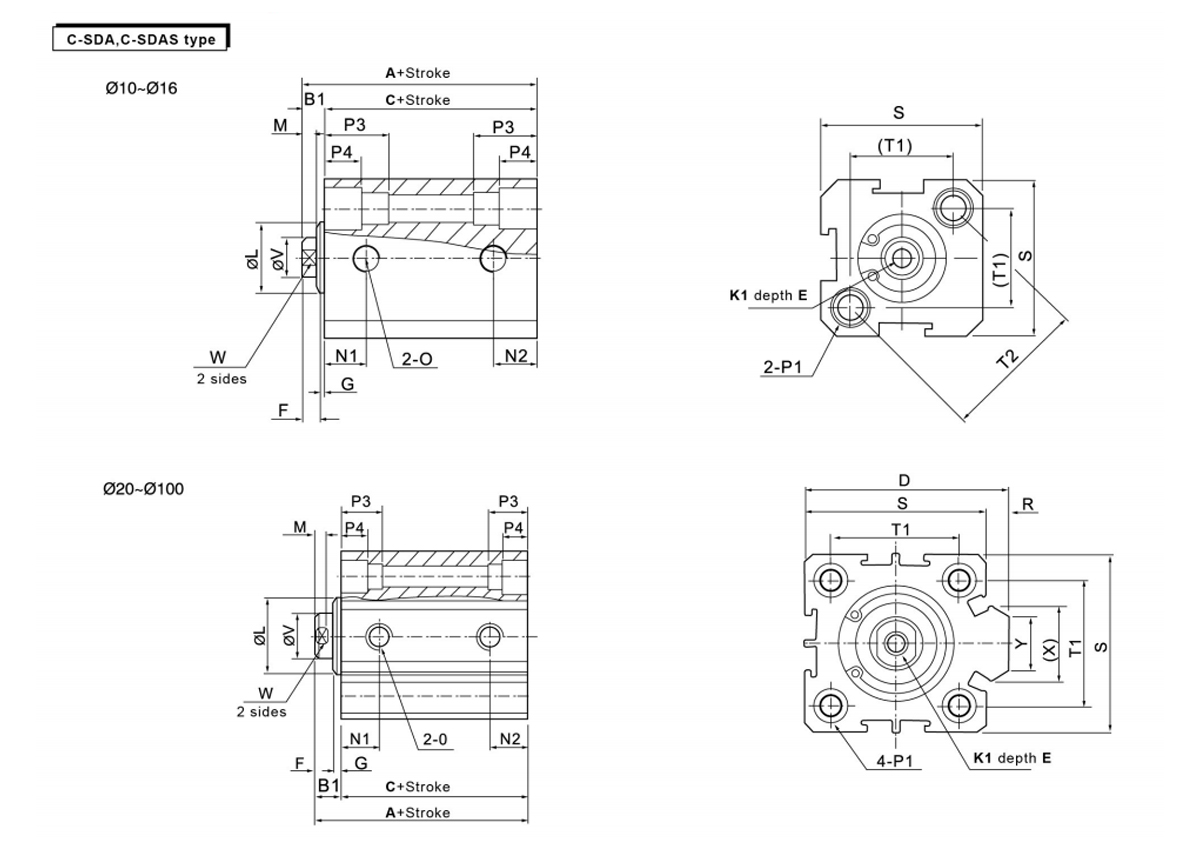

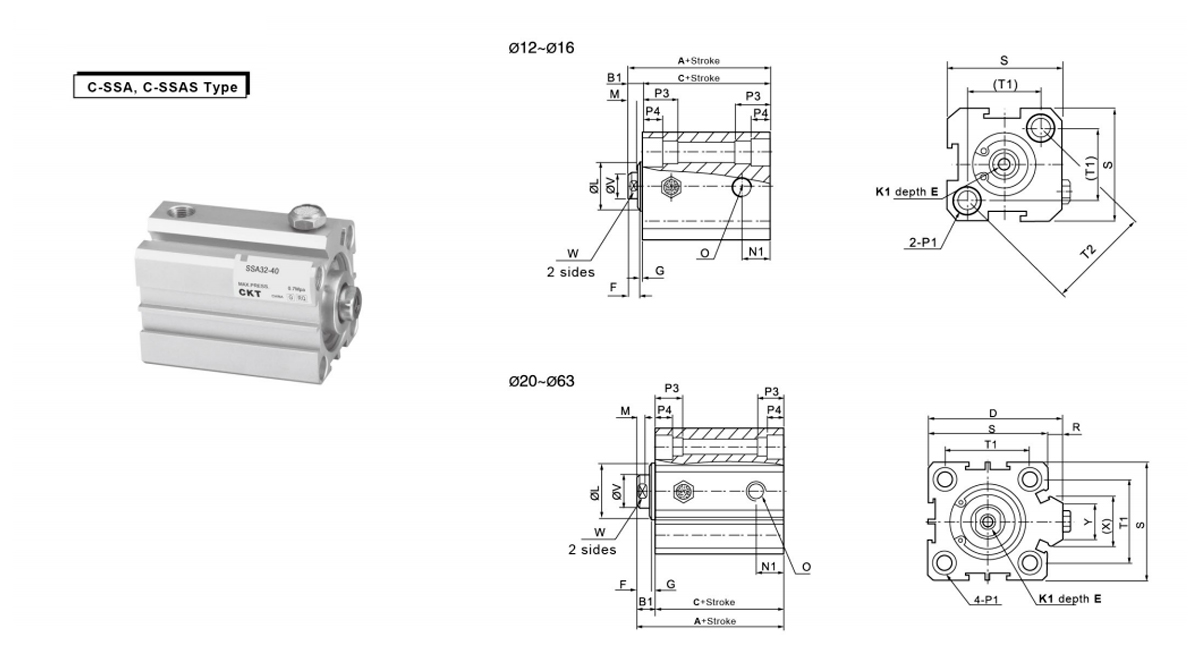

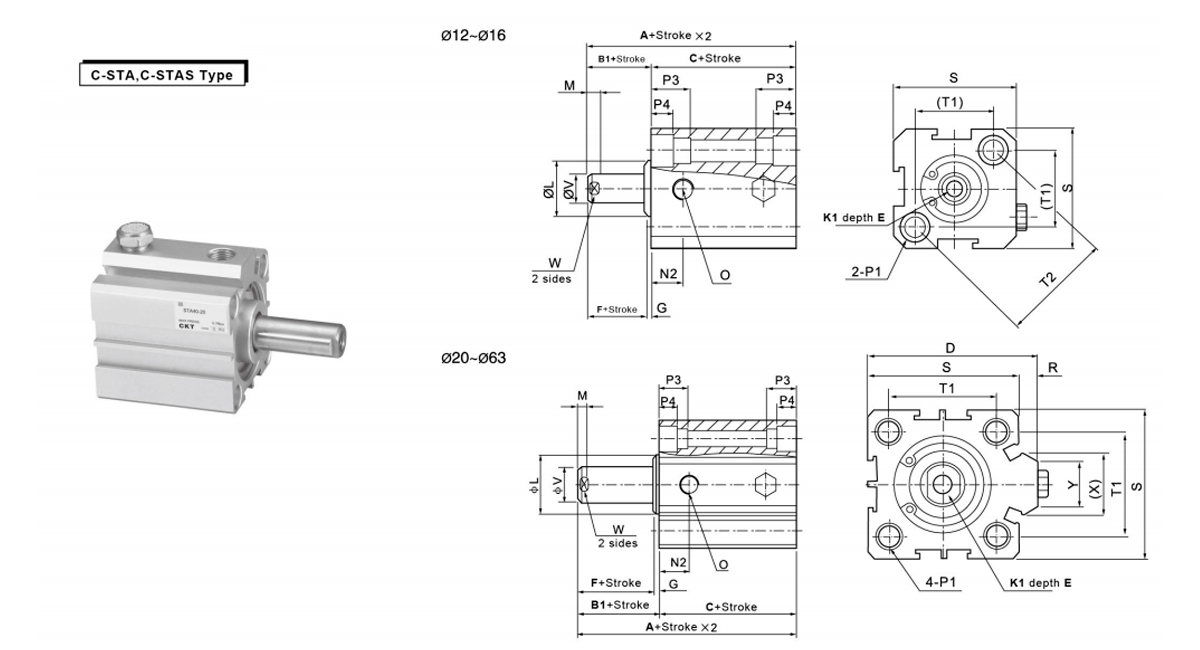

    Formaaa Standard Cum Auto Switch B1 D E F G K1 L M N1 N2
    Bore Size / ISymbol A C A C S=5 S>5 S=5 S>5
    12 22 17 32 27 5 - 6 4 1 M3×0.5 10.2 3 7.5 5
    16 24 18.5 34 28.5 5.5 - 6 4 1.5 M3×0.5 11 3 8 5.5
    20 25 19.5 35 29.5 5.5 36 8 4 1.5 M4×0.7 13 3 9 5.5
    25 27 21 37 31 6 42 10 4 2 M5×0.8 17 3 9.2 5.5
    32 31.5 24.5 41.5 34.5 7 50 12 4 3 M6×1 22 3 9 6.5 9
    40 33 26 43 36 7 58.5 12 4 3 M8×1.25 28 3 9.5 7.5
    50 37 28 47 38 9 71.5 15 5 4 M10×1.5 38 3 8 10.5 8 10.5
    63 41 32 51 42 9 84.5 15 5 4 M10×1.5 40 3 9.5 11.8 9.5 11.8
    80 52 41 62 51 11 104 20 6 5 M14×1.5 45 4 11.5 14.5 11.5 14.5
    100 63 51 73 61 12 124 20 7 5 N18×1.5 55 4 16 20.5 16 20.5

    Bore Size / ISymbol O P1 P3 P4 R S T1 T2 V W X Y
    12 M5×0.8 Utrinque:φ6.5 linum M5×0.8 per-foraminis: φ4.2 12 4.5 - 25 16.3 23 6 5 - -
    16 M5×0.8 Utrinque:φ6.5 linum M5×0.8 per-foraminis: φ4.2 12 4.5 - 29 19.8 28 6 5 - -
    20 M5×0.8 Utrinque:φ6.5 linum M5×0.8 per-foraminis: φ4.2 14 4.5 2 34 24 - 8 6 11.3 10
    25 M5×0.8 Utrinque: φ8.2 stamina M6×1.0 per foramen: φ4.6 15 5.5 2 40 28 - 10 8 12 10
    32 PT1/8 Utrinque: φ8.2 stamina M6×1.0 per foramen: φ4.6 16 5.5 6 44 34 - 12 10 18.3 15
    40 PT1/8 Utrinque: φ10 linum M8×1.25 per-foramen: φ6.5 20 7.5 6.5 52 40 - 16 14 21.3 16
    50 PT1/4 Utrimque: φ11 linum M8×1.25 per-foramen: φ6.5 25 8.5 9.5 62 48 - 20 17 30 20
    63 PT1/4 Utrimque: φ11 linum M8×1.25 per-foramen: φ6.5 25 8.5 9.5 75 60 - 20 17 28.7 20
    80 PT3/8 Utrinque: φ14 linum M12×1.75 per-foramen: φ9.2 25 10.5 10 94 74 - 25 22 36 26
    100 PT3/8 Utrimque: φ17.5 stamina M14x2 per-foraminis: φ11.3 30 13 10 114 90 - 32 27 35 260

    Formaaa Sine Auto Switch Cum Auto Switch B1 D E F G K1 L M N1
    Bore Size / ISymbol A C A C
    ≤10 >10 ≤10 >10 ≤10 >10 ≤10 >10
    12 32 42 27 37 42 52 37 47 5 - 6 4 1 M3×0.5 10.2 3 5
    16 34 44 28.5 38.5 44 54 38.5 48.5 5.5 - 6 4 1.5 M3×0.5 11 3 5.5
    20 35 45 29.5 39.5 45 55 39.5 49.5 5.5 36 8 4 1.5 M4×0.7 13 3 5.5
    25 37 47 31 41 47 57 41 51 6 42 10 4 2 M5×0.8 17 3 5.5
    32 41.5 51.5 34.5 44.5 51.5 61.5 44.5 54.5 7 50 12 4 3 M6×1 22 3 9
    40 43 53 36 46 53 63 46 56 7 58.5 12 4 3 M8×1.25 28 3 7.5
    50 47 57 38 48 57 67 48 58 9 71.5 15 5 4 M10×1.5 38 3 10.5
    63 51 61 42 52 61 71 52 62 9 84.5 15 5 4 M10×1.5 40 3 11

    Bore Size / ISymbol O P1 P3 P4 R S T1 T2 V W X Y
    12 M5×0.8 Utraque: φ6.5  stadium M5×0.8  per foramen: φ4.2 12 4.5 - 25 16.2 23 6 5 - -
    16 M5×0.8 Utraque: φ6.5  stadium M5×0.8  per foramen: φ4.2 12 4.5 - 29 19.8 28 6 5 - -
    20 M5×0.8 Utraque: φ6.5  stadium M5×0.8  per foramen: φ4.2 14 4.5 2 34 24 - 8 6 11.3 10
    25 M5×0.8 Utrunque: φ8.2  filam  M6×1.0  per foraminis: φ4.6 15 5.5 2 40 28 - 10 8 12 10
    32 PT1/8 Utrunque: φ8.2  filam  M6×1.0  per foraminis: φ4.6 16 5.5 6 44 34 - 12 10 18.3 15
    40 PT1/8 Utrunque: φ10 filam M8×1.25 per foraminis: φ6.5 20 7.5 6.5 52 40 - 16 14 21.3 16
    50 PT1/4 Utraque: φ11 filam M8×1.25 per foraminis: φ6.5 25 8.5 9.5 62 48 - 20 17 30 20
    63 PT1/4 Utraque: φ11 filam M8×1.25 per foraminis: φ6.5 25 8.5 9.5 75 60 - 20 17 28.7 20

    Formaaa Sine Auto Switch Cum Auto Switch B1 D E F G K1 L M N2
    Bore Size / ISymbol A C A C
    Plaga ≤10 >10 ≤10 >10 ≤10 >10 ≤10 >10
    12 32 42 27 37 42 52 37 47 5 6 4 1 M3×0.5 10.2 3 7.5
    16 34 44 28.5 38.5 44 54 38.5 48.5 5.5
    -     		6 4 1.5 M3×0.5 11 3 8
    20 35 45 29.5 39.5 45 55 39.5 49.5 5.5 36 8 4 1.5 M4×0.7 13 3 9
    25 37 47 31 41 47 57 41 51 6 42 10 4 2 M5×0.8 17 3 9.2
    32 41.5 51.5 34.5 44.5 51.5 61.5 44.5 54.5 7 50 12 4 3 M6×1 22 3 9
    40 43 53 36 46 53 63 46 56 7 58.5 12 4 3 M8×1.25 28 3 9.5
    50 47 57 38 48 57 67 48 58 9 71.5 15 5 4 M10×1.5 38 3 10.5
    63 51 61 42 52 61 71 52 62 9 84.5 15 5 4 M10×1.5 40 3 12
    Bore Size / ISymbol O P1 P3 P4 R S T1 T2 V W X Y
    12 M5×0.8 Utrinque:φ6.5 linum M5×0.8 per-foraminis: φ4.2 12 4.5
    -     		25 16.2 23 6 5
    -
    16 M5×0.8 Utrinque:φ6.5 linum M5×0.8 per-foraminis: φ4.2 12 4.5 - 29 19.8 28 6 5 -
    -
    20 M5×0.8 Utrinque:φ6.5 linum M5×0.8 per-foraminis: φ4.2 14 4.5 2 34 24 - 8 6 11.3 10
    25 M5×0.8 Utrinque: φ8.2 stamina M6×1.0 per foramen: φ4.6 15 5.5 2 40 28 - 10 8 12 10
    32 PT1/8 Utrinque: φ8.2 stamina M6×1.0 per foramen: φ4.6 16 5.5 6 44 34 12 10 18.3 15
    40 PT1/8 Utrinque: φ10 linum M8×1.25 per-foramen: φ6.5 20 7.5 6.5 52 40 16 14 21.3 16
    50 PT1/4 Utrimque: φ11 linum M8×1.25 per-foramen: φ6.5 25 8.5 9.5 62 48 - 20 17 30 20
    63 PT1/4 Utrimque: φ11 linum M8×1.25 per-foramen: φ6.5 25 8.5 9.5 75 60 20 17 28.7 20

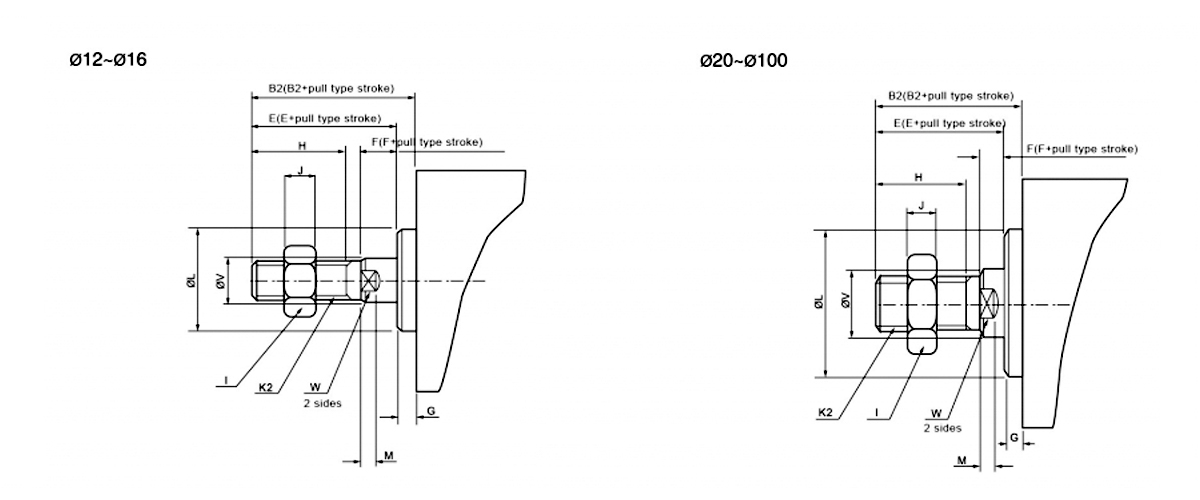

    Bore Size / ISymbol B2 E F G 2 I J K2 L M V W
    12 17 16 4 1 10 8 4 M5×0.8 10.2 3 6 5
    16 17.5 16 4 1.5 10 8 4 M5×0.8 11 3 6 5
    20 20.5 19 4 1.5 13 10 5 M6×1.0 13 3 8 6
    25 23 21 4 2 15 12 6 M8×1.25 17 3 10 8
    32 25 22 4 3 15 17 6 M10×1.25 22 3 12 10
    40 35 32 4 3 25 19 8 M14×1.5 28 3 16 14
    50 37 33 5 4 25 27 11 M18×1.5 38 3 20 17
    63 37 33 5 4 25 27 11 M18×1.5 40 3 20 17
    80 44 39 6 5 30 32 13 M22×1.5 45 4 25 22
    100 50 45 7 5 35 36 13 M26×1.5 55 4 32 27
